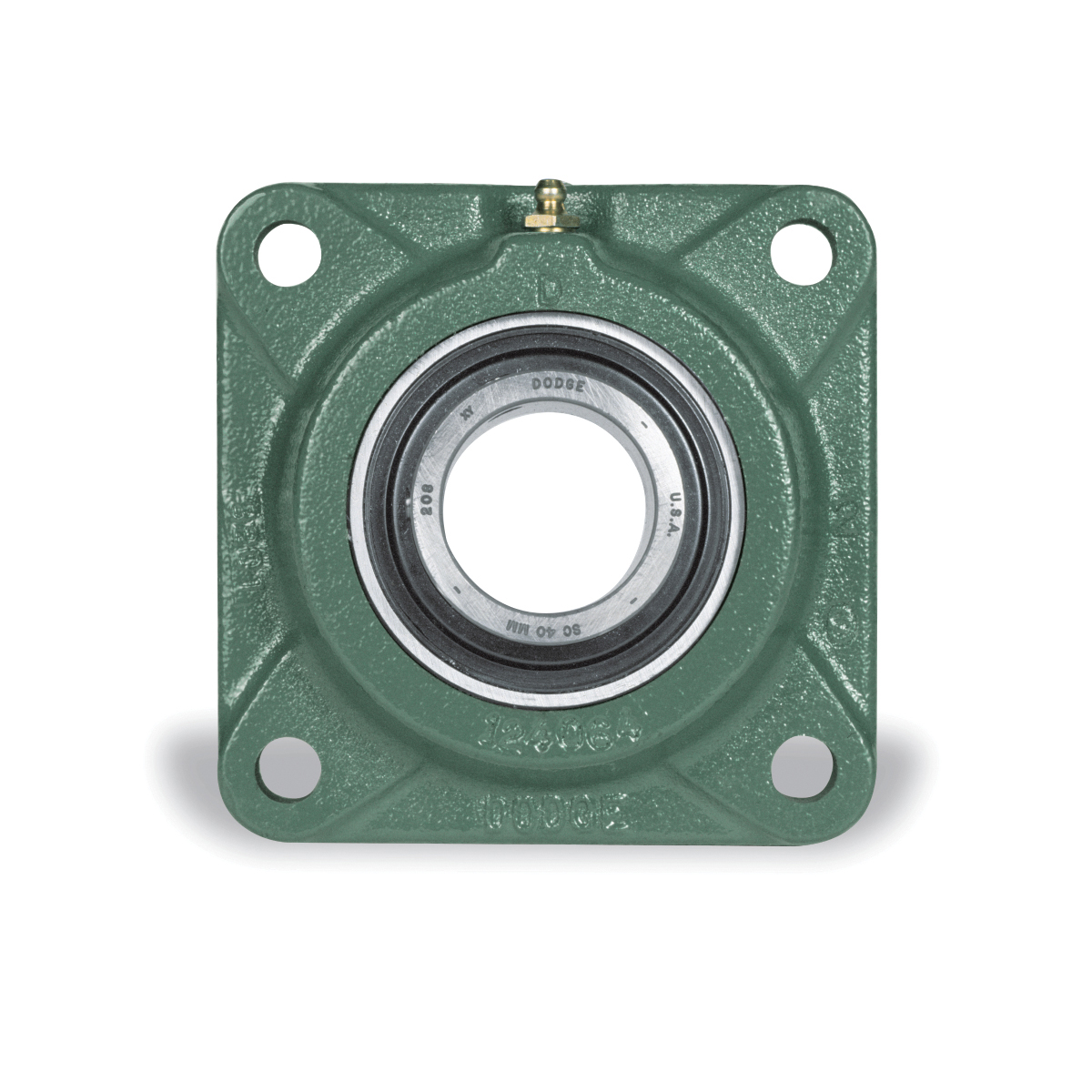

Dodge® 126116 214 Medium Duty Non-Expansion Ball Bearing Unit With Flingers, 2-7/16 in Dia Bore, 5.88 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 7.38 in OAL/Dia
A set screw shaft attachment method is the most common means of securing a mounted ball bearing to a shaft and also the easiest to install. The Dodge® mounted ball bearing offering is engineered with a 65 deg set screw angle. This ensures the maximum grip onto the shaft, especially when using premium cup point set screws with the high quality manufacturing of the Dodge® insert.
-
BrandDodge®
-
UPC782475698370
-
Manufacturer Part Number126116
-
CountryUSA
-
Load Capacity13995 lb Dynamic/9838 lb Static
-
Locking Device65 deg Set Screw
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed3000 rpm
-
TypeMedium Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
Series214
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.88 in
-
Bore Diameter2-7/16 in
-
Overall Depth2.78 in
-
Overall Height7.38 in
-
Overall Length/Diameter7.38 in
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
- Unique 65 deg setscrew angle and premium cup point set screws optimize shaft holding power without excessive inner ring distortion
- Stronger and flexible ball cage
- Simplified anti-rotation device
- Patented DualGuard™ seal
- Wide inner ring design
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00563688 |
-
Alternative Part NumberF4B-SCM-207-FF
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
