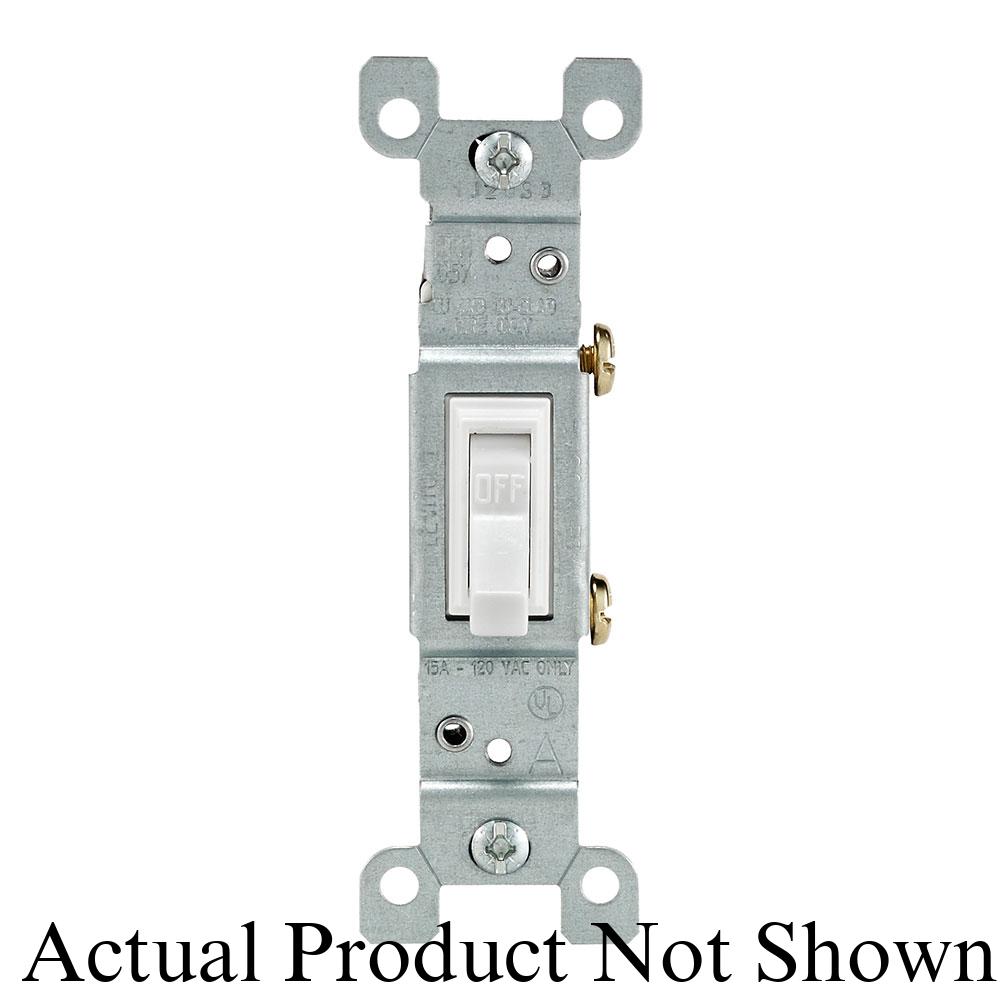

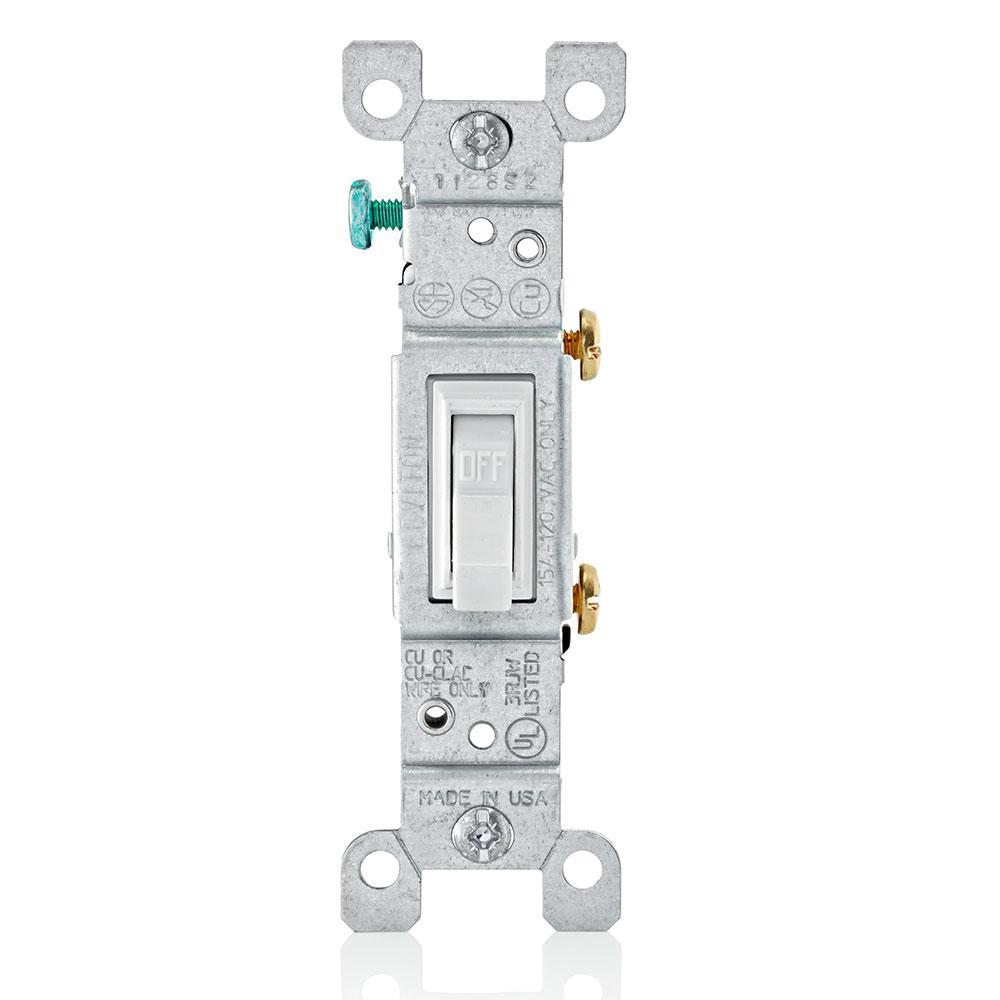

Leviton® 1451-2W Grounding Toggle Switch, 120 V AC, 15 A, 1/2, 2 hp Power Rating
Tried-and-true toggle designs, Leviton® residential grade AC quiet switches cover all the bases, they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact resistant thermoplastic and they feature large head, hardened triple drive screws for easy installation. Leviton® traditional switches are compatible with a wide range of Leviton® plastic and metal wallplates.
-
BrandLeviton®
-
UPC078477778203
-
Manufacturer Part Number1451-2W
-
CountryUSA|Canada
-
Terminal TypeSide and Push-In Wired
-
MaterialThermoplastic
-
Power Rating1/2, 2 hp
-
ColorWhite
-
TypeGrounding
-
MountingSurface
-
Contact ConfigurationSP
-
ActuatorCam
-
Voltage Rating120 V AC
-
Amperage Rating15 A
-
Series1451
-
Number of Poles1
-

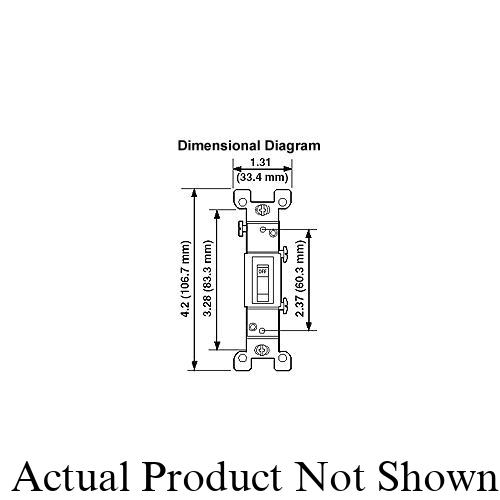

Dimensions4.2 in H x 1.31 in W x 11 in D
-
Environmental Conditions-40 to 65 deg C Operating Temperature
-
Contact Rating1/2 hp at 120 V AC, 2 hp at 240 V AC
- Faster installation with combination of side wiring and quick wire push-in wiring
- Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
- Impact resistant, durable thermoplastic toggle and frame
- Quick wire push-in terminals accept no 14 AWG solid copper wire only
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Durable thermoplastic toggle and frame
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25MM03 |
| 518328 |
-
Alternative Part Number7322275
-
UNSPSC39122211
-
IDEA Index ID7322275
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E7458|UL94 V-2 Flammability Rating|CSA File No. LR3413|NOM 057
-
Warranty2 years Limited
-
Specification Sheet
-
Instruction/Installation Manual
