SELECTA® SS208B-BG Heavy Duty Toggle Switch, 125 V AC, 15 A, 3/4 hp, DPDT
SELECTA® SS208B-BG Heavy Duty Toggle Switch, 125 VAC, 15 A, 3/4 hp, DPDT
-
BrandSELECTA®
-
UPC661191109400
-
Manufacturer Part NumberSS208B-BG
-
CountryUSA
-
Terminal TypeScrew
-
Power Rating3/4 hp
-
TypeHeavy Duty
-
MountingThreaded
-
Contact ConfigurationDPDT
-
ActuatorBat Handle
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Number of Poles2
-

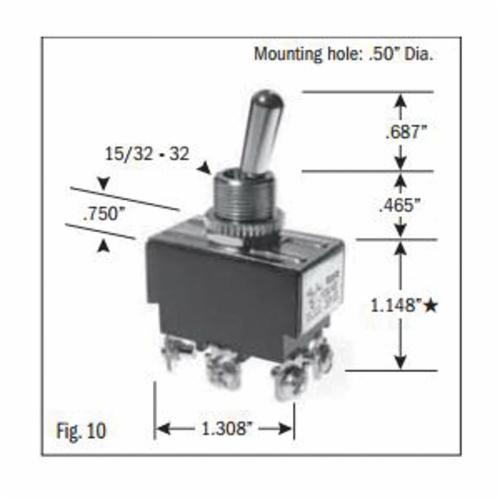

Dimensions1.3 in L x 0.75 in W x 2.34 in H
- Brass/Nickel actuator
- 1/2 in hole mounting
- 15/32 in dia bushing
- ON/OFF/ON (momentary/maintained/maintained)
- 0.46 in Dia
-
UNSPSC39121507
-
Standards/ApprovalsUR Listed
