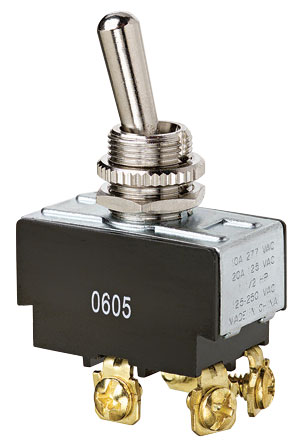

BUCHANAN 774014 Heavy Duty Toggle Switch, 125/227 V AC, 20/10 A, 1-1/2 hp Power Rating, On-Off DPST Contact
BUCHANAN 774014 Heavy Duty Toggle Switch, 125/227 VAC, 20/10 A, 1-1/2 hp Power Rating, DPST ON-OFF Contact
-
BrandBUCHANAN
-
UPC781789740140
-
Manufacturer Part Number774014
-
CountryUSA
-
MaterialSolid Brass
-
Contact ConfigurationOn-Off DPST
-
Contact RatingFactory Tested 100000 Cycles to 21 A 14.8 VDC
-
ActuatorToggle
-
Amperage Rating20/10 A
-
Dimensions1.3 in L x 0.76 in W x 0.8 in H
-
Environmental Conditions32 to 185 deg F Operating Temperature
-
Terminal TypeScrew
-
Power Rating1-1/2 hp
-
TypeHeavy Duty
-
Voltage Rating125/227 V AC
-
Number of Poles2
-
Operating Cycles100000 Cycles
- Rugged long wearing solid brass/nickel plated bushings
- 1/2 in diameter mounting hole
- Dielectric Strength - 1500V
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 24Z915 |
| Grainger | 24Z915 |
-
Alternative Part Number8305747
-
UNSPSC39122211
-
IDEA Index ID8305747
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|CSA Certified|UL Recognized
-
RoHS
