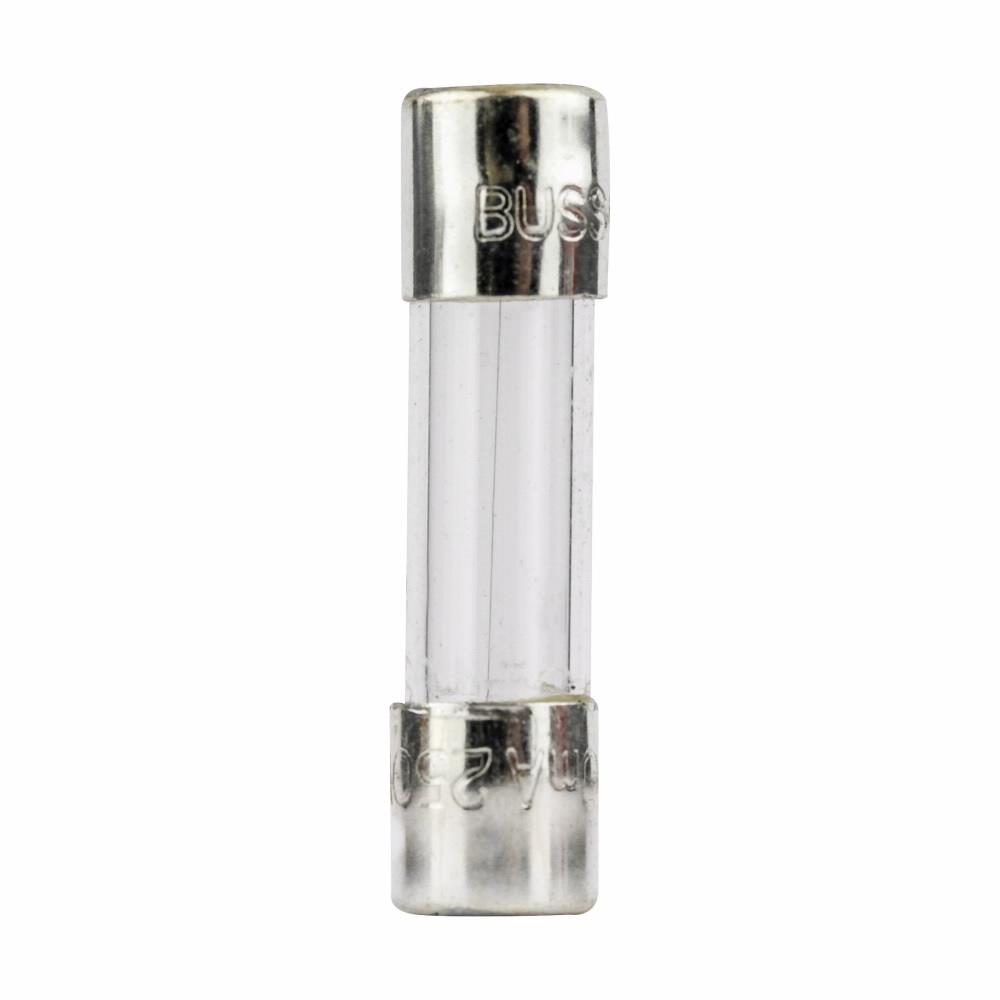

Edison S500-2-R Fast Acting Fuse, 2 A, 250 V AC, 35 A Interrupt, Cylindrical Body
Edison S500-2-R Fast Acting Fuse, 2 A, 250 VAC, 35 A Interrupt, Cylindrical Body
-
BrandEdison
-
UPC051712644112
-
Manufacturer Part NumberS500-2-R
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialGlass
-
Frequency Rating50 Hz
-
Rejection/Non-RejectionNon-Rejection
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating2 A
-
SeriesS500
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating35 A
-
Body Size5.2 mm Dia x 20 mm L
-
Body TypeCylindrical
-
ElementSingle
- Fast acting for maximum protection
- Low breaking capacity
- Glass tube with nickel plated endcaps
-
Alternative Part Number9527271
-
UNSPSC39121609
-
IDEA Index ID9527271
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|cURus File No. E19180, Guide JDYX2, JDYX8|CSA File No. 1803366|SEMKO File No. 913796|VDE File No. 40014109|BSI File No. KM55676|IMQ File No. CA03.00097|CCC File No. 2005010207155694|PSE File No. JET1641-31003-1013, JET1641-31003-1014, JET1641-31003-1015, JET1641-31003-1016|IEC 60127-2
