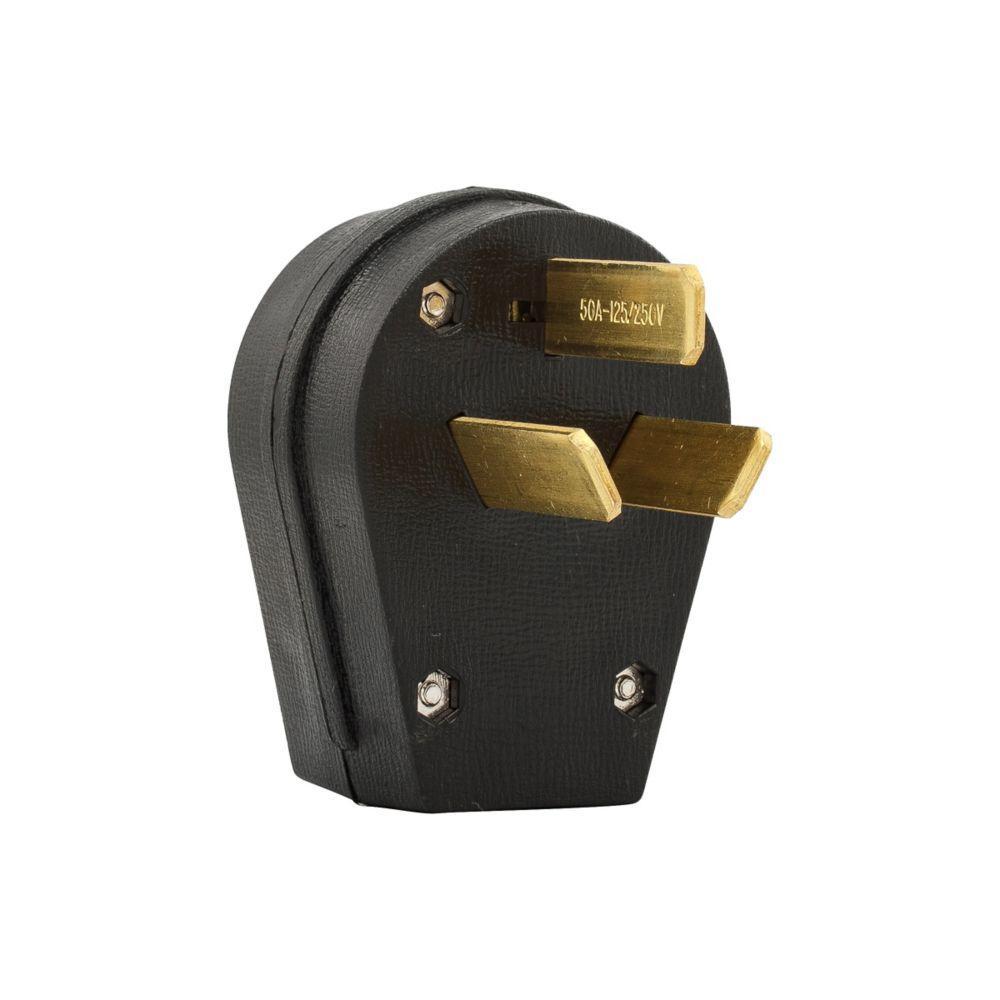

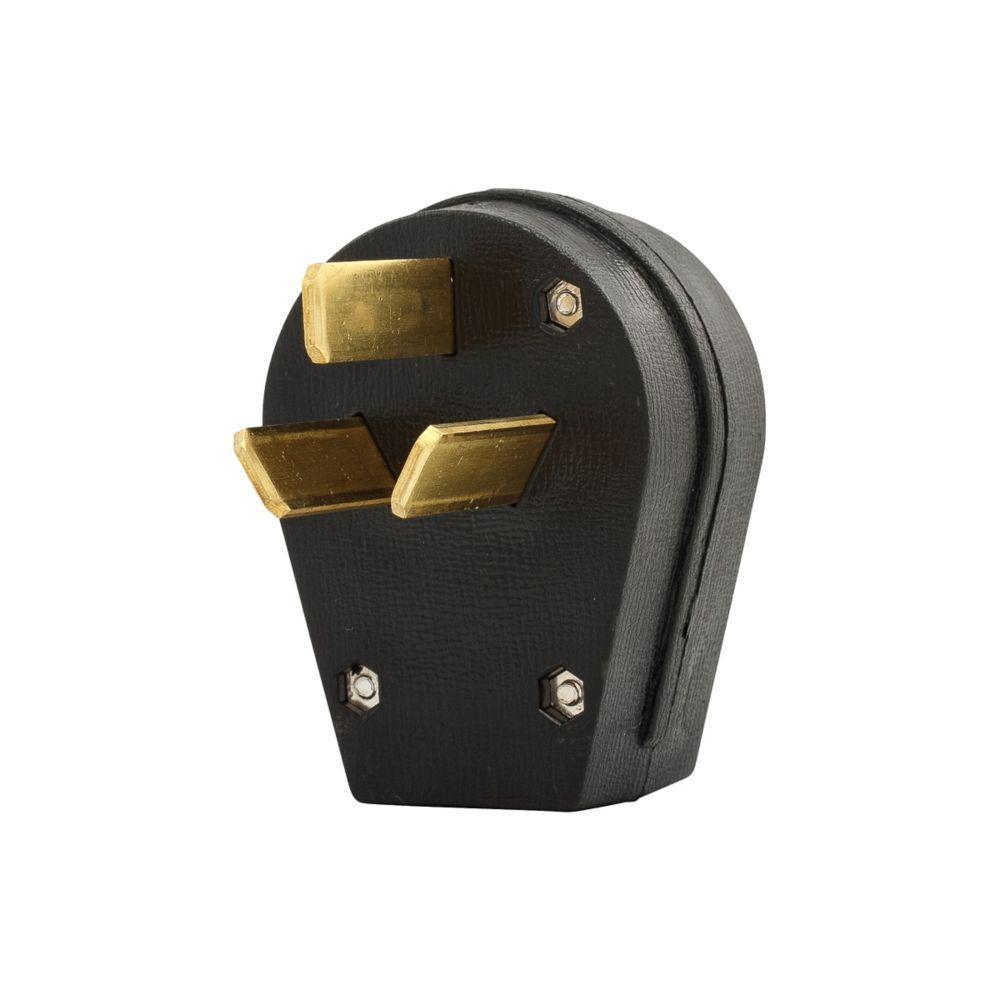

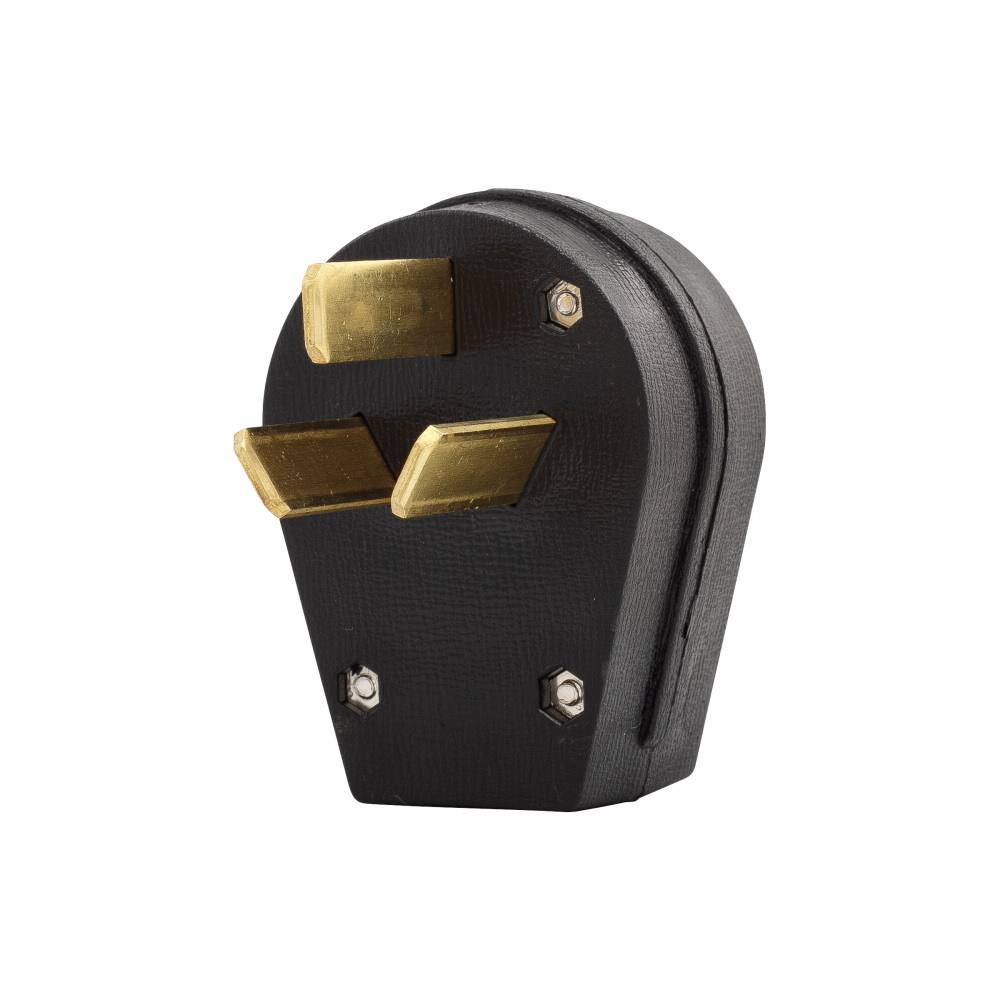

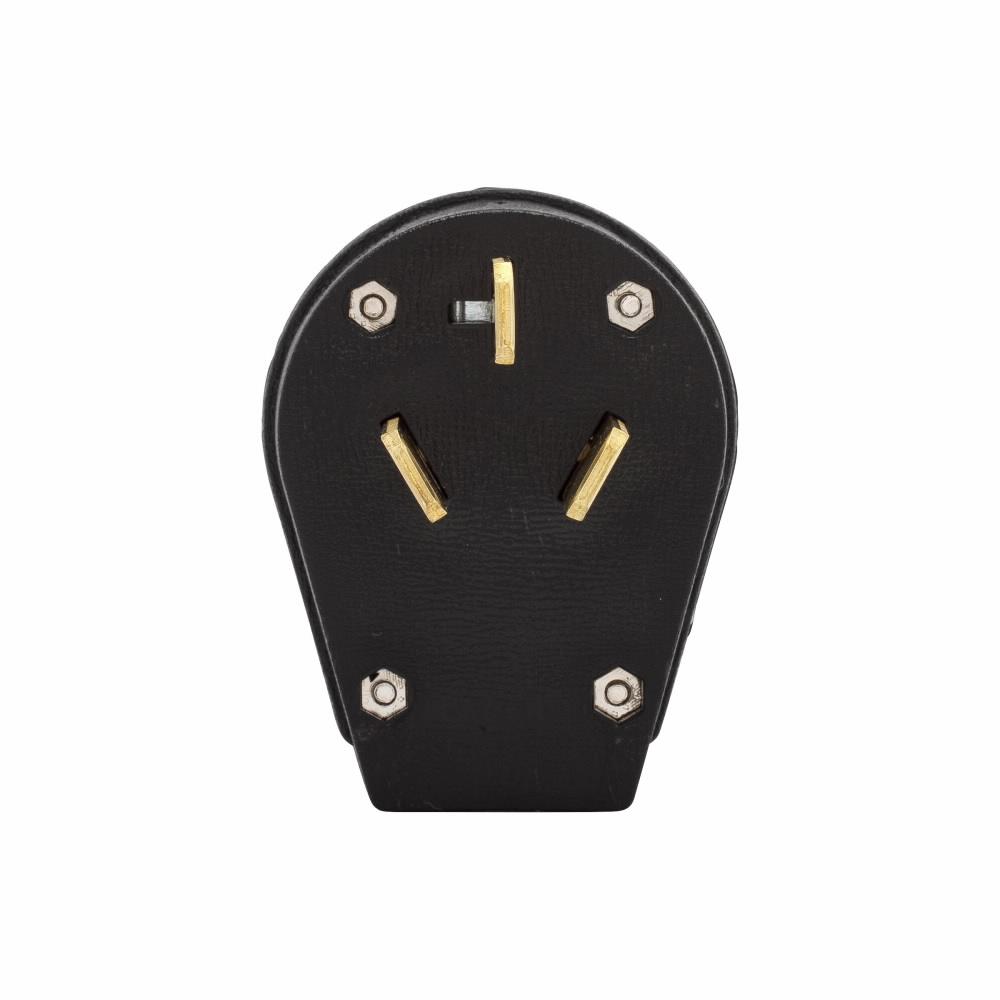

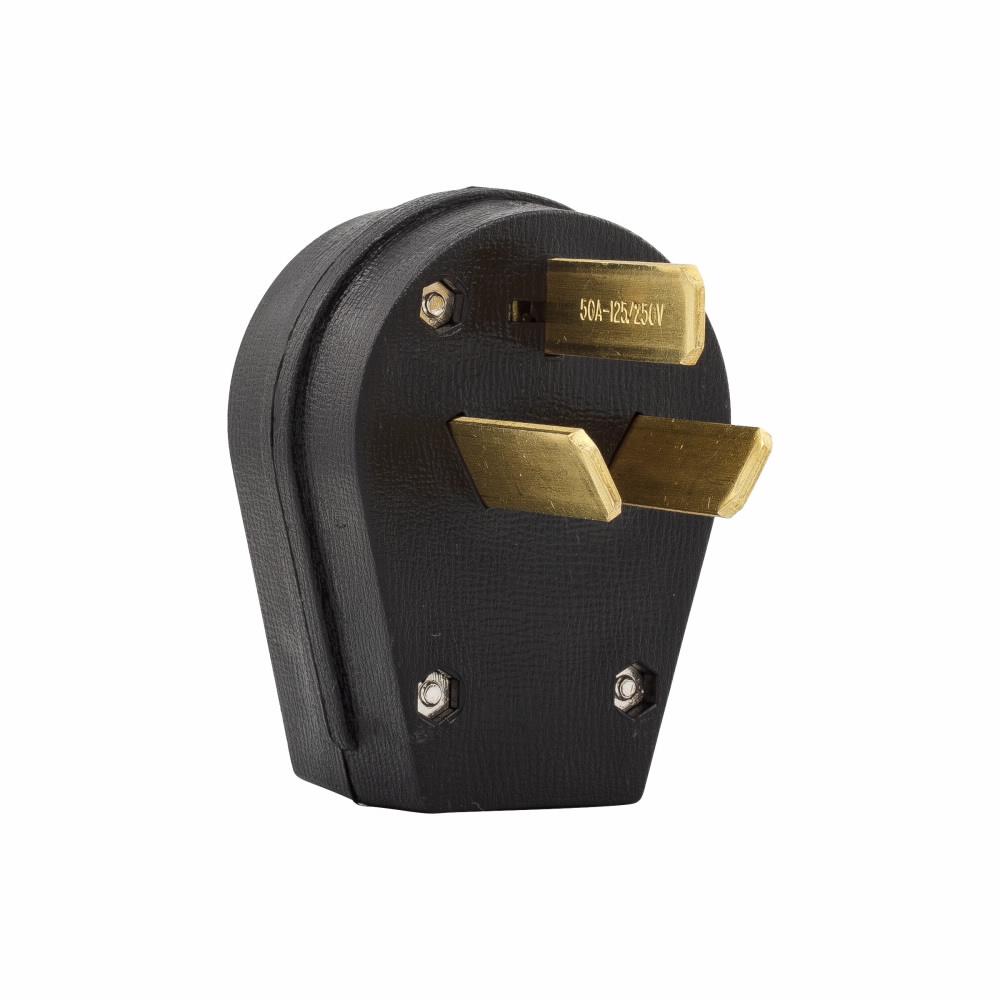

EATON Arrow Hartā¢ Eaton Wiring Devices S80-SP Angled Non-Grounding Universal Straight Blade Plug, 125/250 V AC, 30/50 A, 3 Poles, 3 Wires, Black
Commercial grade power plugs 3-pole, 3-wire dual current model furnished with blades for 30 or 50 A applications. Terminals have pressure plates to protect wires. made from abuse-resistant thermoplastic.
-
BrandEATON
-
UPC032664517853
-
Manufacturer Part NumberS80-SP
-
CountryUSA
-
Temperature Rating-20 to 75 deg C
-
MaterialThermoplastic
-
ColorBlack
-
TypeAngled Non-Grounding Universal
-
GradeCommercial
-
NEMA RatingNEMA 10-30P/10-50P
-
Voltage Rating125/250 V AC
-
Cord Diameter0.8 in
-
Amperage Rating30/50 A
-
Number of Poles3
-
Dimensions2.92 in H x 2.8 in W
-
Number of Wires3
-
Terminal TypeBacked-Out/Deep Slotted
-
EnclosureNEMA WD-6
- For replacement use in newer homes with 4-wire range and dryer connection points
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- 10 to 8 AWG wire
- Abuse-resistant thermoplastic construction
- Built-in rejection feature prevents closure if blades are incorrectly positioned
- Wiring stripping gauge molded into plug cover
- Zinc plated steel assembly screws and solid brass blade and contacts
- 14 to 6 AWG terminal accommodation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 792TD7 |
-
Alternative Part Number9593379
-
UNSPSC39121402
-
IDEA Index ID9593379
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty2 years
-
Catalog
-
Specification Sheet
-
Owners/User Manual
