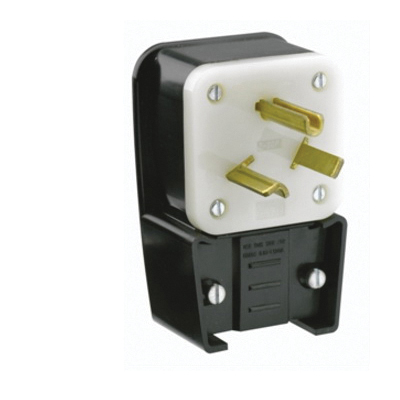

Leviton® 9730-P Grounding Matching Angled Straight Blade Plug, 277 V AC, 30 A, 2 Poles, 3 Wires, Black
Leviton® 9730-P Grounding Matching Angled Straight Blade Plug, 277 VAC, 30 A, 2 Poles, 3 Wires, Black
-
BrandLeviton®
-
UPC078477809914
-
Manufacturer Part Number9730-P
-
CountryUSA
-
Temperature Rating-40 to 60 deg F
-
Terminal TypeThreaded
-
MaterialSuper Tough Nylon
-
ColorBlack
-
TypeGrounding Matching Angled
-
GradeIndustrial
-
NEMA RatingNEMA 7-30R
-
Voltage Rating277 V AC
-
Cord Diameter5/8 to 1-5/8 in
-
Amperage Rating30 A
-
Horsepower3 hp
-
Number of Poles2
-
Number of Wires3
- Withstands 2000 V dielectric
- Full rated current
- Maximum 30 cycles after 50 cycles OL at 150% rated current
- Brass hot, green ground, silver neutral terminal ID
- Accommodates up to 4 AWG terminals
- Ratings are permanently marked on device
- 10 to 4 AWG wire
- Solid brass blades
- Steel, zinc plated assembly screws
- Side wired
- Steel strap
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LV47 |
-
UNSPSC39121402
-
Standards/ApprovalsANSI C-73|CSA C22.2 NO 42 152105|NOM 057|NEMA WD-6, UL498 E13399
-
Warranty10 Years Limited
