PLUG ANGLE BL STR 125/250VAC 30/50A 3 3

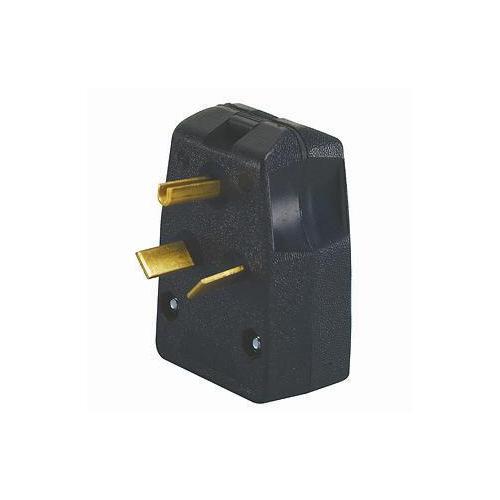

Leviton® 287-E Non-Grounding Straight Blade Angle Plug, 125/250 VAC, 30/50 A, 3 Poles, 3 Wires, Black
-
BrandLeviton®
-
UPC078477644935
-
Manufacturer Part Number287-E
-
CountryUSA
-
Temperature Rating-40 to 60 deg F
-
Terminal TypeBacked-Out/Deep Slotted
-
MaterialThermoplastic
-
ColorBlack
-
TypeNon-Grounding
-
GradeCommercial
-
NEMA Rating10-30P/10-50P
-
Voltage Rating125/250 VAC
-
Cord Diameter0.687 to 1.05 in
-
Amperage Rating30/50 A
-
Number of Poles3
-
Dimensions3.49 in L x 2.56 in W
-
Number of Wires3
-
EnclosureNEMA WD-6
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 792TD7 |
| 522401 |
-
Alternative Part Number15900028
-
UNSPSC39121402
-
IDEA Index ID15900028
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File LR-406|NOM 057|UL 498 File No. E13393/94
-
Warranty2 years
-
Instruction/Installation Manual
