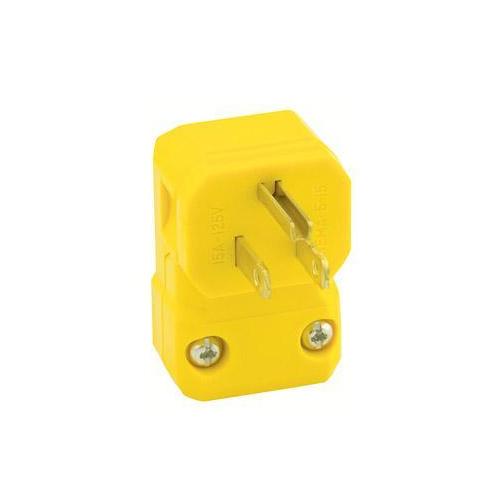

Leviton® 5256-VA Angled Cable Mount Grounding High Visibility Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® industrial grade straight blade devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of straight blade devices of unmatched flexibility and dependability.
-
BrandLeviton®
-
UPC078477055168
-
Manufacturer Part Number5256-VA
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorYellow
-
TypeAngled Cable Mount Grounding High Visibility
-
GradeIndustrial
-
NEMA RatingNEMA 5-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.655 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions2.17 in H x 1.21 in W x 1.41 in D
-
Number of Wires3
- Hinged design for fast, easy, installation and assembly
- Super tough high impact nylon body
- Triple drive standard screws for easy wiring
- Clear thermoplastic back cover for easy visual inspection of wiring
- 18 to 10 AWG terminal accommodation
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Features hinged design for fast, easy, installation and assembly
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25KT43 |
-
Alternative Part Number7333153
-
UNSPSC39121402
-
IDEA Index ID7333153
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
RoHS
