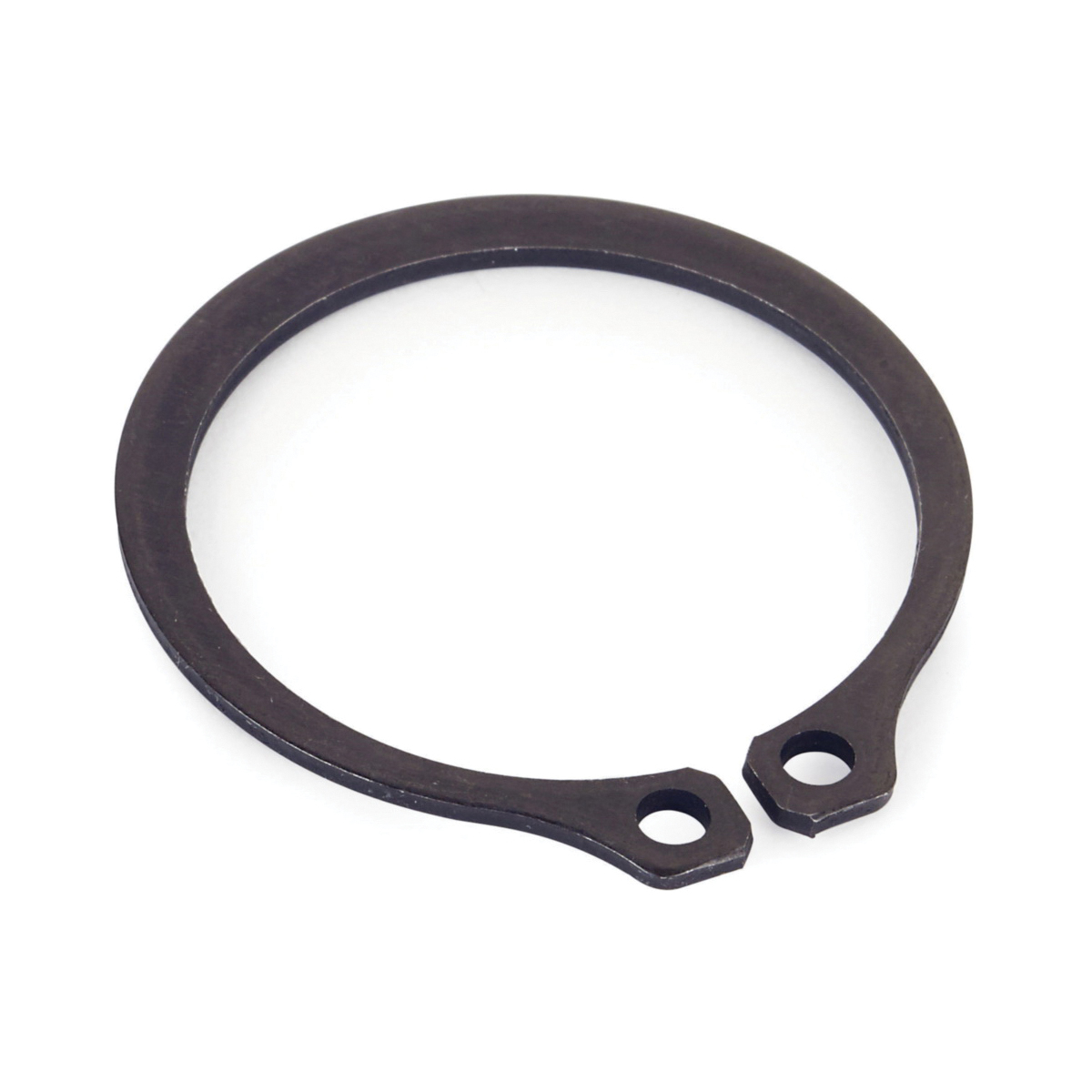

Thomson® W1250 External Type W Retaining Ring, 1-1/4 in Dia Shaft, 2.49 in OD, Steel
External retaining rings fit into the retaining ring grooves on the outside diameter of super smart, super and Precision Steel Ball Bushing® bearings to provide external mounting retention. Available in standard and stainless steel versions.
-
BrandThomson®
-
UPC662486103363
-
Manufacturer Part NumberW1250
-
CountryUSA
-
MaterialSteel
-
TypeExternal Type W
-

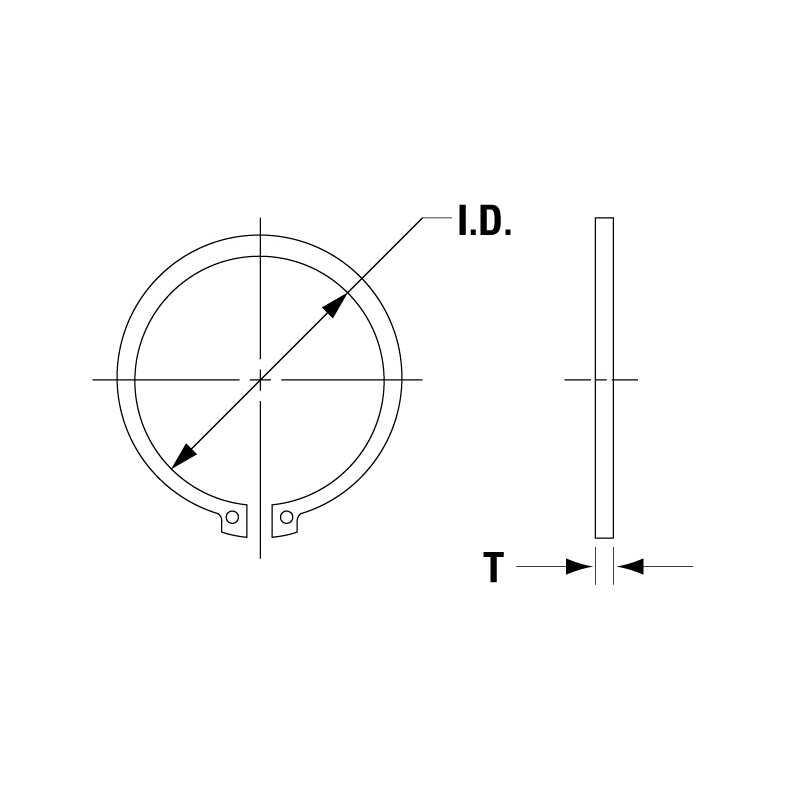

Dimensions1.85 in ID x 0.062 in THK
-
Outside Diameter2.49 in
-
Suitable For Use WithSuper Smart Ball Bushing® SSU20, Super Ball Bushing® SUPER20 and Ball Bushing® A203242, XA203242, OPN203242 Precision Steel Linear Bearings
- External retaining rings that fit in retaining ring grooves on bearing sleeve
-
UNSPSC26112105
-
Package Description1/PK
-
