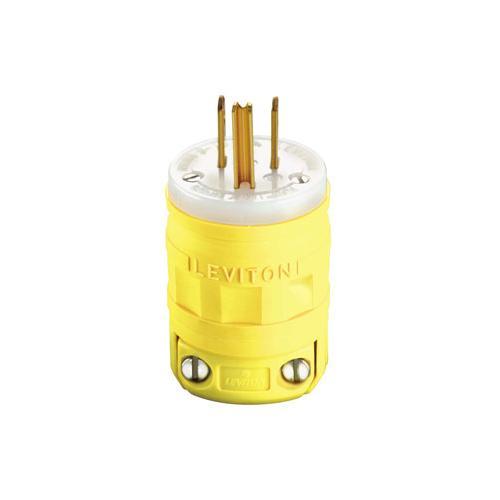

LEVITON 15-AMP DUSTGUARD ELECTRIC PLUGS LEV 1447
Dustguard® plugs and connectors feature resistance to the damaging effects of dirt, dust, metal filings and other airborne particulate matter that can seriously degrade electrical performance. They share many of the superior design features of Wetguard® plugs and connectors, offering a reliable source of electrical power where extended mechanical and electrical life are specified but moisture resistance is not required.
-
BrandLeviton®
-
UPC078477848197
-
Manufacturer Part Number1447
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialTPV
-
ColorYellow
-
TypeCable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 5-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.375 to 0.655 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.54 in Dia x 34 in H
-
Number of Wires3
-
EnclosureIP44
- Tongue and groove design of front module and TPV body assures tight fit in husk and offers excellent barrier against dirt and dust
- Rubber membrane seal for secure cord grip, creates a barrier and keeps contaminants from entering the device interior
- Santoprene TPV husk exterior offers excellent resistance to cracking and fading from sunlight exposure, repels moisture and fluids and endures extreme temperature variations
- Fast threading assembly screws, keyed wiring module and husk, self-centering strain relief clamps and deep funneled wiring wells provide for simple and fast assembly
- 18 to 10 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKF8 |
-
Alternative Part Number7344473
-
UNSPSC39121402
-
IDEA Index ID7344473
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Warranty2 years
-
RoHS
-
Instruction/Installation Manual
