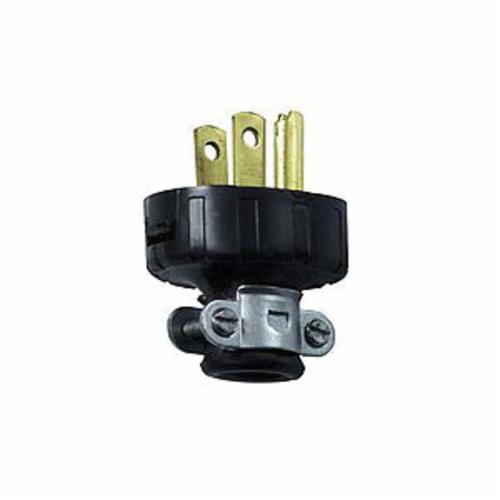

Leviton® 48648 Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Leviton® 48648 Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
-
BrandLeviton®
-
UPC078477327951
-
Manufacturer Part Number48648
-
CountryUSA
-
MaterialVinyl
-
ColorBlack
-
TypeGrounding
-
GradeResidential
-
NEMA RatingNEMA 5-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.437 in
-
Amperage Rating15 A
-
Number of Poles2
-
Number of Wires3
-
Temperature Rating-40 to 65 deg C
-
Terminal TypeThreaded
- Armored devices have heavily plated steel shields and cord clamps
- Brass plug blades and connector contacts for maximum conductivity
- Vinyl devices resist chipping, cracking, oils, grease and acids
- Rubber devices resist cold, abrasion, grease, oils, acids and impact
- Plastic devices resist grease, oils and acids
- Flammability (rated UL94 V-2)
- Grounding
- Cable mounting
- Zinc plated steel screw assembly
- 18 to 14 AWG wire
-
Alternative Part Number7316440
-
UNSPSC39121402
-
IDEA Index ID7316440
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|NOM 057 Certified|UL File No. E13393
-
Warranty2 Year Limited Warranty
-
Specification Sheet
-
Owners/User Manual
