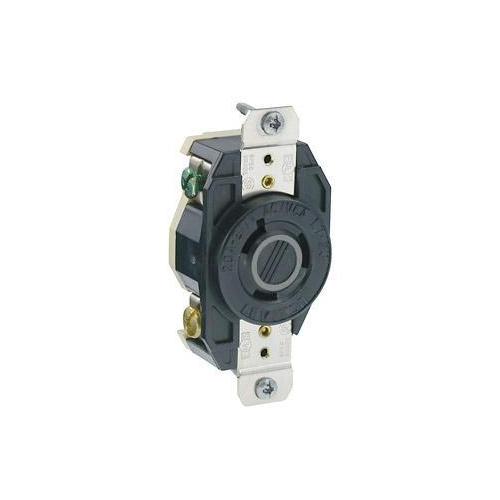

Leviton® 2330 Grounding Single Locking Receptacle, 277 V AC, 20 A, 2 Poles, 3 Wires, Black
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
-
BrandLeviton®
-
UPC078477809808
-
Manufacturer Part Number2330
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialPolybutylene Terephthalate
-
ColorBlack
-
TypeGrounding Single
-
GradeIndustrial
-
NEMA RatingNEMA L7-20R
-
Voltage Rating277 V AC
-
Amperage Rating20 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions3.63 in H x 1.69 in W x 1.31 in D
-
Number of Wires3
- Flush mount
- Withstands 2000 VAC per UL 498 dielectric voltage
- Maximum 30 deg C after 250 cycles overload at 200% rated current temperature rise
- 14 to 8 AWG terminal accommodation
- Nickel plated solid brass strap for a lower resistance grounding path and superior corrosion resistance
- Valox® construction for endurance and resistance to impact and abuse
- Triple head brass #10 terminal screws for faster, more secure installation
- 1-piece contacts for superior conductivity
- Box mounting
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HYP3 |
-
Alternative Part Number7332705
-
UNSPSC39121406
-
IDEA Index ID7332705
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
-
RoHS
-
Instruction/Installation Manual
