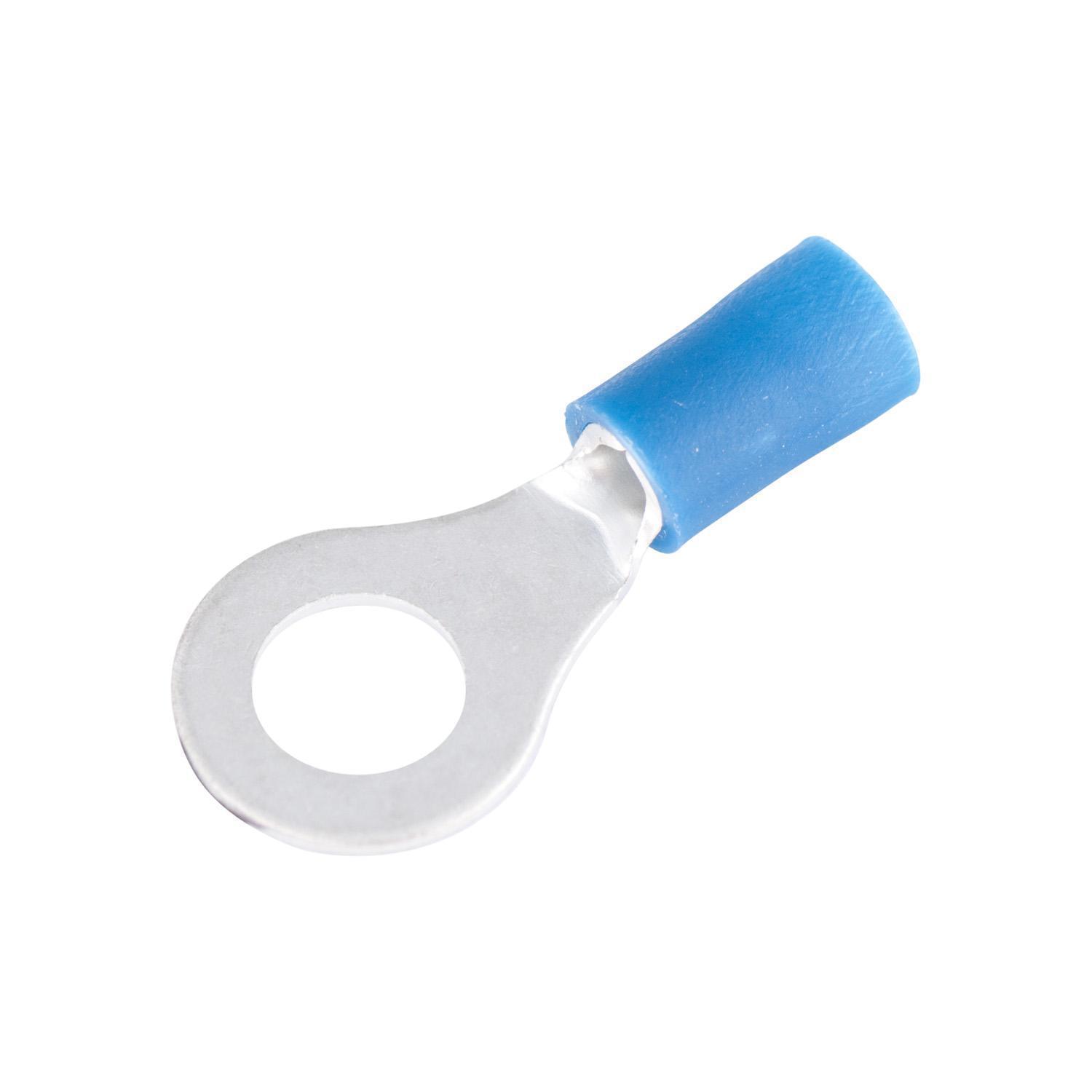

Gardner Bender 20-105 Ring Terminal, 16 to 14 AWG Conductor, 1.06 in L, Blue
The Gardner Bender™ quick and always reliable crimp type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600 V rating. Temperature ratings for the complete line are 75 deg C (167 deg F). You will find various terminals for various circuit protection devices, all insulated to last for those any environments. Gardner Bender terminals are leading the industry in quality and durability.
-
BrandGardner Bender
-
UPC032076050009
-
Manufacturer Part Number20-105
-
CountryUSA|Canada
-
Temperature Rating167 deg F
-
ColorBlue
-
Conductor Size16 to 14 AWG
-
Voltage Rating600 V AC
-
SpecificationsVinyl Insulated
-
Length1.06 in
-
Stud Size#12 to 1/4 in
- Ring terminals include a vinyl insulated barrel and are rated at a 600 V maximum
- Industry standard color coded by wire gauge size
- Quick and reliable crimp-type wire connections
| Cross-Reference Number |
|---|
| 529982 |
-
UNSPSC39121405
-
Standards/ApprovalscULus Listed|RoHS Compliant
-
Warranty1 Year
-
