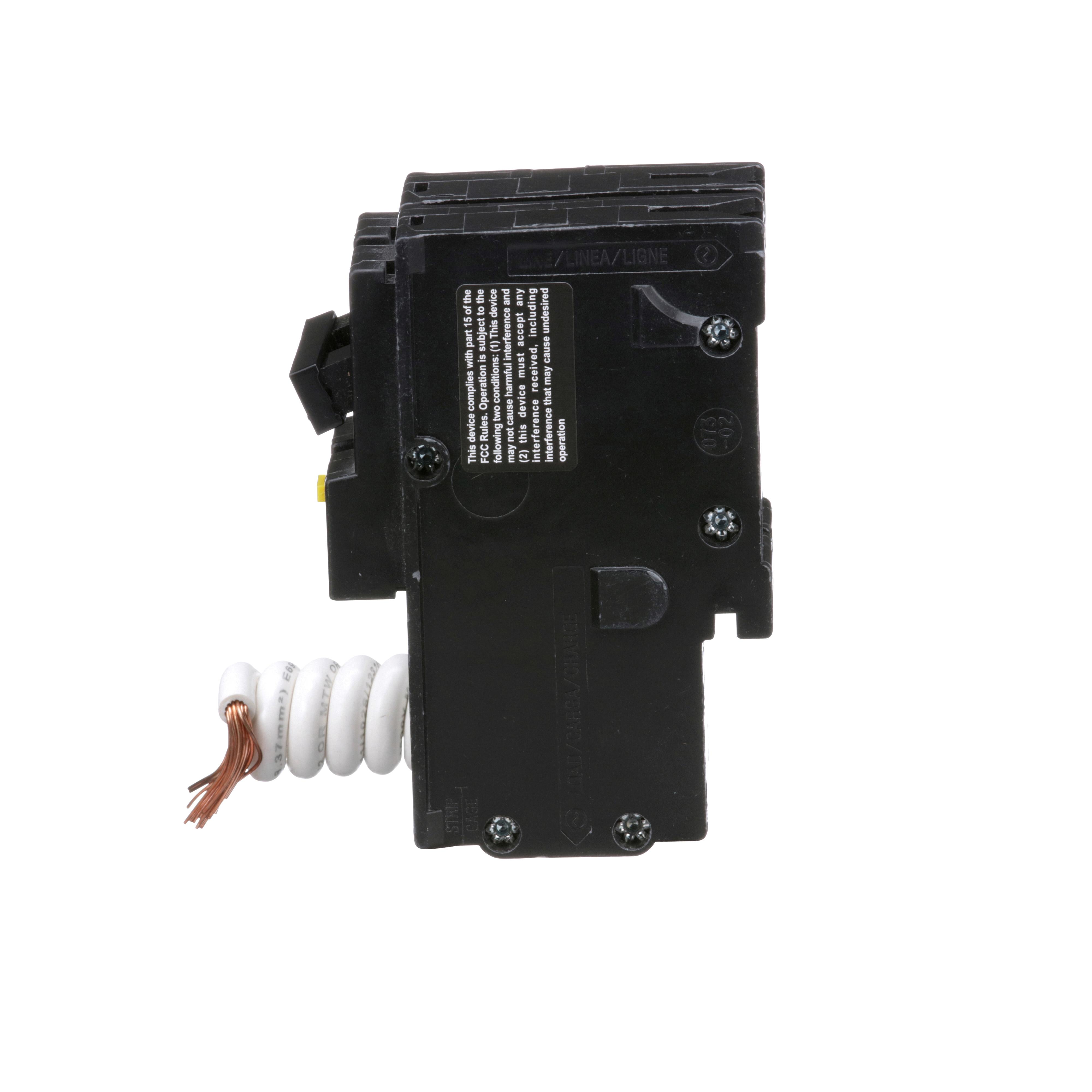

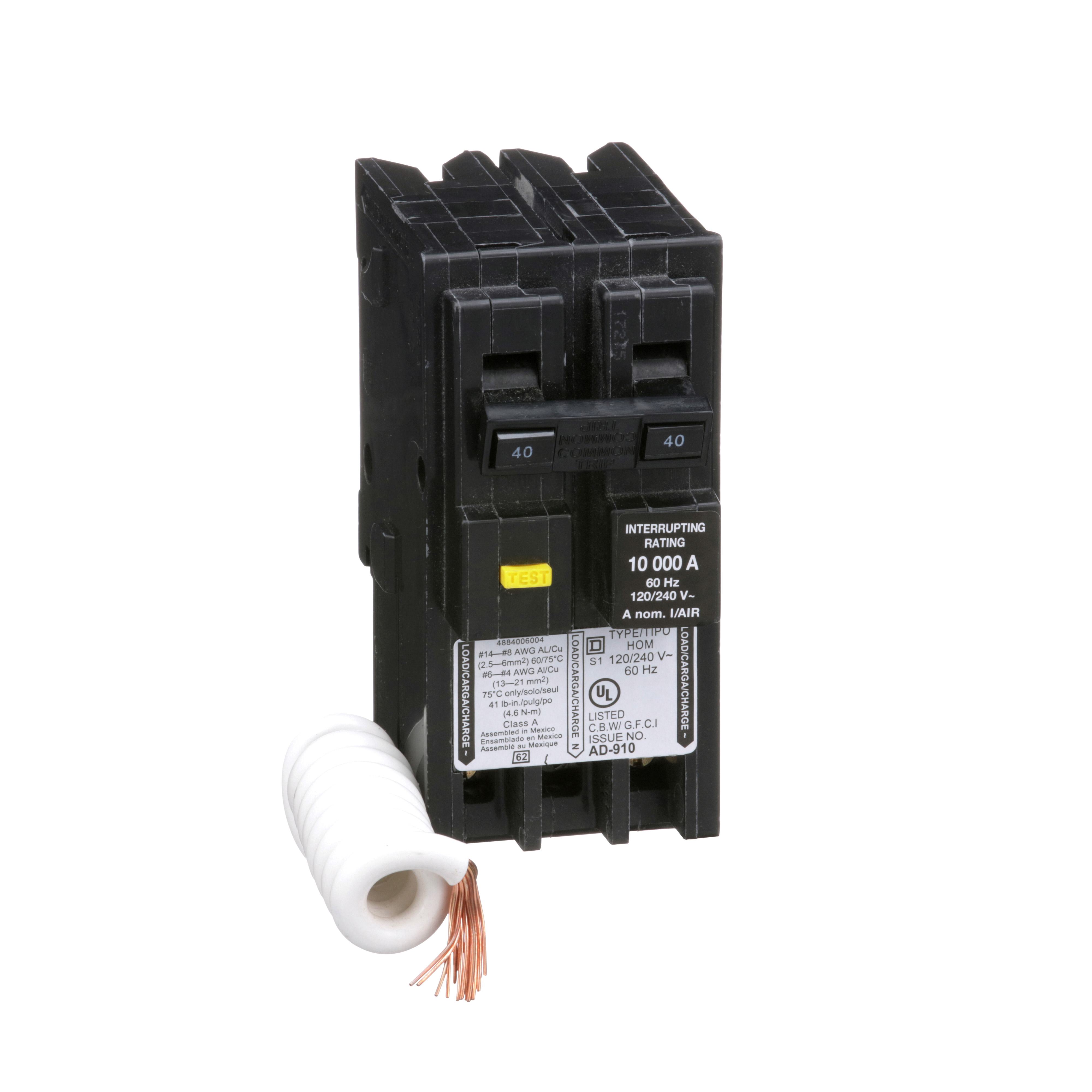

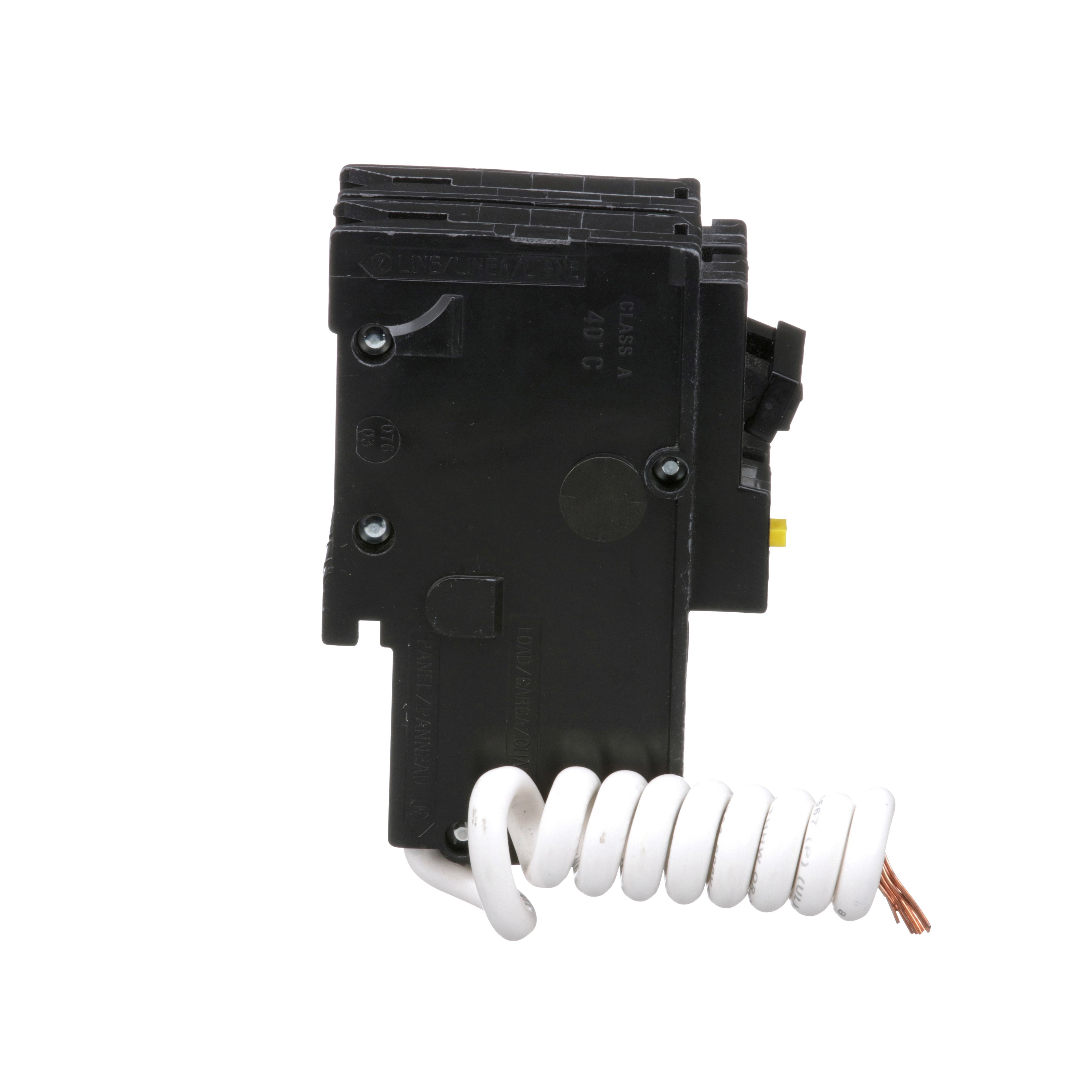

Square D™ Homeline™ HOM240GFI Class A Ground Fault Protecting Miniature Circuit Breaker, 120/240 V AC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901303466
-
Manufacturer Part NumberHOM240GFI
-
CountryUSA
-
Temperature Rating75 deg C
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeClass A Ground Fault Protecting
-
Connection TypeTerminal Screw
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating40 A
-
SeriesHOM
-
Wire Size12 to 4 AWG, 14 to 6 AWG
-
Number of Poles2
-
Dimensions2.98 in L
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/2
-
Phase1
- Homeline GFCI MCB are designed to protect against irregular electrical current
- Compatible with Homeline electrical panel and CSEDs
- Protects against overload, short curcuits, and ground faults with a current greater than 6mA
-
Alternative Part Number8129544
-
UNSPSC39121603
-
IDEA Index ID8129544
-
Package DescriptionEACH
-
Standards/ApprovalsUL E-6294, Federal Specifications W-P-115b|NEC|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant
-
WarrantyLifetime
-
