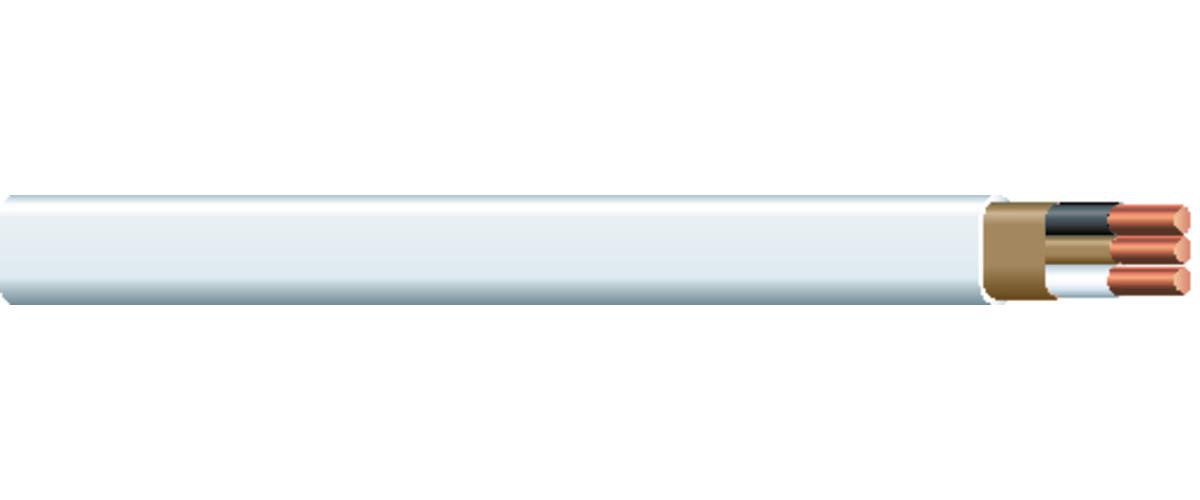

Southwire® 28827455 Type NM-B Non-Metallic Sheathed Cable, Coil Packaging, 600 V AC, (2) 14 AWG Solid Copper Conductor, 250 ft L, White
Southwire® Romex® Brand SIMpull® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90C (with ampacity limited to that for 60C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
-
BrandSouthwire®
-
UPC032886163005
-
Manufacturer Part Number28827455
-
CountryUSA
-
Temperature Rating90 deg C
-
TypeType NM-B
-
Conductor Size14 AWG
-
Conductor TypeSolid Copper
-
Voltage Rating600 V AC
-
Amperage Rating15 A
-
Number of Conductors2
-
Insulation MaterialPVC
-
Jacket ColorWhite
-
Jacket MaterialPVC
-
Strands1
-
Outside Diameter3603 mil
-
Length250 ft
- Southwire Romex Brand SIMpull NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90C
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 V
| Cross-Reference Number |
|---|
| 506385 |
-
Alternative Part Number8876186
-
UNSPSC26121517
-
IDEA Index ID8876186
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM B3/B8|Federal Specification A-A-59544|NEC Certified|NFPA 70-2011 Edition|REACH Compliant|UL 83|UL 719
-
Warranty1 Year
-
Specification Sheet
