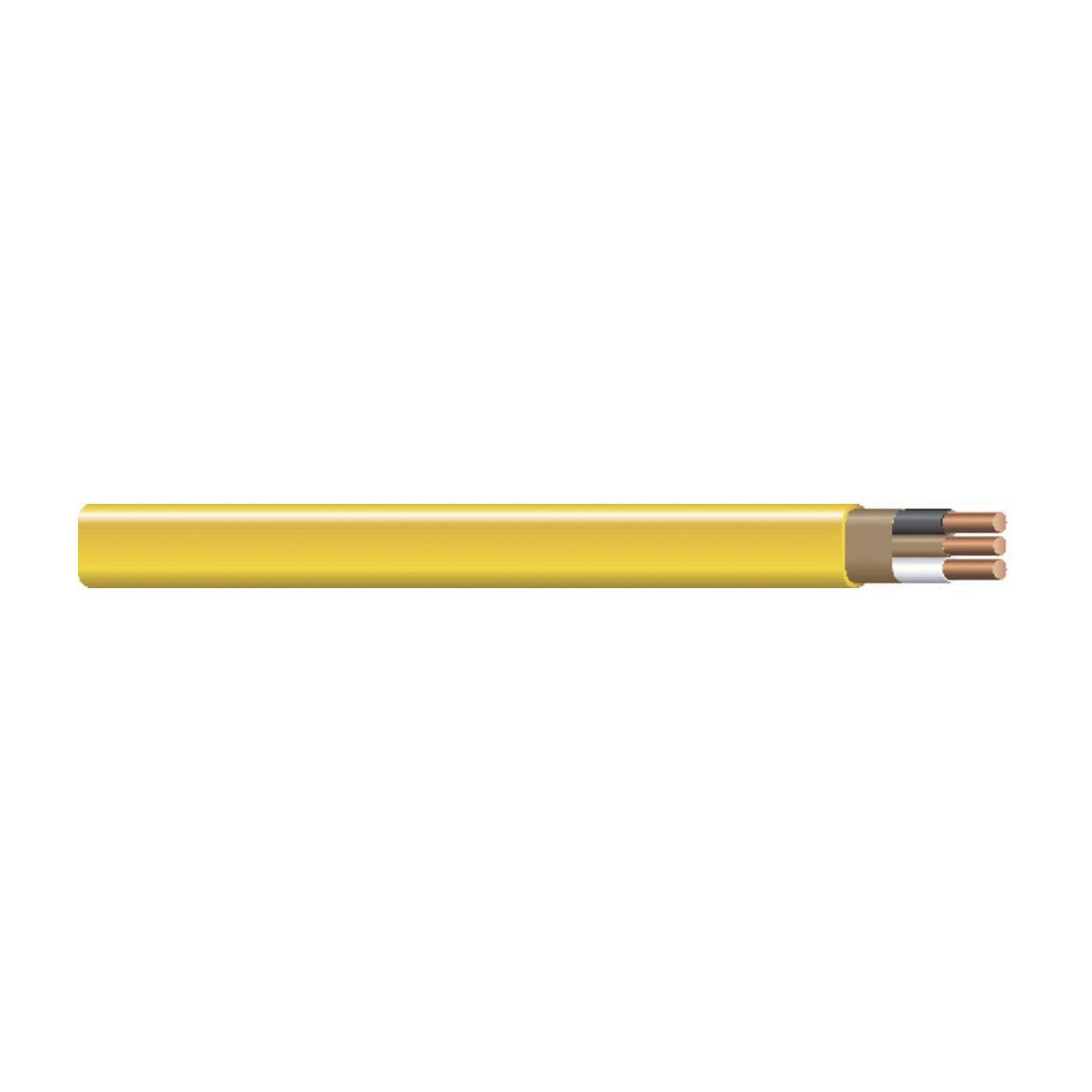

Romex® SIMpull® 28828272 Type NMB Cable, Spool Packaging, 600 V, (2) 12 AWG Copper Conductor, 400 ft L, Yellow
Southwire® Romex® Brand SIMpull ® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90C (with ampacity limited to that for 60C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
-
BrandRomex® SIMpull®
-
UPC032886038112
-
Manufacturer Part Number28828272
-
CountryUSA
-
Temperature Rating90 deg C
-
TypeType NMB
-
Conductor Size12 AWG
-
Conductor TypeCopper
-
Voltage Rating600 V
-
Amperage Rating20 A
-
Number of Conductors2
-
Insulation MaterialPVC
-
Jacket ColorYellow
-
Jacket MaterialNylon
-
Strands1
-
Length400 ft
- Voltage rating for NM-B cable is 600 V
-
Alternative Part Number17171007
-
UNSPSC26121517
-
IDEA Index ID17171007
-
Standards/ApprovalsASTM B3/B8|Federal Specification A-A-59544|Green Specification|NFPA 70|REACH Compliant|RoHS Compliant|UL 83/719
-
Warranty1 Year
-
Specification Sheet
