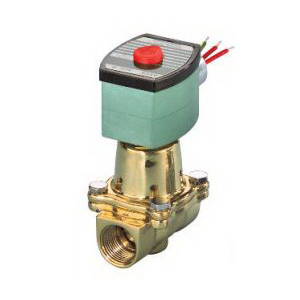

Asco Redhat® 8210G034 2-Way 2-Position NC Solenoid Valve, 1/2 in Nominal, NPT End Style, 150 psi AC/125 psi DC Pressure, Brass Body
Asco Redhat® 8210G034 2-Way 2-Position NC Solenoid Valve, 1/2 in Nominal, NPT End Style, 150 psi AC/125 psi DC Pressure, Brass Body
-
BrandAsco
-
Manufacturer Part Number8210G034
-
CountryUSA
-
Pressure Rating150 psi AC/125 psi DC
-
Top to Inlet Center3.79 in
-
MediaAir/Water/Light Oil/Non-Corrosive Fluid/Inert Gas
-
Type2-Way 2-Position NC
-
Actuator TypePilot Operated
-
Nominal Size1/2 in
-
Series8210
-
Inlet to Outlet Length2-3/4 in
-
Dimensions2.28 in W x 4.35 in H
-
Softgoods MaterialNBR
-
Body MaterialBrass
-
Orifice Size5/8 in
-
End StyleNPT
- Wide range of pressure rating, size and resilient material provide long service life and low internal leakage
- PA disc-holder
- Two-way (2/2) general service solenoid valve have one inlet port and one outlet port
- Redhat® type-1 enclosure
-
UNSPSC40141605
-
Standards/ApprovalsCSA/CE Certified|UL Listed
-
Specification Sheet
-
Catalog
