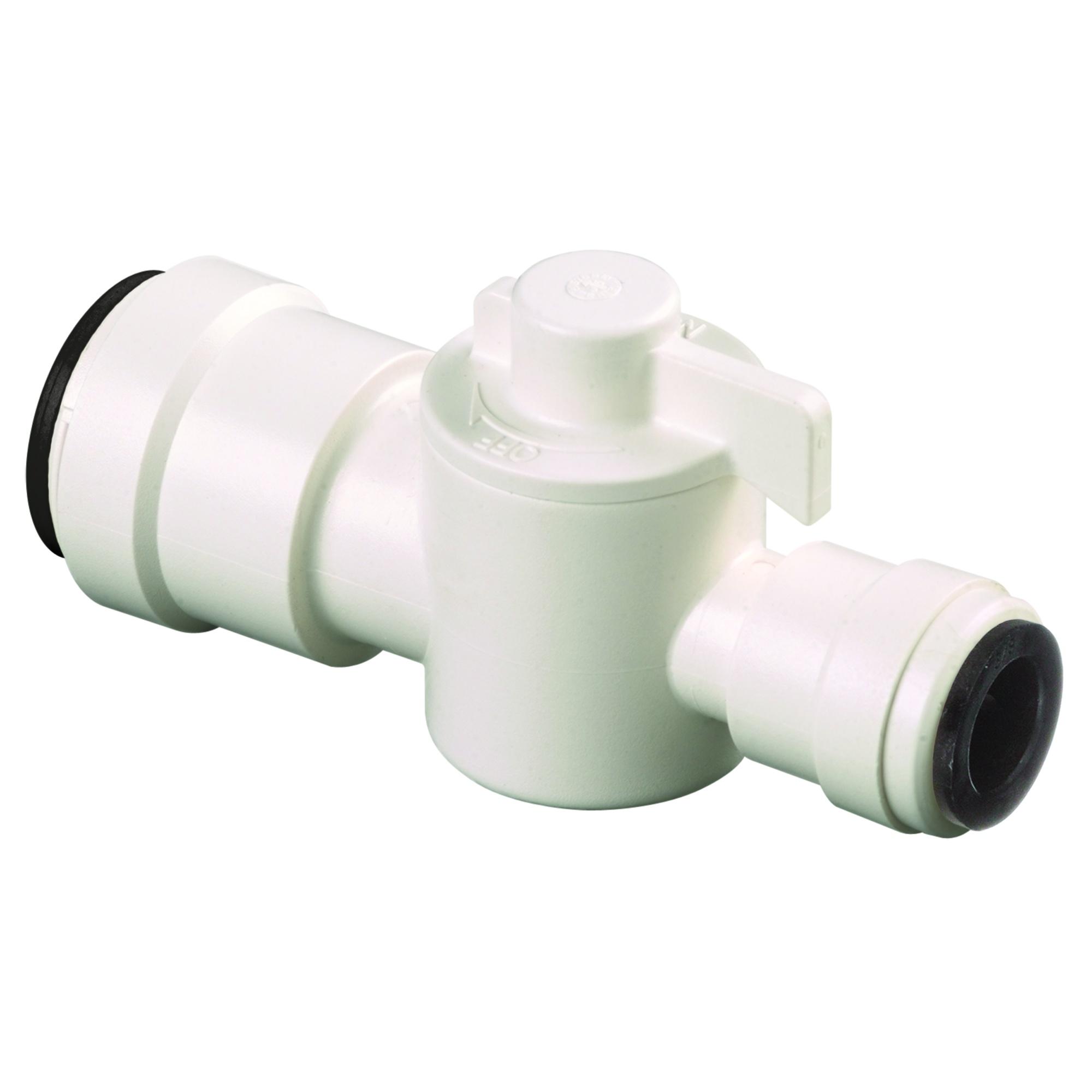

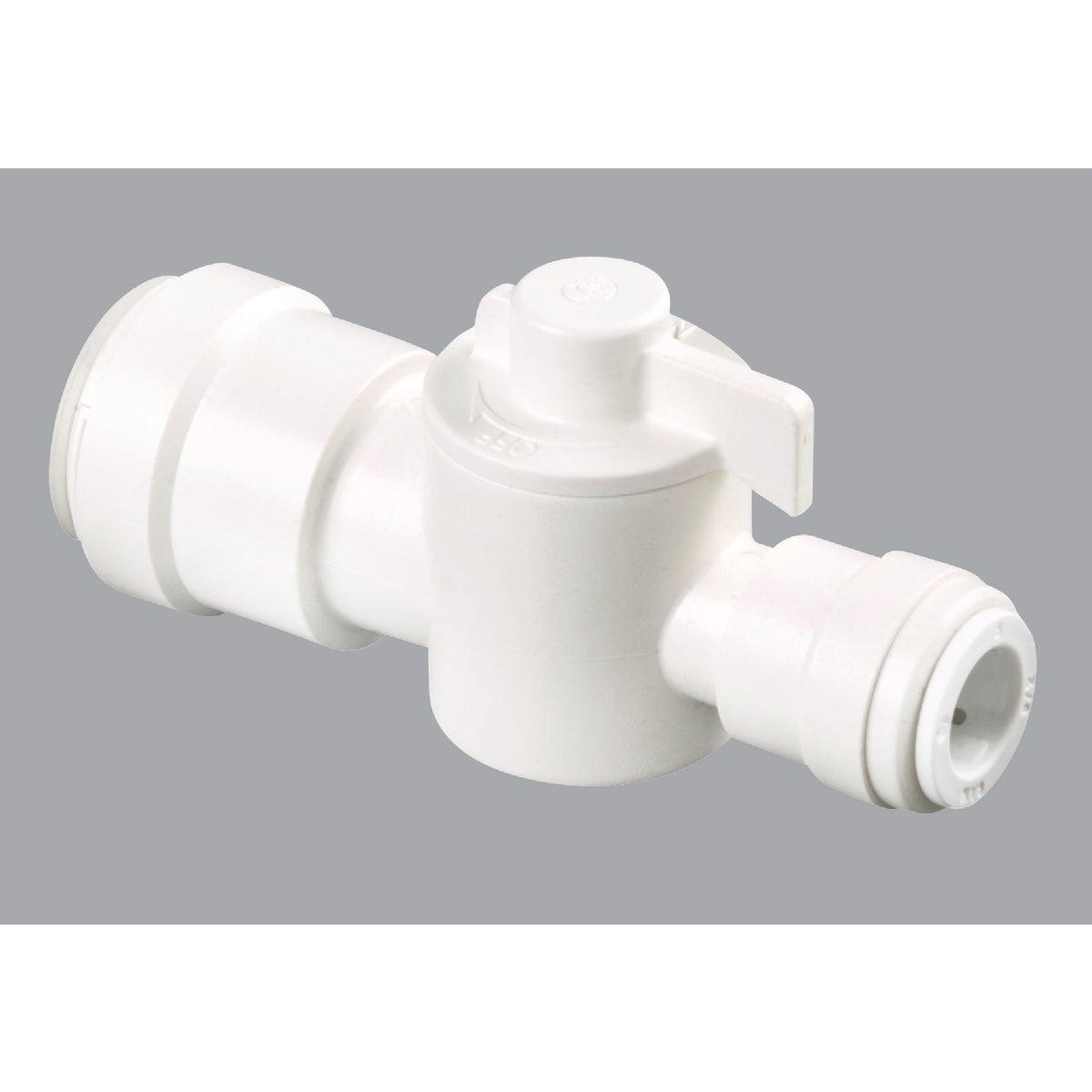

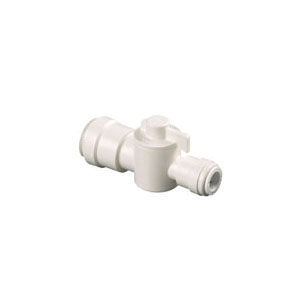

WATTS® 0959191 35 Series Quick-Connect Straight Reducing Stop Valve, 1/2 x 3/8 in, CTS, Import
This 1/2 inch CTS x 3/8 inch CTS AquaLock(TM) plastic straight valve works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
-
BrandWATTS®
-
UPC098268326772
-
Manufacturer Part Number0959191
-
CountryUSA|Canada
-
TypeQuick-Connect
-
Nominal Size1/2 x 3/8 in
-
Series35 Series
-
Domestic/ImportImport
-
End StyleCTS
-
Temperature Rating75 deg F
-
Pressure Rating250 psi
-
MediaWater
-
ColorOff-White
-
Softgoods MaterialEPDM
-
Body MaterialPolysulfone Thermal Plastic
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- EPDM O-ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Can be used for hot and cold water applications, including behind the wall applications
- No tools required for installation or removal
| Cross-Reference Number |
|---|
| 400661 |
-
Alternative Part Number3555-1008|81903022
-
UNSPSC40141600
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|ASSE 1061|ASTM F877|CSA B137.5|NSF 61|NSF 14|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty1 year Limited
-
Warranty Information
-
