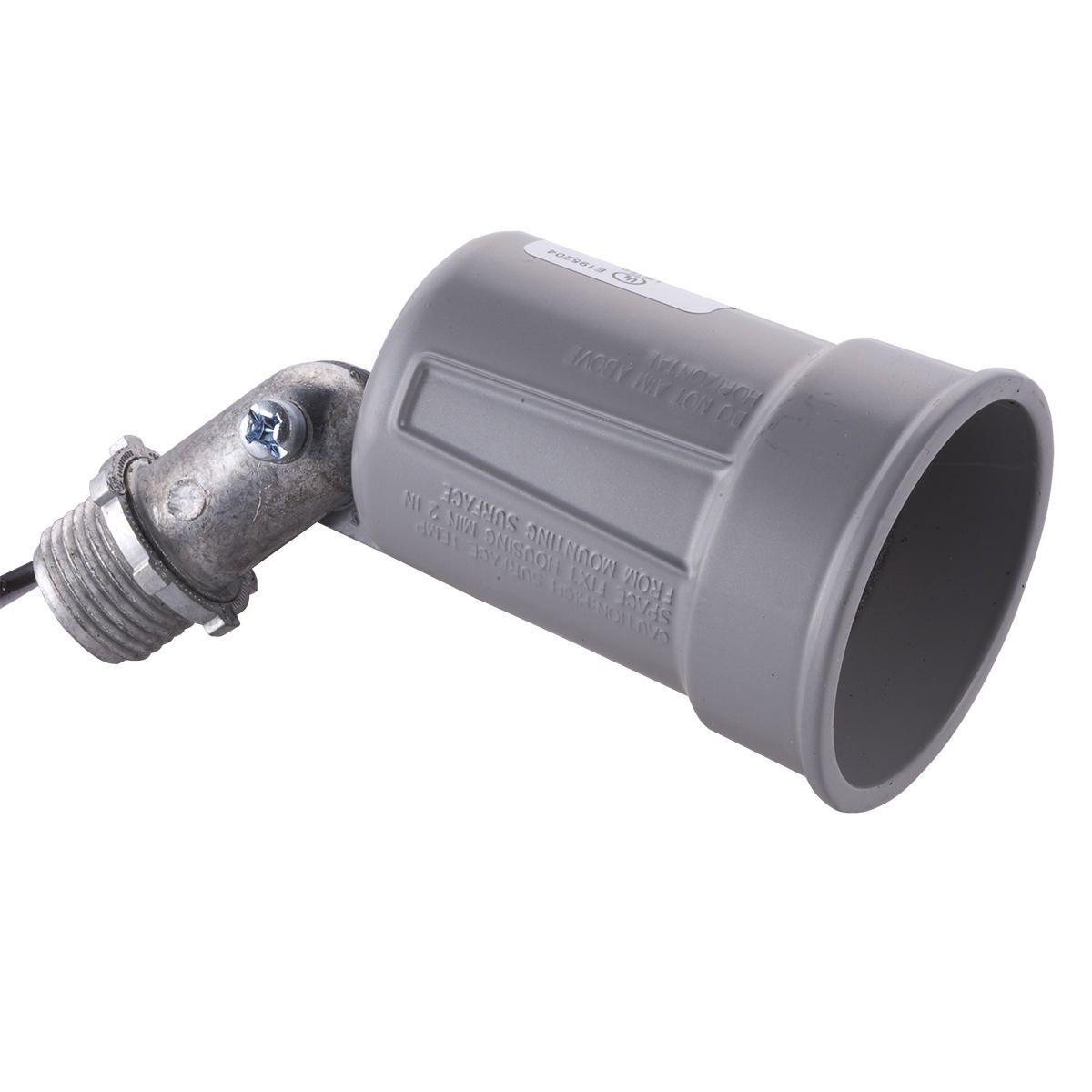

Beacon Products 5606-5 Traditional Style Weatherproof Lampholder, 75 to 150 W Lamp
Beacon Products 5606-5 Traditional Style Weatherproof Lampholder, 75 to 150 W Lamp, PAR38 Lamp
-
BrandBeacon Products
-
UPC050169560655
-
Manufacturer Part Number5606-5
-
CountryUSA
-
FinishPowder Coated
-
Terminal TypeLead Wire
-
MaterialDie Cast Zinc
-
ColorGray
-
TypeTraditional Style Weatherproof
-
Series5606
-
Dimensions2-3/32 in Dia x 2-3/4 in L
-
Lamp TypePAR38
-
Lamp Wattage75 to 150 W
- Lamp not included
- Rugged metallic construction
- State-of-the-art powder coat finish provides maximum weatherability and scratch resistance
- Locking swivel knuckle assures positive lamp positioning and provides pin-point directional aiming
- Extra long wire leads for easy hook up
- Each lampholder supplied with a porcelain socket, inside gasket, 1/2 in locknut and multi-lingual instructions
- May be used with Bell® cluster covers and boxes
- For electrical applications
- 2-1/2 in H gasket
| Cross-Reference Number |
|---|
| 527451 |
-
Alternative Part Number8704426
-
UNSPSC39131708
-
IDEA Index ID8704426
-
Standards/ApprovalsUL 1598|CSA C22.2 No. 18|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
