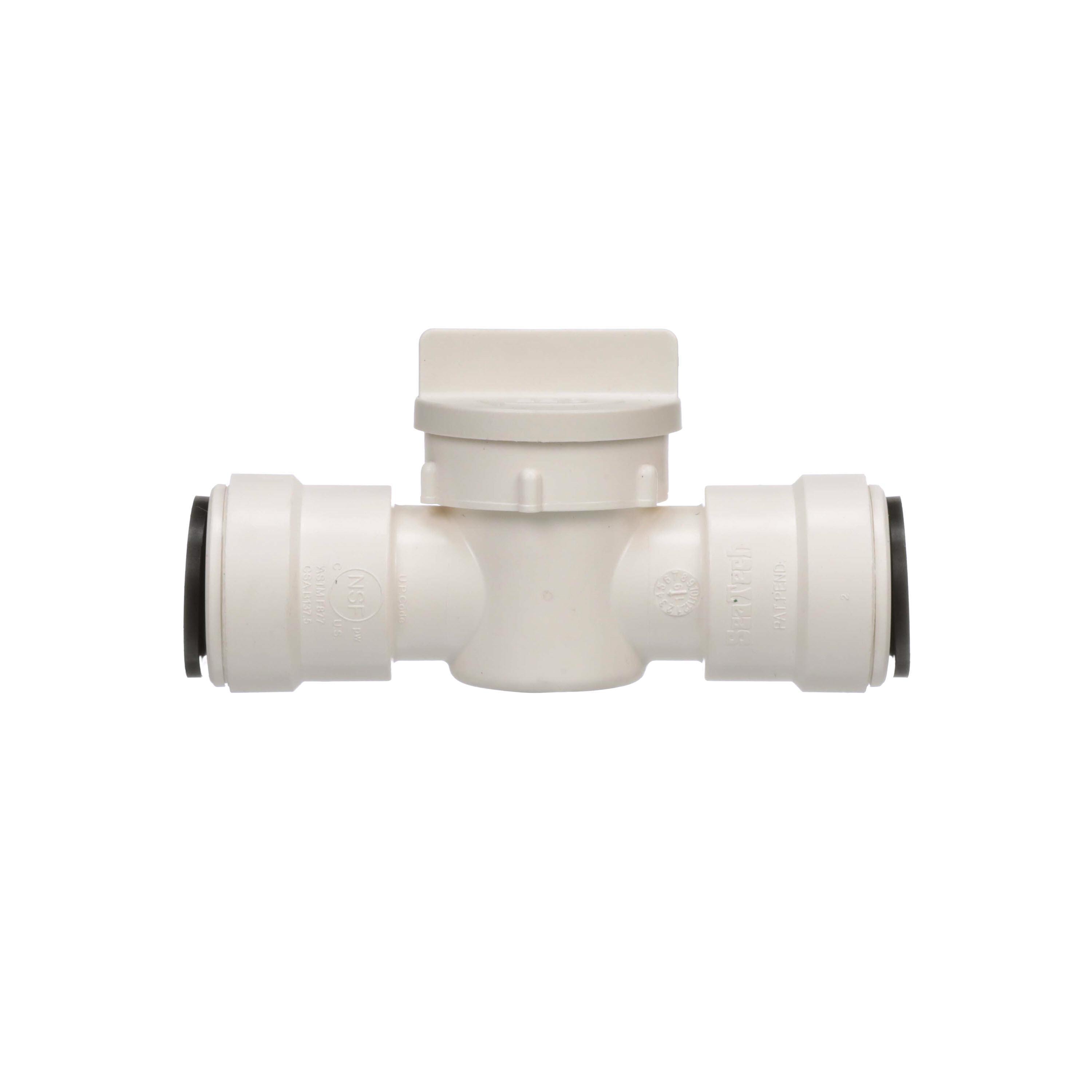

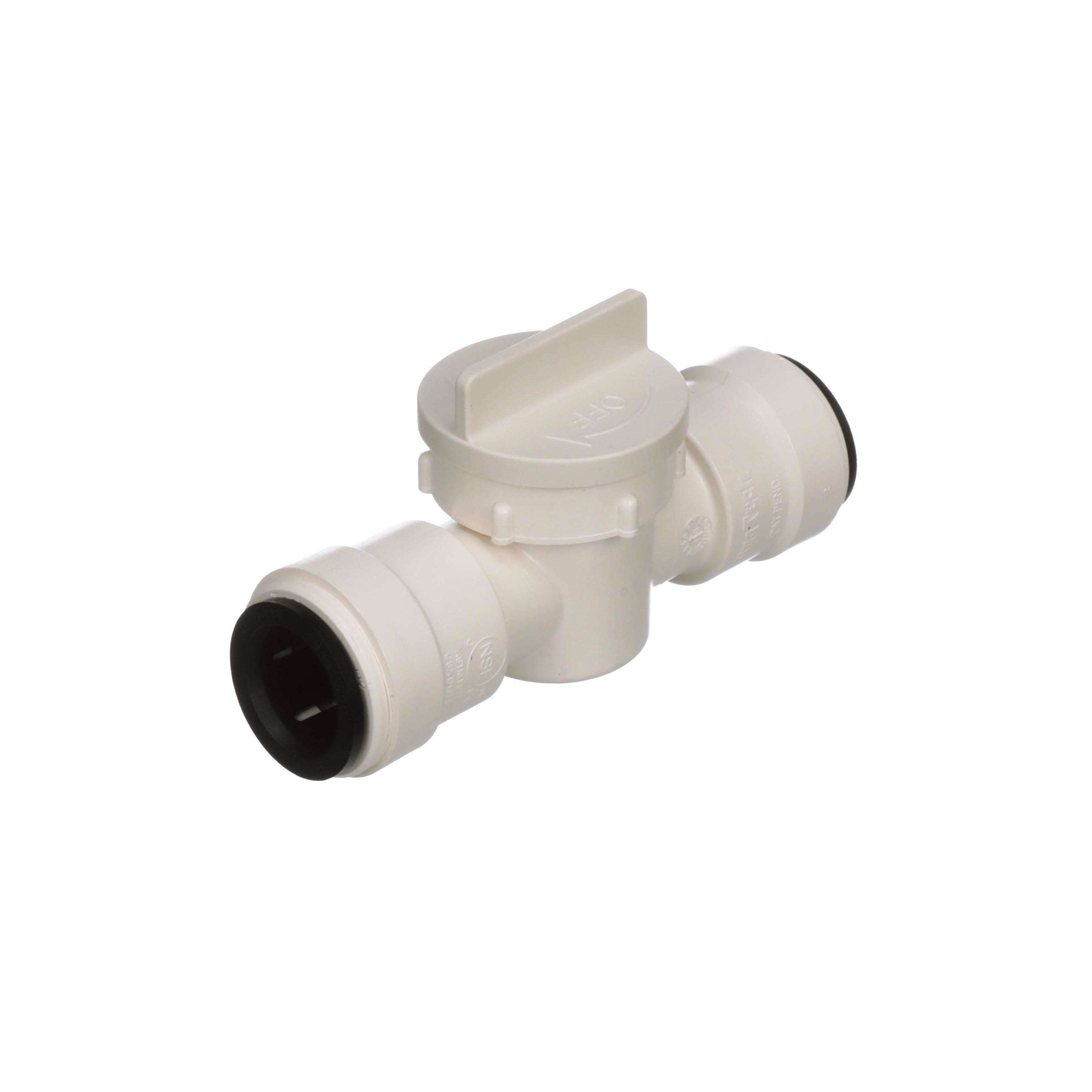

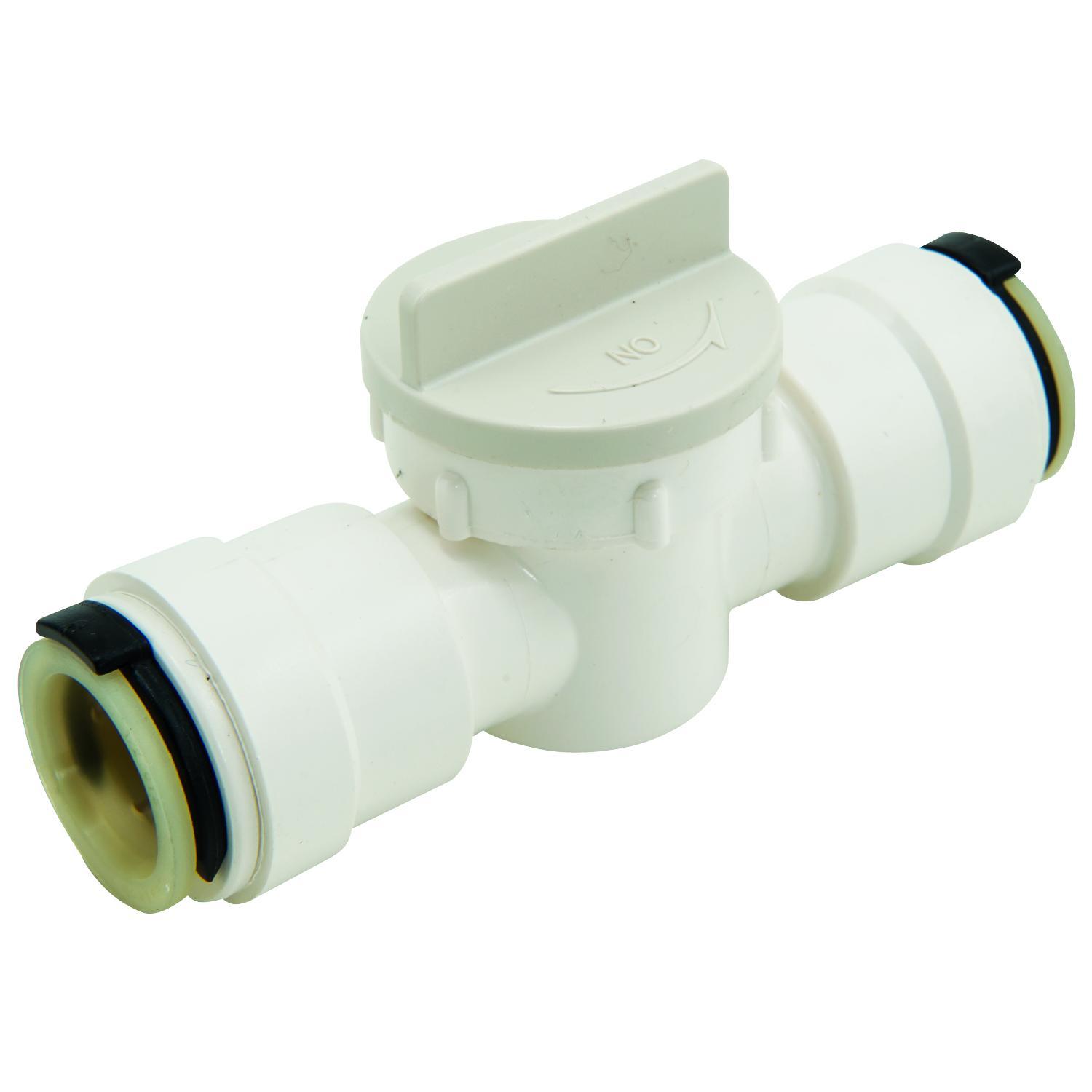

WATTS® 0959040 35 Series Type 39 Quick-Connect In-Line Straight Stop Valve, 3/8 in, CTS, Polysulfone Thermal Plastic, Import
35 Series products are manufactured in polysulfone and certified to NSF-61, NSF-14, CSA B137.5, ASTM F877, IGC 188-04c and recognized by the Uniform Plumbing Code.
-
BrandWATTS®
-
UPC098268298710
-
Manufacturer Part Number0959040
-
CountryUSA|Canada
-
Temperature Rating75 deg F
-
Pressure Rating250 psi
-
MediaWater
-
ColorOff-White
-
TypeType 39 Quick-Connect
-
Nominal Size3/8 in
-
Series35 Series
-
Inlet to Outlet Length3 in
-
Dimensions1-3/4 in H
-
Softgoods MaterialEPDM
-
Domestic/ImportImport
-
Body MaterialPolysulfone Thermal Plastic
-
End StyleCTS
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Zero leak connections
- Strong seal and hold
- Connects in one step
- Reusable
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
| Cross-Reference Number |
|---|
| 447074 |
-
Alternative Part Number3539-08|30098268298711|98268298710|20098268298714
-
UNSPSC40141600
-
Package DescriptionEACH
-
Standards/ApprovalsASSE 1061|ASTM F877|CSA B137.5|NSF 61|NSF 14|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|PROP65: This product can expose you to chemicals including Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm
-
Warranty10 Years Limited
-
Specification Sheet
