Sloan Valves ROYAL #110-4.5 TOILET VLAVE 4.5GPF SLO 3910004

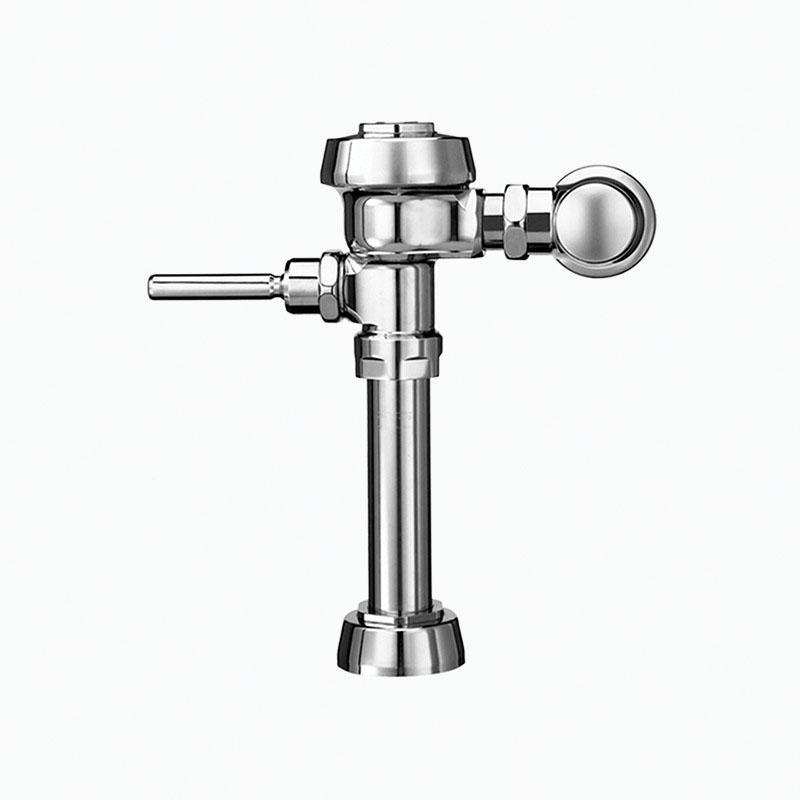

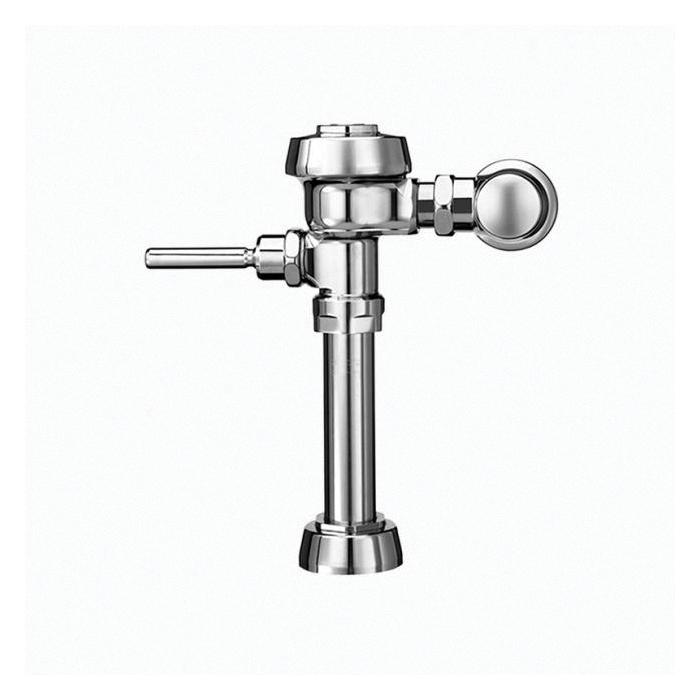

Sloan® Royal® 3910004 110 Single-Flush Manual Exposed Flushometer, 4 gpf, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi, Polished Chrome
-
BrandSloan®
-
UPC671254111905
-
Manufacturer Part Number3910004
-
CountryUSA
-
Finish/ColorPolished Chrome
-
MaterialSemi-Red Brass
-
Fixture TypeWater Closet
-
Pressure Rating15 to 80 psi
-
TypeSingle-Flush
-
Handle TypeNon-Hold Open Oscillating
-
Series110
-
Inlet Size1 in IPS
- Flush volumes start as low as 1.6 gpf/6.0 lpf
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S3910004 |
-
Alternative Part Number110-4.5
-
UNSPSC40141640
-
Standards/ApprovalsADA Compliant|ASTM Specified|ASSE1037 Valve|BAA Compliant
-
Specification Sheet
-
Line Drawing
-
Instruction/Installation Manual
