Sloan Valves #110 SLOAN ROYAL TOILET VALVES SLO 3010100

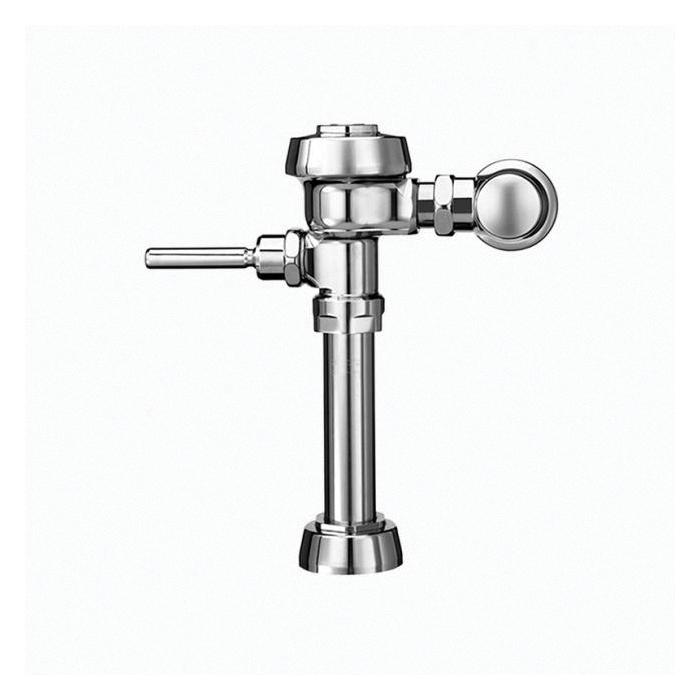

Sloan® Royal® 3010100 110 Single-Flush Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, Polished Chrome, Domestic
-
BrandSloan®
-
UPC671254018167
-
Manufacturer Part Number3010100
-
CountryUSA
-
Finish/ColorPolished Chrome
-
MaterialSemi-Red Brass
-
Fixture TypeWater Closet
-
TypeSingle-Flush
-
Handle TypeNon-Hold Open Oscillating
-
Series110
-
Inlet Size1 in IPS
-
Domestic/ImportDomestic
- Flush volumes start as low as 1.6 gpf/6.0 lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S3010100 |
-
UNSPSC40141640
-
Standards/ApprovalsADA Compliant|ASTM|ASSE 1037|BAA Compliant|cUPC Listed
-
Warranty3 Years Limited
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
-
Line Drawing
