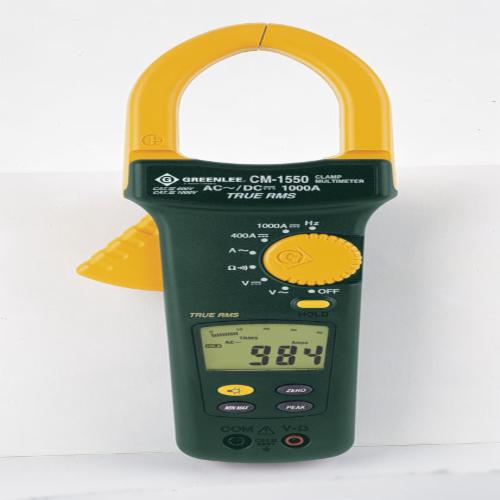

GreenleeĀ® CM-1550 Digital Clamp-On Meter, 400/1000 A at 600/750/1000 VAC/VDC, 200 Ohm/20 kOhm/200 kOhm/2 Ohm/20 Ohm, 0 to 400 Hz, 2 in Jaw, Backlit LCD Display
-
BrandGreenleeĀ®
-
UPC783310077992
-
Manufacturer Part NumberCM-1550
-
CountryUSA
-
Power Source9 V Battery
-
Frequency Counter50/500 Hz
-
Frequency Rating0 to 400 Hz
-
Resistance200 Ohm/20 kOhm/200 kOhm/2 Ohm/20 Ohm
-
TypeDigital
-
AC ResponseTrue RMS
-
Voltage Accuracy+/-1% + 0.5 VDC at 400 VAC, +/-1% + 5 VDC at 750 VAC
-
Safety RatingCAT III 600 V/CAT IV 750/1000 VAC
-
Counts4000
-
Display TypeBacklit LCD
-
Jaw Capacity2 in
-
Operating Temperature32 to 122 deg F
-
Electrical Ratings400/1000 A at 600/750/1000 VAC/VDC
- True RMS for the most accurate measurement when harmonics are present
- AC/DC amperage, AC/DC voltage, frequency and resistance measuring capability
- Dual hall sensor for the most accurate measurements
- Easy-to-read backlit display for use in low light conditions
- Peak and data hold to capture measurement
- Min/max feature for added versatility
- Analog bar graph to view quick changes
- Audible continuity test
- Selectable auto-off for longer battery life
- Data hold
- Peak hold
- 42 segment bar graph
- 3-3/4 in digit
- 2 deg pollution
-
UNSPSC41113600
-
Package Description1/PK
-
Standards/ApprovalsARRA Compliant|RoHS Compliant
