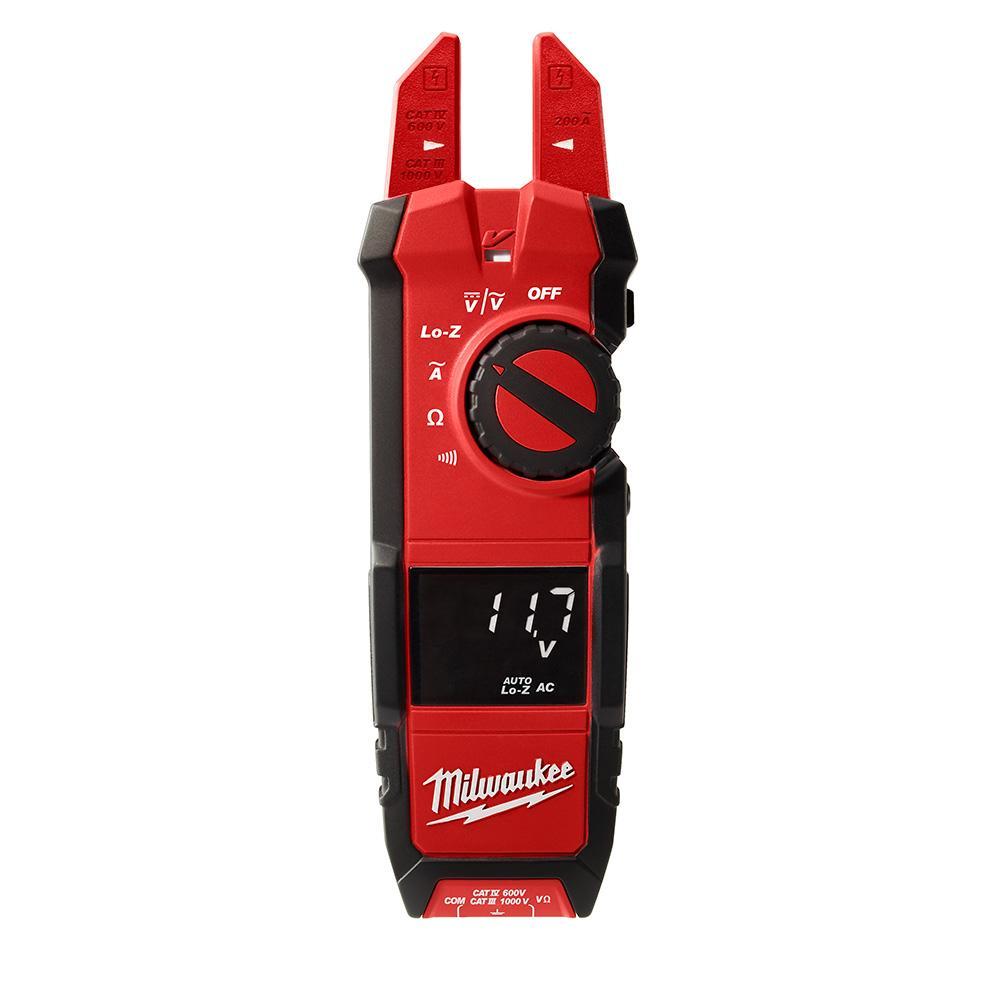

Milwaukee® 2205-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display

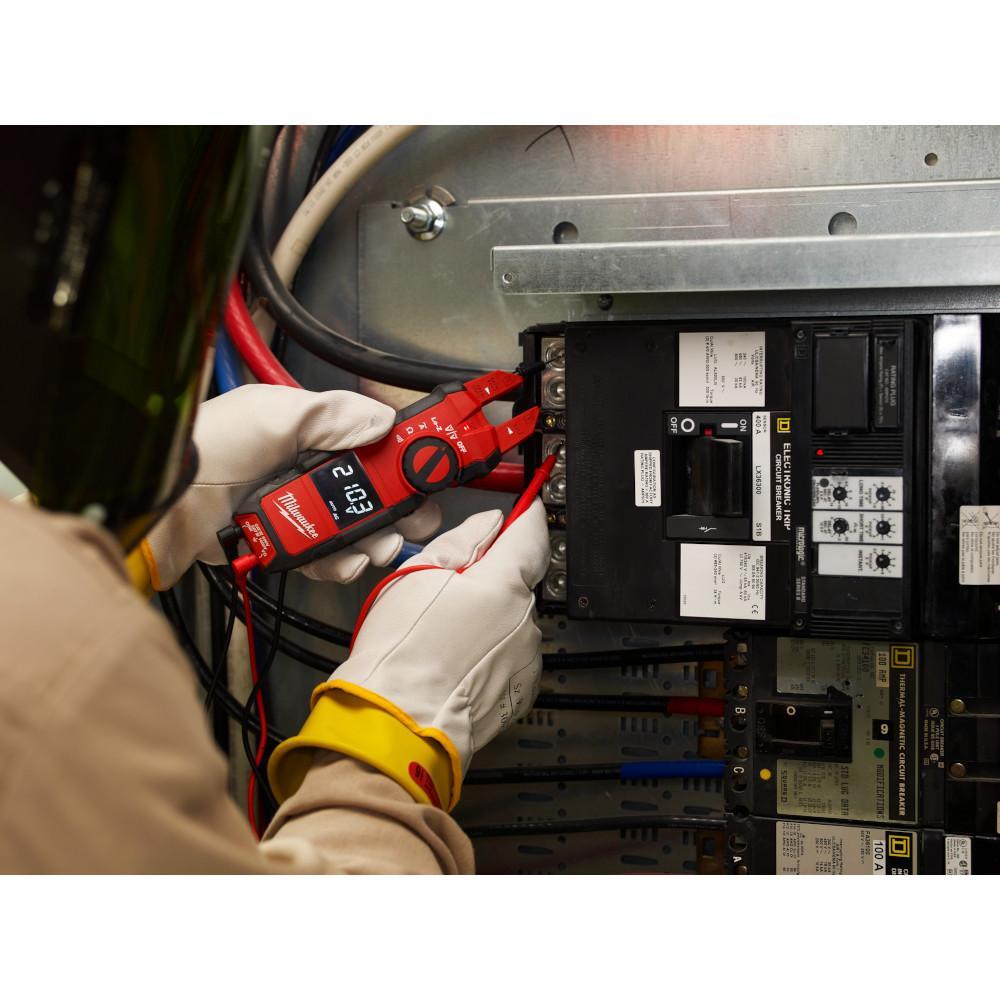

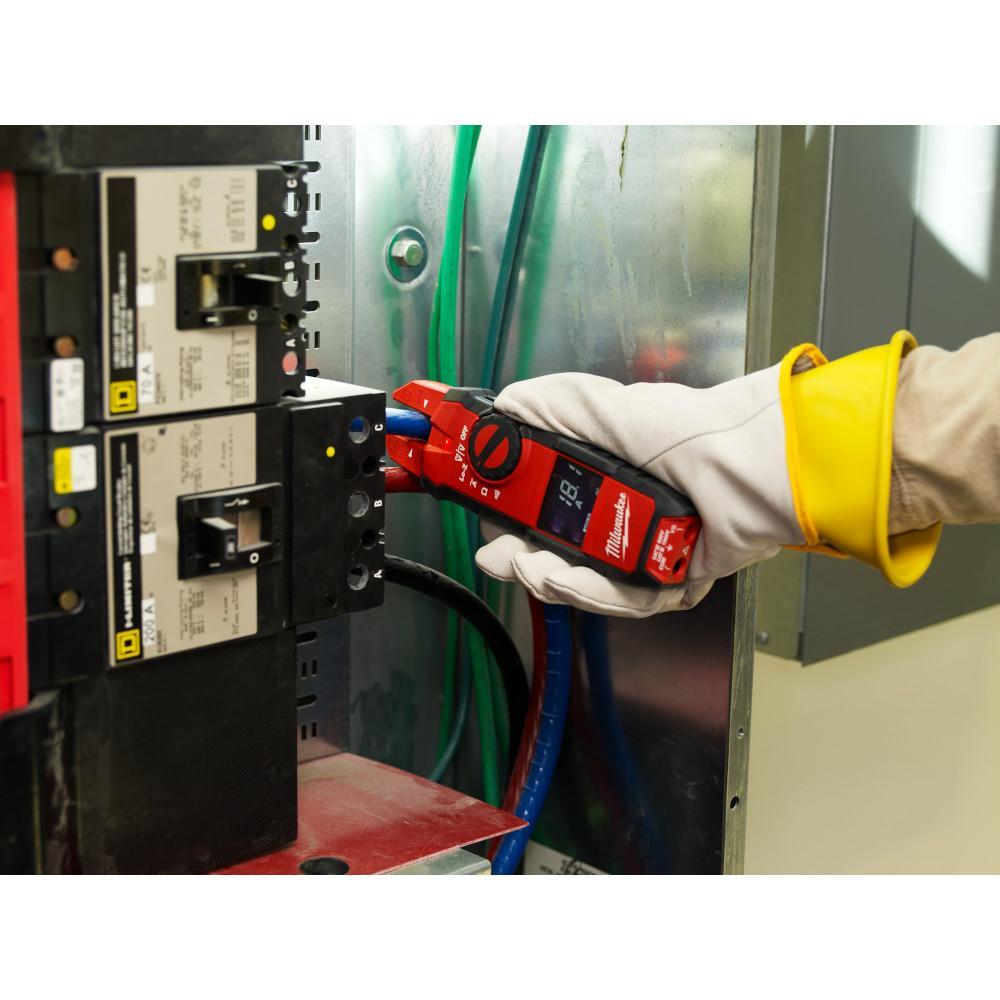

The Milwaukee fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.
-
BrandMilwaukee®
-
UPC045242173730
-
Manufacturer Part Number2205-20
-
CountryUSA|Canada
-
Power SourceAA Alkaline Battery
-
Frequency Rating50/60 Hz
-
Resistance40 mOhm
-
ColorBlack/Red
-
TypeHeavy Duty Digital
-
AC Current Accuracy+/-2% +/-5 Digits
-
AC ResponseTrue RMS
-
Safety RatingCAT IV 600 V, CAT III 1000 V
-
Counts4000
-
Dimensions8 in L
-
Display TypeHigh Contrast White on Black LCD
-
Jaw Capacity5/8 in
-
Operating Temperature14 to 122 deg F
-
Electrical Ratings200 A, 1000 V AC/DC

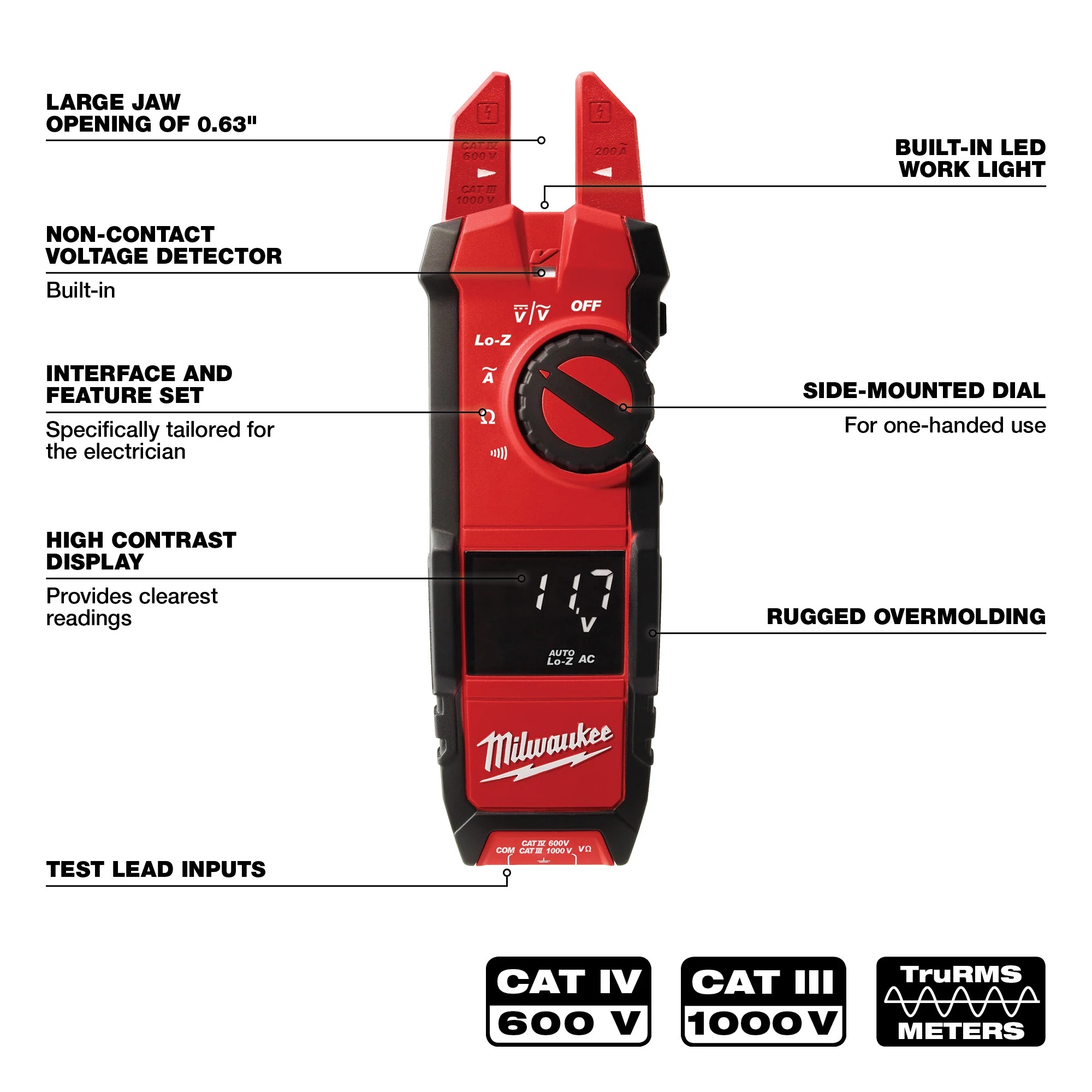

- Built-In Voltage Detector and LED Work Light
- Lo-Z measurement to eliminate ghost voltage
- Measures up to 200 A Wide 0.63 jaw opening
- Rugged over-molding increases durability and user grip
- Built-in voltage detector and LED work light
- Rugged over-molding increases durability and user grip
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4NYX6 |
| Fastenal | 0748605 |
-
Alternative Part Number10810993
-
UNSPSC41113630
-
IDEA Index ID10810993
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty5 Year Limited Warranty
-
Owners/User Manual
-
Full Engineering Drawing
