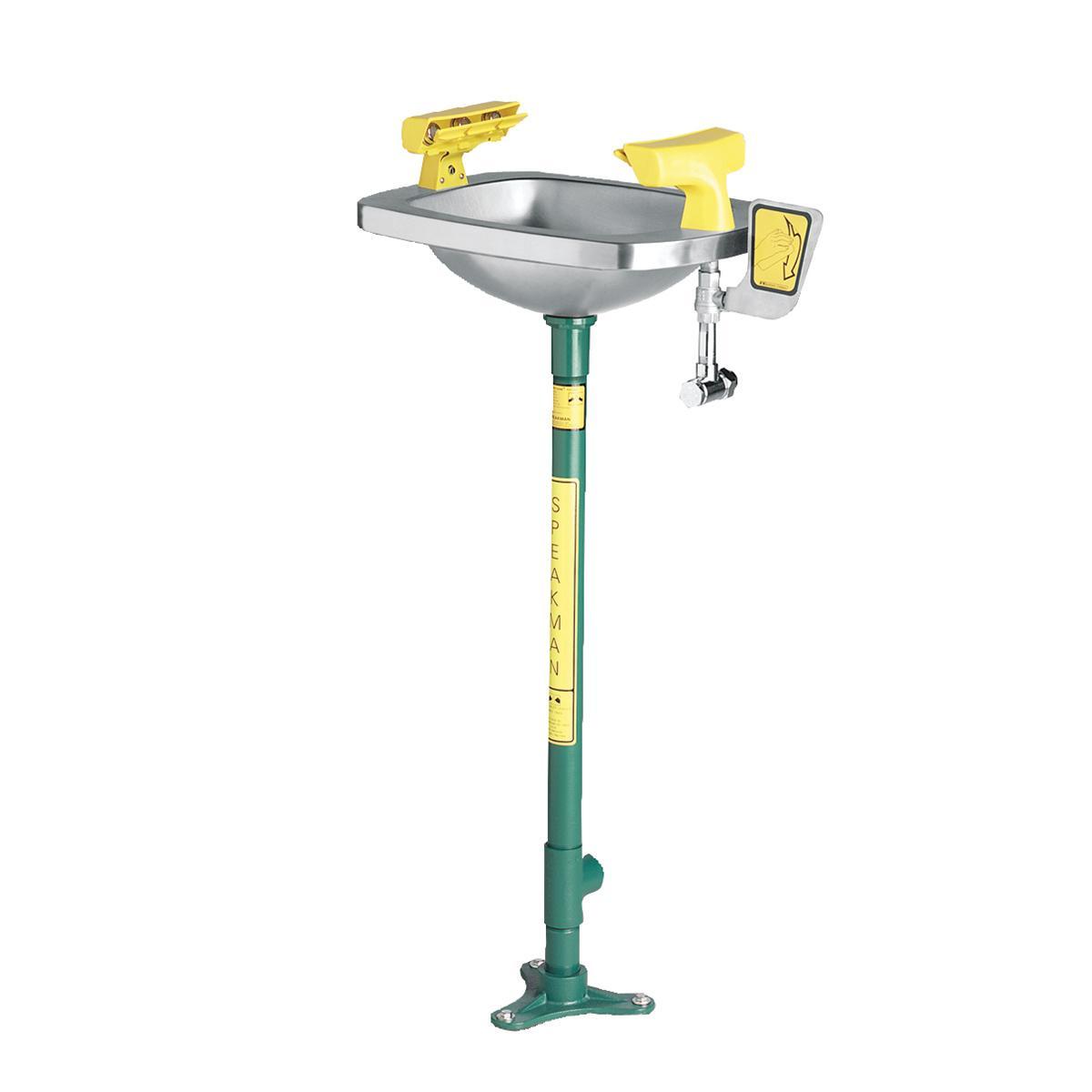

Speakman® SE-420 Select Substantial Rectangular Eye/Face Wash Bowl, Floor Mount, Push Handle Operation, ANSI/ISEA Z358.1
The Speakman® select series SE-420 pedestal mounted eye/face wash with stainless steel bowl features a full flood eye face wash configuration which has six aerated sprays for gentle yet thorough rinsing of the eyes and face in case of exposure to injurious materials. The soft aerated sprays allow users to comfortably flush their eyes for the ANSI recommended 15 minutes. A stainless steel push-handle activates these units. The SE-420's stanchion is 1-1/4 in galvanized steel with a DuraJade™ powder coated finish. The SE-420 is compliant to the ANSI/ISEA Z358.1 standard.
-
BrandSpeakman®
-
UPC671252000959
-
Manufacturer Part NumberSE-420
-
CountryUSA|Canada
-
Fitting MaterialStainless Steel
-

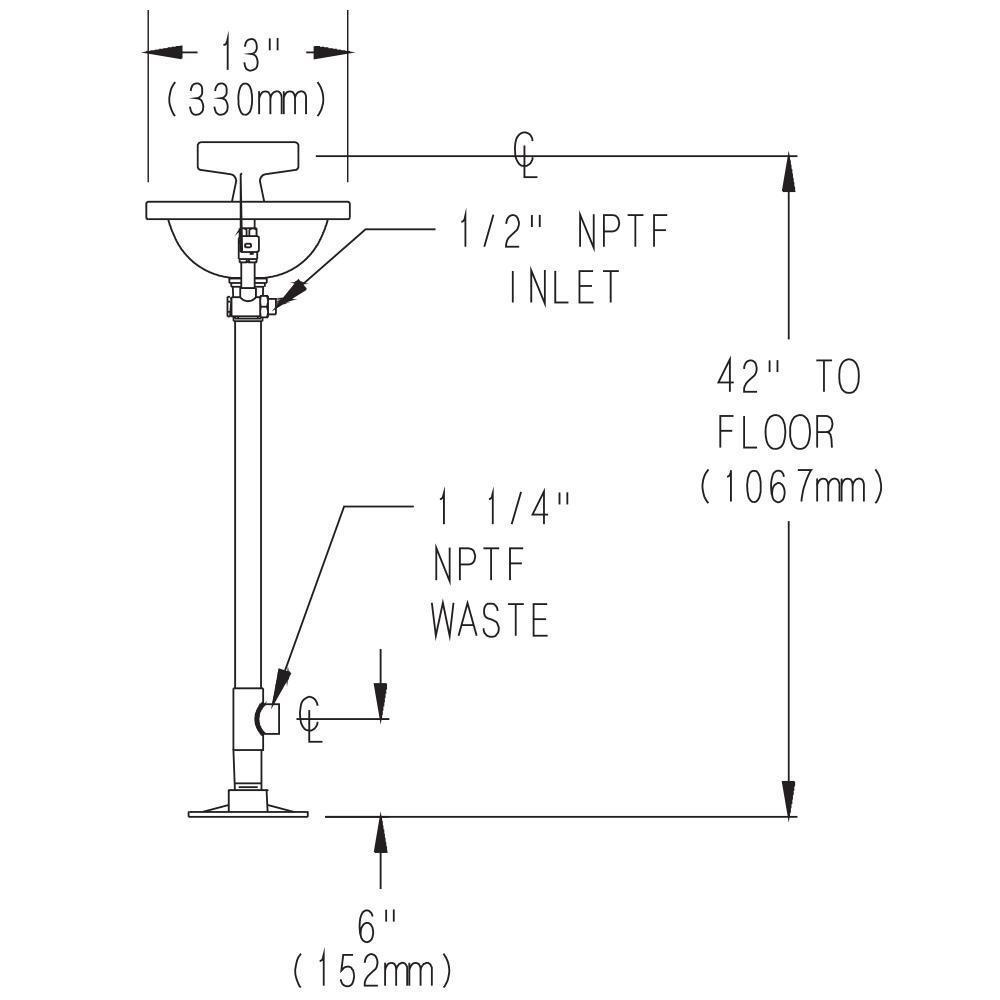

Fitting Size1/2 in FNPT Inlet, 1-1/4 in FNPT Drain
-
ColorChrome
-
TypeSubstantial Rectangular
-
Mounting TypeFloor
-
Height43 in
-
Width23-1/8 in
-
SeriesSelect
-
Number of Heads6
-
Specifications MetANSI/ISEA Z358.1
-
Operation TypePush Handle
-
Eye Wash Handle MaterialStainless Steel
- Pedestal mounted installation
- Six aerated spray heads
- Features a push-handle activation
- 9.3 gpm at 30 psi
-
UNSPSC46181810
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Z358.1 IAPMO|ADA Compliant|ARRA Compliant|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Specification Sheet
-
Instruction/Installation Manual
