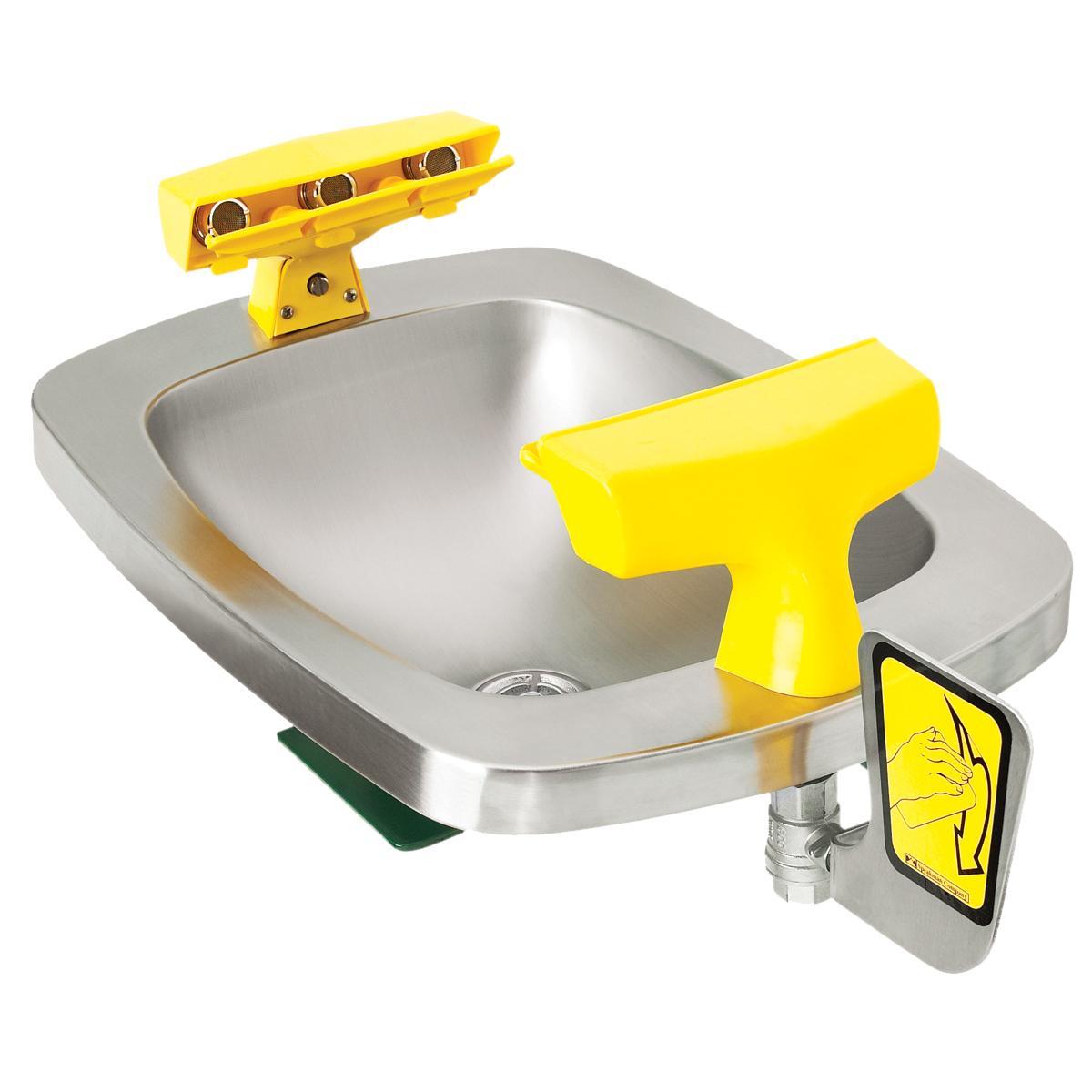

Speakman® SE-400 Select Large Rectangular Eye/Face Wash Bowl, Wall Mount, Push Handle Operation, ANSI/ISEA Z358.1
The Speakman® select series SE-400 eye and face wash stainless steel bowl wall mount system features a full flood eye face wash configuration which has six aerated sprays for gentle yet thorough rinsing of the eyes and face in case of exposure to injurious materials. The soft aerated sprays allow users to comfortably flush their eyes for the ANSI recommended 15 minutes. A stainless steel push-handle activates these units. The SE-400 is a wall mounted unit with a stainless steel bowl and comes complete with a wall mount bracket. The SE-400 is compliant to the ANSI/ISEA Z358.1 standard.
-
BrandSpeakman®
-
UPC671252000492
-
Manufacturer Part NumberSE-400
-
CountryUSA|Canada
-
Fitting MaterialStainless Steel
-
Fitting Size1/2 in FNPT Inlet
-
ColorChrome
-
TypeLarge Rectangular
-
Mounting TypeWall
-
Height15 in
-
Width23-1/8 in
-
SeriesSelect
-
Number of Heads6
-
Specifications MetANSI/ISEA Z358.1
-
Operation TypePush Handle
-
Eye Wash Handle MaterialStainless Steel
- Six aerated spray heads
- 9.3 gpm at 30 psi
-
UNSPSC46181810
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Z358.1 IAPMO|ADA Compliant|ARRA Certified|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Specification Sheet
-
Instruction/Installation Manual
