Gates® Power Transmission PowerGrip® 420L050 Light Timing Belt, 1/2 in W, 42 in OAL, 3/8 in Pitch, 112 Teeth, Neoprene
The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.
-
BrandGates® Power Transmission
-
UPC72053564334
-
Manufacturer Part Number420L050
-
CountryUSA|Canada
-
Pitch3/8 in
-
Temperature Range-30 to 180 deg F
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeLight
-
Minimum Pulley Diameter1.88 in
-
Width1/2 in
-
Series9257
-
Number of Teeth112
-
Overall Length42 in

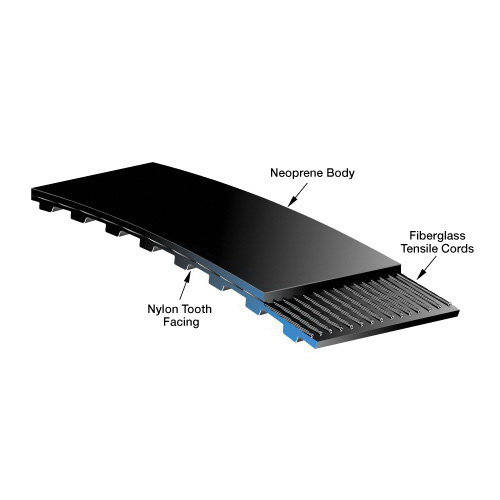

- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Nylon tooth facing provides a durable wear surface for long service life
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
- Neoprene body provides protection against grime, grease, oil and moisture
- The trapezoidal tooth profile makes this belt well suited for use in positioning applications
-
Alternative Part Number92572114
-
UNSPSC26111802
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
