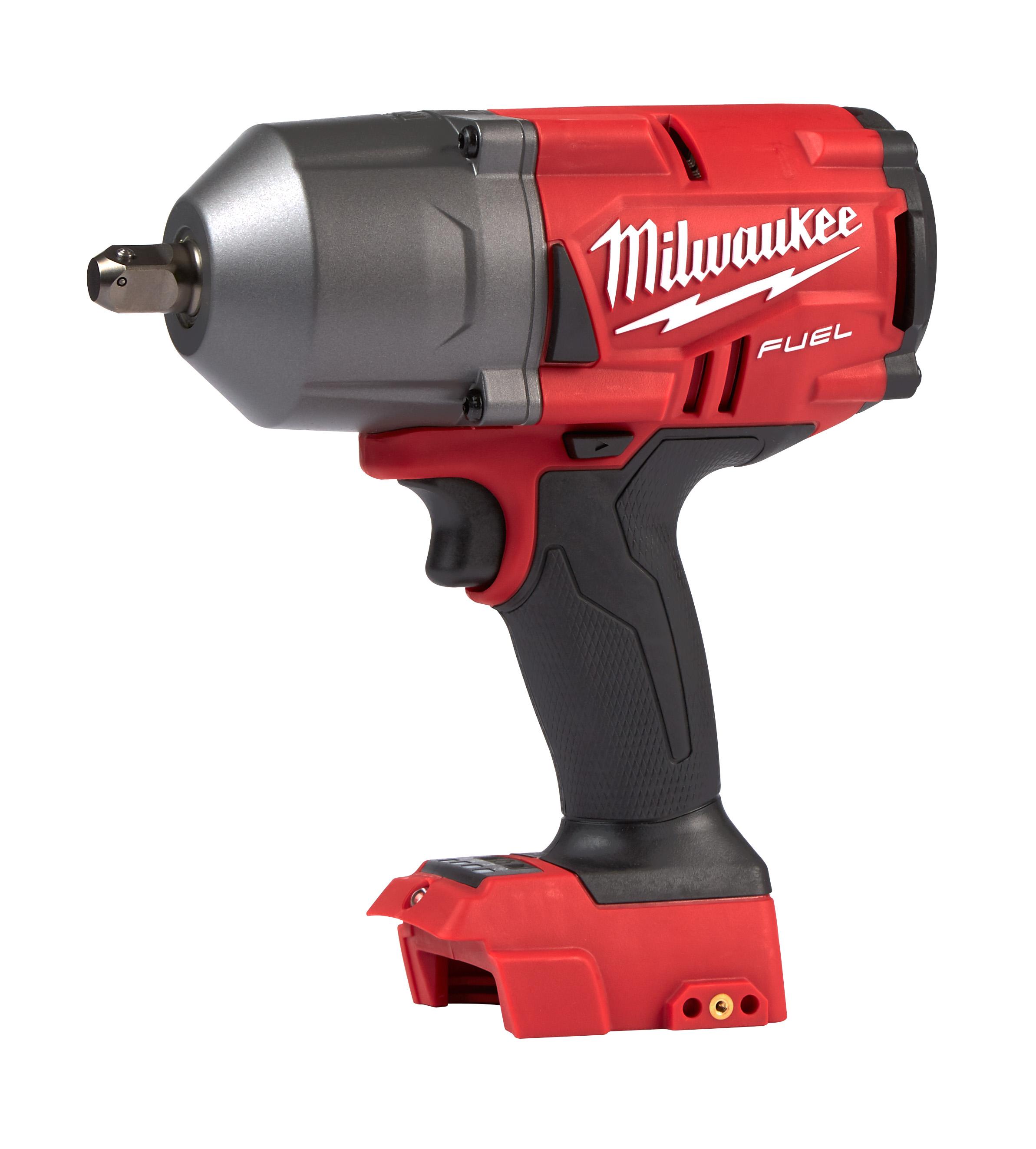

Milwaukee® M18 FUEL™ 2766-20 Gen II High Torque Bare Tool Cordless Impact Wrench, 1/2 in 4-Mode Straight Drive, 2400 bpm, 750/1100 ft-lb Torque, 18 V DC, 9-3/4 in OAL
The 2766 M18 FUEL™ high torque 1/2 in. impact wrench with pin detent provides a full corded replacement delivering 750ft-lbs of fastening torque and 1100ft-lbs of nut-busting torque. The industry's most compact cordless high torque impact wrench at 8.1 in. in length, this tool allows for more access in tight spaces. 4-Mode DRIVE CONTROL™ with bolt removal mode gives users the most control over their fasteners. Bolt removal mode gives the user more control when removing fasteners by slowing to 750 RPM once the fastener has been busted loose. This tool includes a 1/2 in. pin detent anvil which provides superior socket retention. A premium rubber overmold material gives you ultimate comfort during prolonged use while lasting longer against corrosive materials.
-
BrandMilwaukee®
-
UPC045242502219
-
Manufacturer Part Number2766-20
-
CountryUSA|Canada
-
Torque Rating750/1100 ft-lb
-
TypeGen II High Torque
-
Handle TypePistol Grip
-
Voltage Rating18 V DC
-
Housing MaterialGlass Filled Nylon/Rubber/Steel
-
Bare Tool/KitBare Tool
-
Battery TypeLithium-Ion
-
Dimensions3.15 in W x 8.125 in D x 10.75 in H
-
Speed0 to 950/1500/1800/1800 to 750 rpm
-
Blows per Minute2400 bpm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Overall Length9-3/4 in
- POWERSTATE™ brushless motor delivers up to 750 ft-lb of fastening torque and 1100 ft-lb of nut-busting torque
- Most compact cordless high torque impact wrench in its class at 8.1 in L
- Industry leading 4-mode drive control with bolt removal mode, allowing for ultimate control 0 to 950/1,500/1,800/1,800 to 750 rpm and 0 to 1,150/2,100/2,400/2,400 ipm
- Bolt removal mode provides maximum nut-busting torque to break fastener-free, then slows to 750 rpm for more control when removing fasteners
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 408L67 |
| Grainger | 408L67 |
| Grainger | 408L67 |
-
Alternative Part Number14193077
-
UNSPSC27112713
-
IDEA Index ID14193077
-
Package Description1/PK
-
Standards/ApprovalsCSA Certified|ETL Listed|UL Listed
-
Warranty5 years
-
