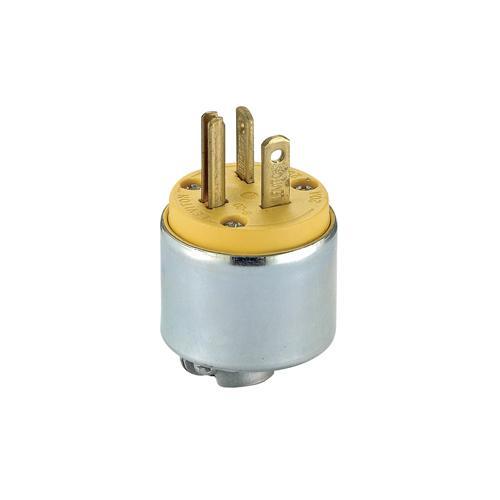

Leviton® 620PA Armored Cable Mount Grounding Straight Blade Plug, 250 V AC, 20 A, 2 Poles, 3 Wires, Yellow
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477842720
-
Manufacturer Part Number620PA
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
MaterialPVC/Steel
-
ColorYellow
-
TypeArmored Cable Mount Grounding
-
GradeCommercial
-
NEMA RatingNEMA 6-20P
-
Voltage Rating250 V AC
-
Cord Diameter0.245 to 0.7 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.55 in Dia x 1.89 in H
-
Number of Wires3
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Rugged PVC body resist moisture and chemicals
- Speed thread assembly screws tighten with just a few quick turns
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 12 AWG terminal accommodation
- Suited for outdoor cords
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LE74 |
-
Alternative Part Number7342021
-
UNSPSC39121402
-
IDEA Index ID7342021
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
Warranty10 Years Limited
-
SDS
