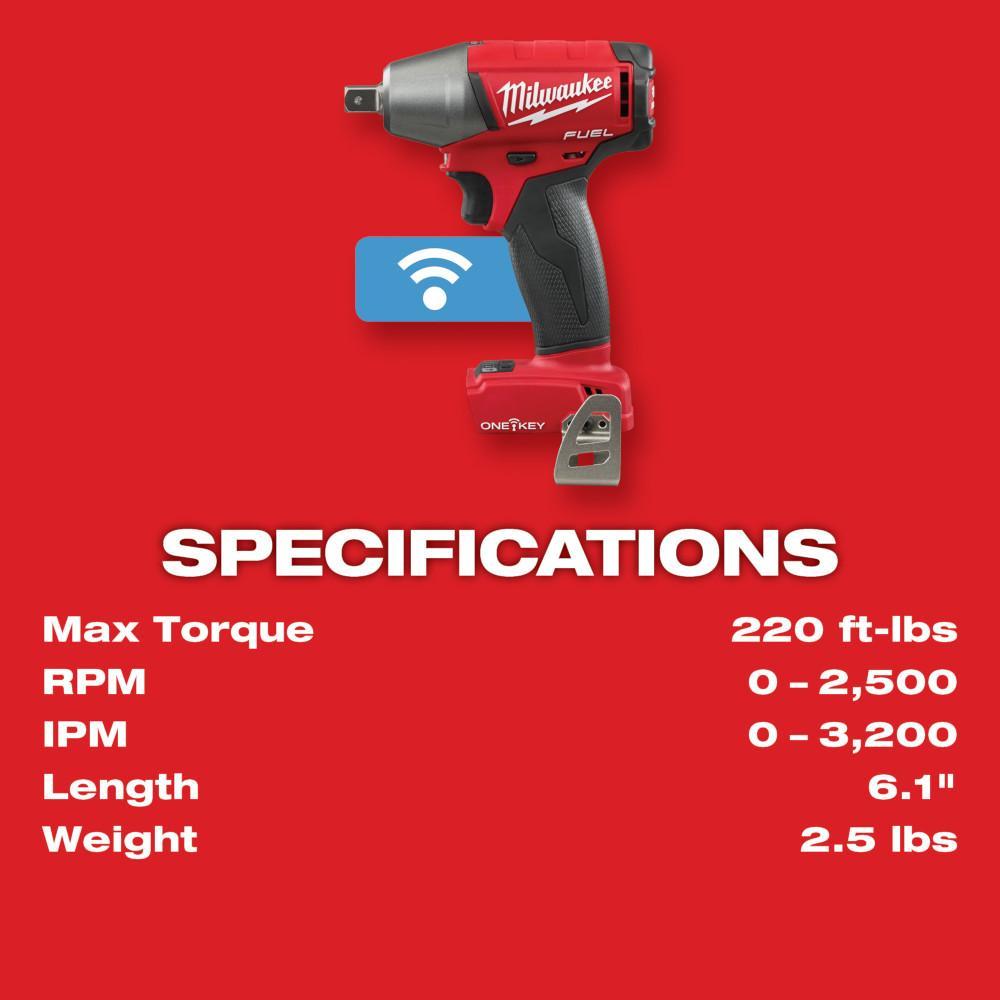

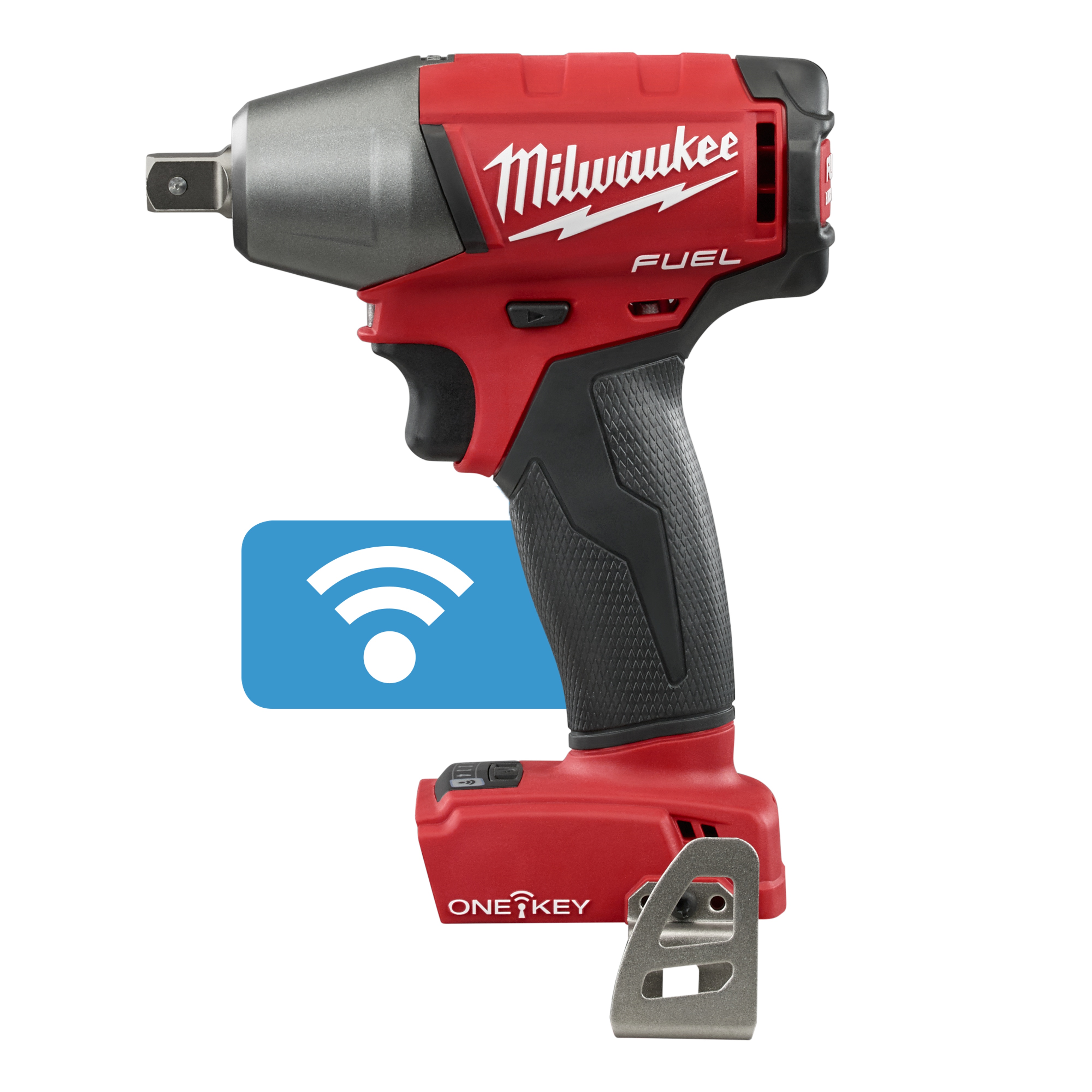

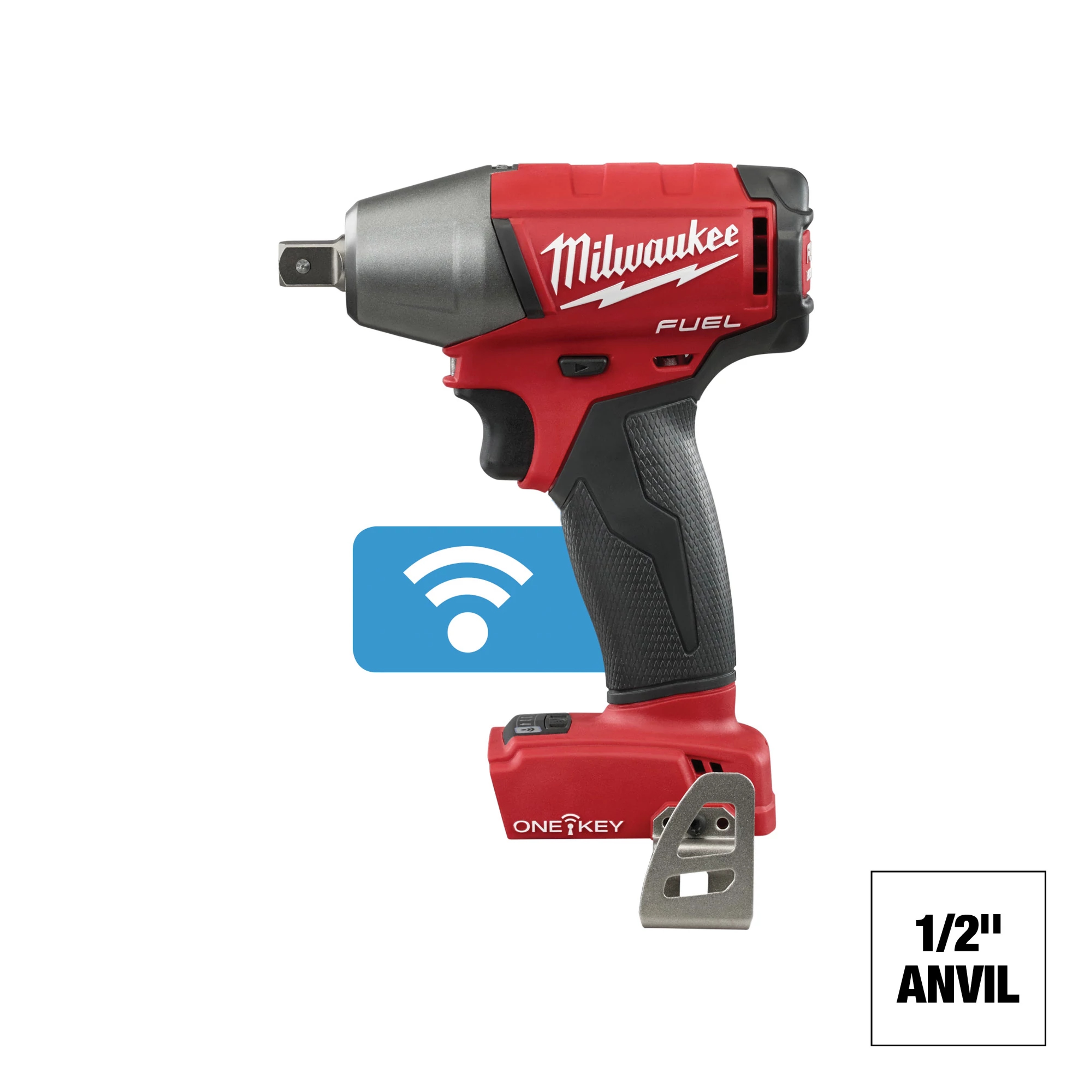

Milwaukee® M18™ FUEL™ 2759-20 Compact Cordless Impact Wrench With Pin Detent, 1/2 in Straight Drive, 0 to 3200 bpm, 220 ft-lb Torque, 18 V DC, 6-1/8 in OAL

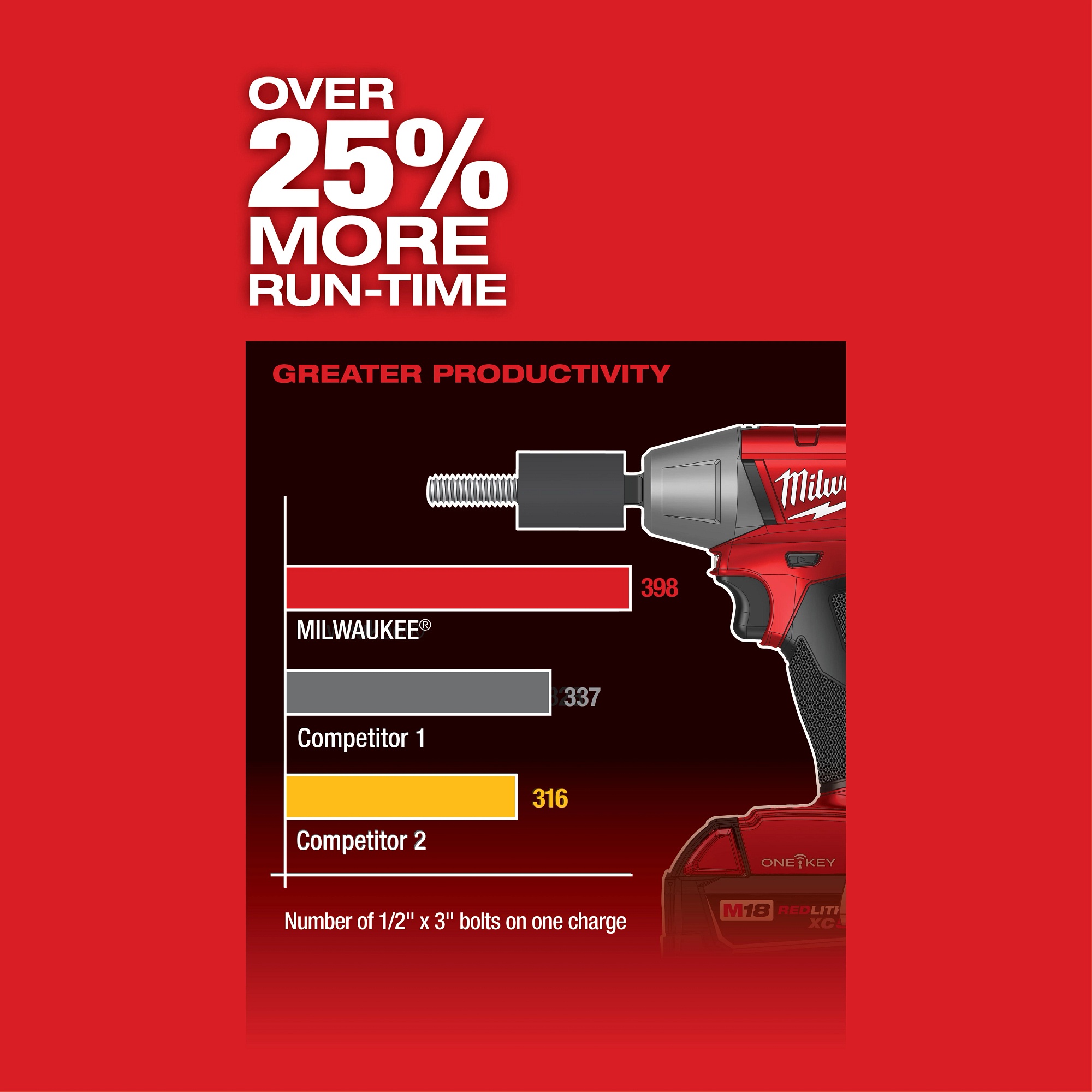

The M18 FUEL™ 1/2 in. Compact Impact Wrench is the most powerful tool in its class, delivering up to 220 ft-lbs of torque in a compact design. The POWERSTATE™ brushless motor not only provides unmatched power, but also greater efficiency, delivering up to 25% more run-time than the leading competitors. REDLINK Plus™ intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. REDLITHIUM™ Batteries deliver more work per charge and more work over the life of the pack than competitive batteries on the market. ONE-KEY™ enabled, this is the industry’s first impact wrench that wirelessly connects to a smart phone to provide unlimited customization and control of the tool’s performance. The ONE-KEY™ mobile app features predetermined set-ups for specific fasteners and materials, or provides complete control over output speed and power to customize the tool for the specific application at hand. Once the desired output performance is reached, the custom profile is then saved to the memory of the tool and the connection to the smart phone is no longer necessary. The tool’s memory supports up to 4 custom profiles that can be easily accessed with the touch of a button on the tool. Your custom profiles are also saved in the cloud so that they can be accessed at any time.
-
BrandMilwaukee®
-
UPC045242363919
-
Manufacturer Part Number2759-20
-
CountryUSA|Canada
-
Torque Rating220 ft-lb
-
TypeCompact
-
Handle TypeSoft Grip/T-Handle
-
Voltage Rating18 V DC
-
Control Type4-Mode Drive
-
Housing MaterialGlass Filled Nylon
-
Bare Tool/KitKit
-
Battery Capacity5 Ah
-
Battery IncludedNo
-
Battery TypeLithium-Ion
-
Speed0 to 2500 rpm
-
Blows per Minute0 to 3200 bpm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Overall Length6-1/8 in
- Customize, Track and Manage tools performance and location
- deliver more work per charge and more work over the life of the battery
- delivers 220 ft lbs of fastening torque

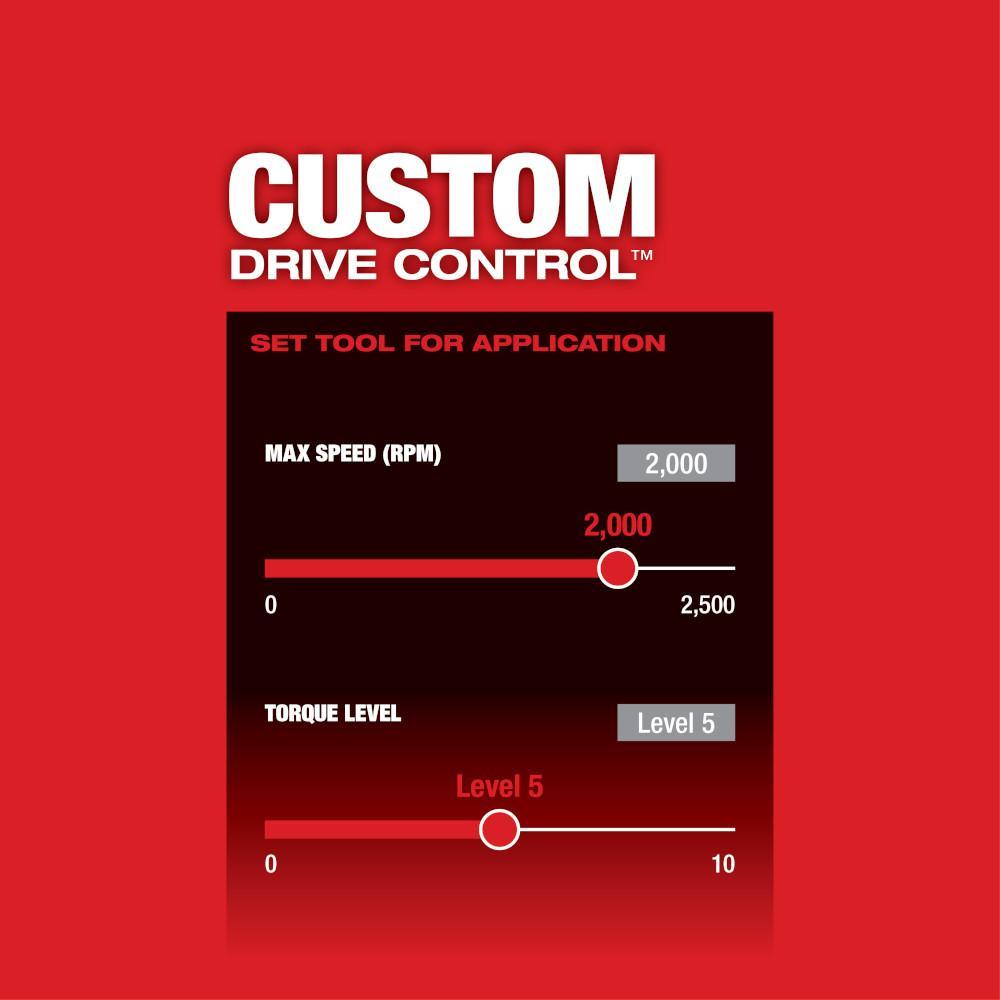

- Easily toggle between up to four custom performance profiles that can be saved to the memory of the tool
- ONE-KEY Compatible
- POWERSTATE Brushless Motor
- prevents damage to the tool and battery due to overloading or overheating
- REDLINK PLUS Intelligence
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 44YY80 |
| Ferguson | M275920 |
| Fastenal | 0290603 |
-
Alternative Part Number13924817
-
UNSPSC27112713
-
IDEA Index ID13924817
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty5 Year Limited Warranty
-
Owners/User Manual
