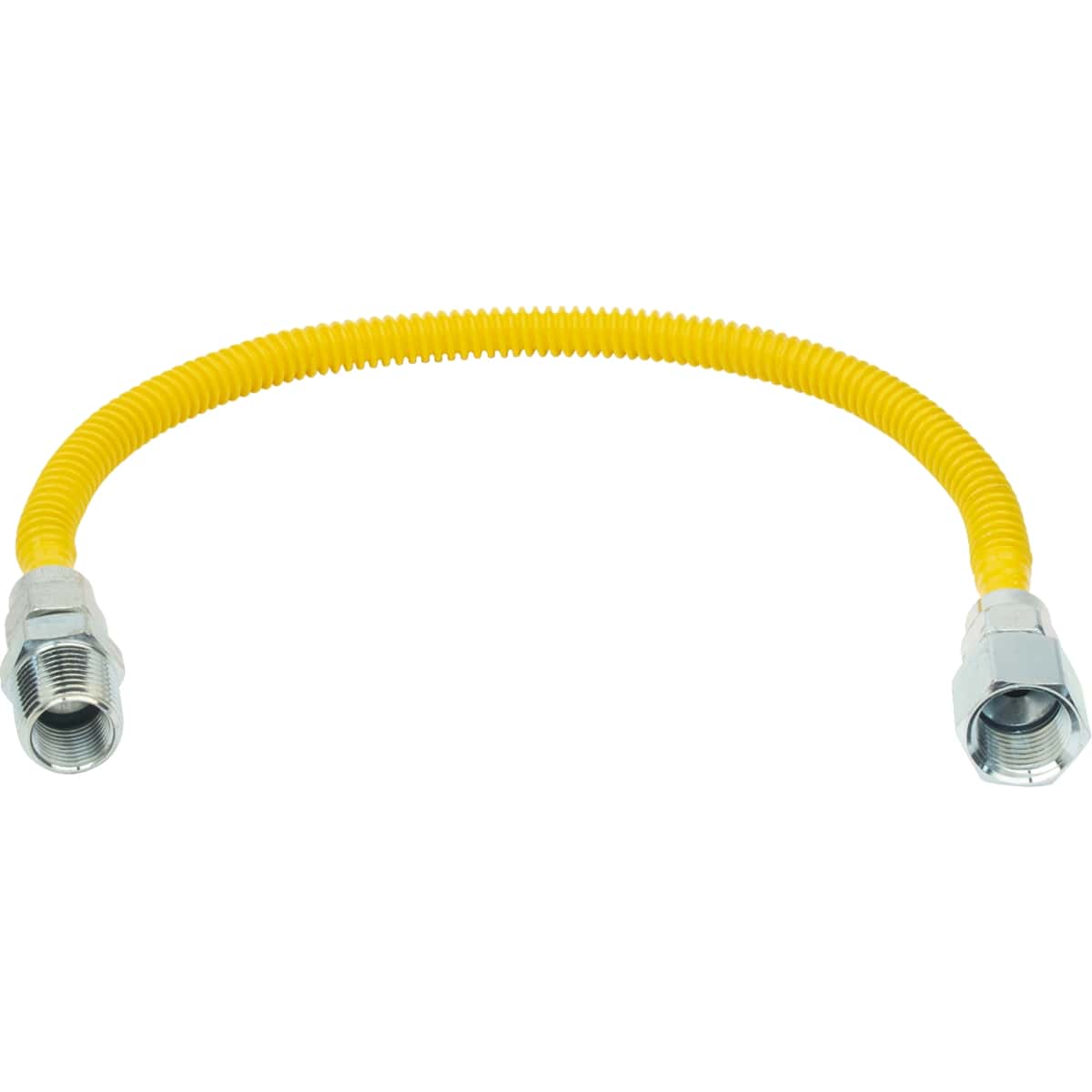

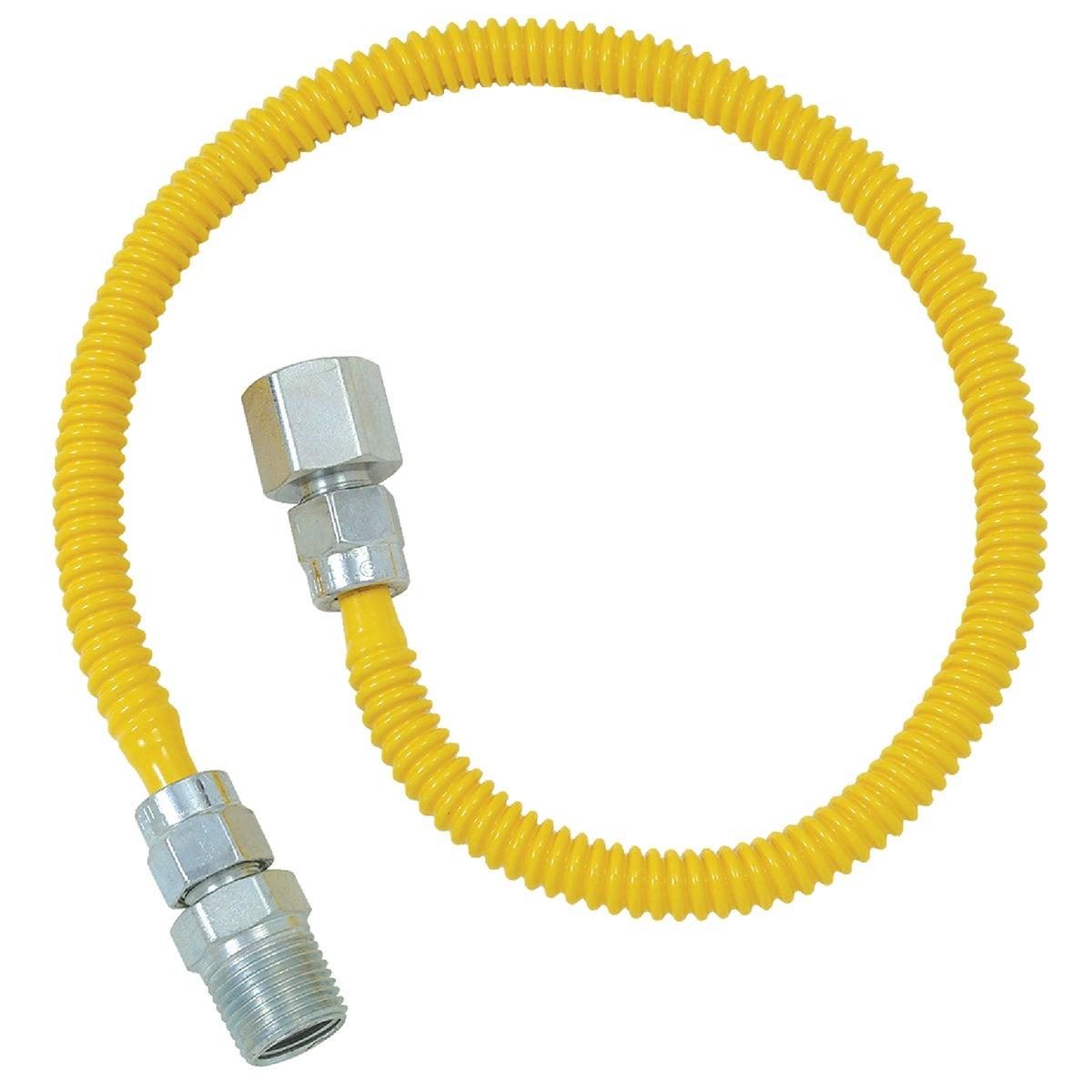

Dormont® SafetyShield® 0243453 10C, 10C-3132-18B Gas Connector, 1/4 in Nominal, MNPT x FNPT End Style, 43800 Btu/hr Natural Gas, 70080 Btu/hr Liquid Propane Flow Rate, 18 in L, 304 Stainless Steel
This 3/8 inch OD, 1/4 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1/2 inch MIP x 1/2 inch FIP adapters and is 18 inches in length. This CSA approved SafetyShield(R) gas connector features a premium antimicrobial coating to inhibit bacteria growth, improve corrosion and UV protection, and enhance flame and smoke resistance. The yellow coating is an industry recognized color for gas lines and provides extra corrosion protection from accidental contact with harmful chemicals that may be found in household products. It is commonly used for the installation of home appliances such as space heaters and wall heaters. Item comes in a bag.
-
BrandDormont®
-
UPC662447099216
-
Manufacturer Part Number0243453
-
CountryUSA
-
Temperature Rating-40 to 150 deg F
-
FinishYellow Coated
-
Material304 Stainless Steel
-
Working Pressure0.5 psi
-
Inside Diameter1/4 in
-
Domestic/ImportDomestic
-
Outside Diameter3/8 in
-
Length18 in
-
End StyleMNPT x FNPT
-
Flow Rate43800 Btu/hr Natural Gas, 70080 Btu/hr Liquid Propane
-
Nominal Size1/4 in
-
Series10C
- Designed for indoor and outdoor use
- Premium antimicrobial coating for increased safety, durability, and longevity
- 100 Percent factory leak tested
- ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology
- Smooth, burnished connector ends seal with less torque, making installation easier
| Cross-Reference Number |
|---|
| 442984 |
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Z21.24/CSA 6.10|ANSI Z21.75/CSA 6.27|ASTM A240|cSAus Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
-
Alternative Part Number10C-3132-18B
-
UNSPSC40141720
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
