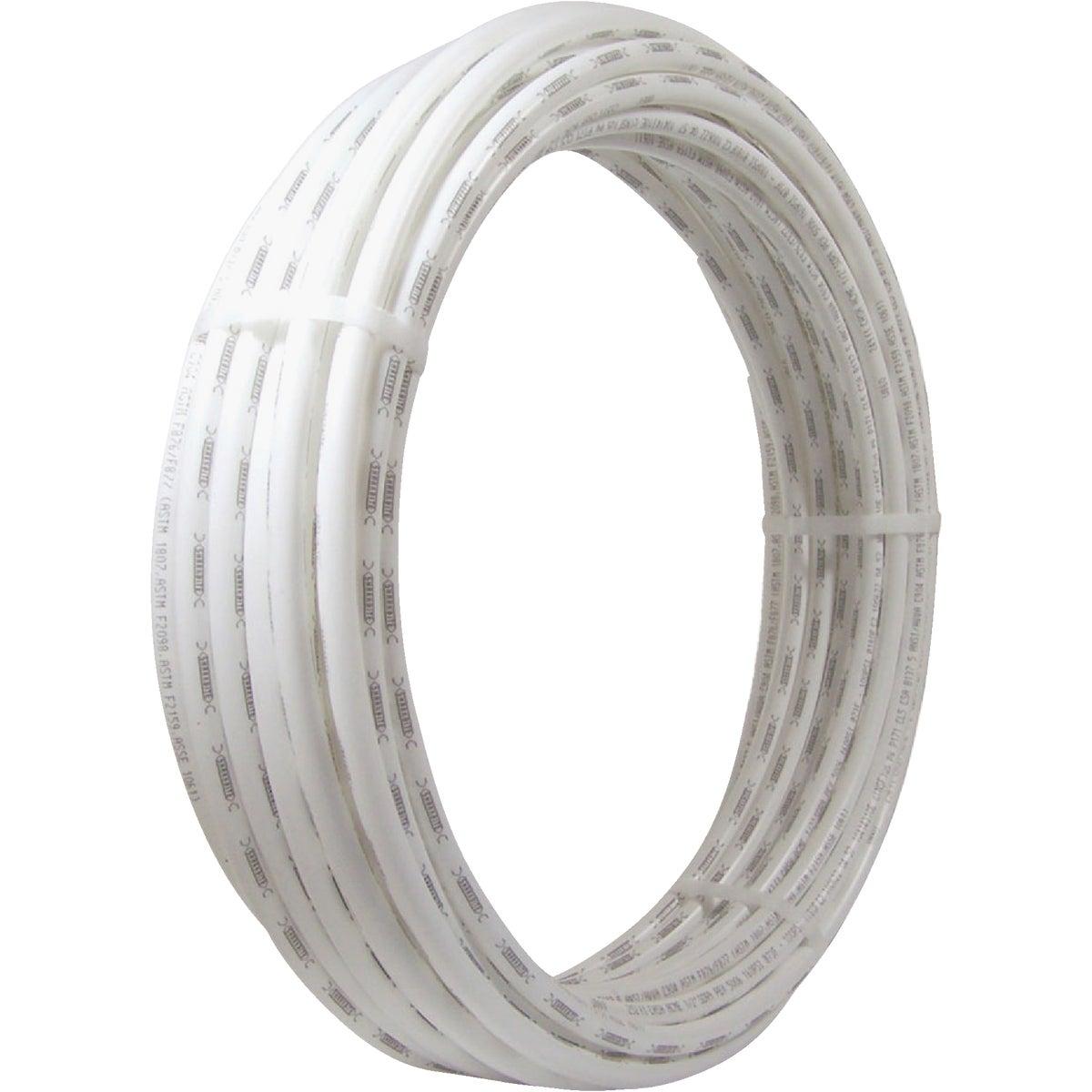

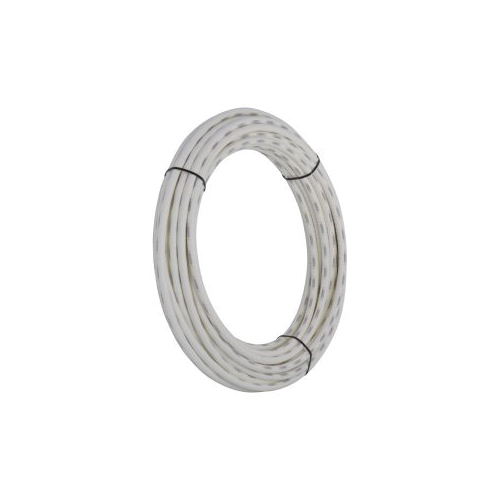

Sharkbite® U855W100 Tubing, 3/8 in Nominal, 0.35 in ID x 1/2 in OD x 100 ft Coil L x 0.07 in THK Wall, White, PEX, Domestic
SharkBite large-diameter Push-to-Connect fittings are the fastest way to connect PEX, copper, CPVC, PE-RT, or HDPE pipe in any combination. They are available in 1-1/4-IN, 1-1/2-IN and 2-IN CTS sizes. No soldering, clamps, unions, glue, or special tools are required. Simply insert the pipe and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. Changes can easily be made by rotating the fitting after installation. Removing the fitting is just as fast using a disconnect tool so fittings can be easily changed or reused. Designed with stainless steel gripping teeth for a secure connection, a chlorine-resistant O-ring for a long-lasting seal, and backed by a 25-year warranty.
-
BrandSharkbite®
-
UPC697285604278
-
Manufacturer Part NumberU855W100
-
CountryUSA
-
Temperature Rating33 to 200 deg F
-
MaterialPEX
-
ColorWhite
-
Wall Thickness0.07 in
-
Nominal Size3/8 in
-
Working Pressure160 psi
-
Inside Diameter0.35 in
-
Domestic/ImportDomestic
-
Outside Diameter1/2 in
-
Length100 ft
-
End StyleCTS
- Manufactured without an oxygen barrier for potable water systems
- The tubing is printed with a SharkBite® imprint pattern that provides a visual aid to determine if the tube has been inserted all the way into the SharkBite® push-fit fitting
- This feature only works if the tubing is cut between the SharkBite® imprint pattern
- Strong, flexible, resilient tubing that provides superior temperature performance
- Flexibility: reduces the number of fittings needed to complete jobs, saving on overall cost and reducing leak points
- Chlorine and UV resistance: Highest-rated chlorine resistance, one month UV resistance
- Freeze resistance: PEX pipe is freeze-resistant and can expand slightly if frozen, PEX will contract back to its original form when thawed, PEX is not freeze-proof, PEX should be insulated to prevent freezing
- Insertion depth markings: Pre-printed insertion depth markings for SharkBite® Universal Push-to-Connect fittings
- Lead free
-
UNSPSC40180000
-
Standards/ApprovalsASTM F877-2011A|ASTM F876/877|AWWA C904|CSA B137.5-2009|ANSI/NSF 14/61/62
-
Warranty25 Years
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
