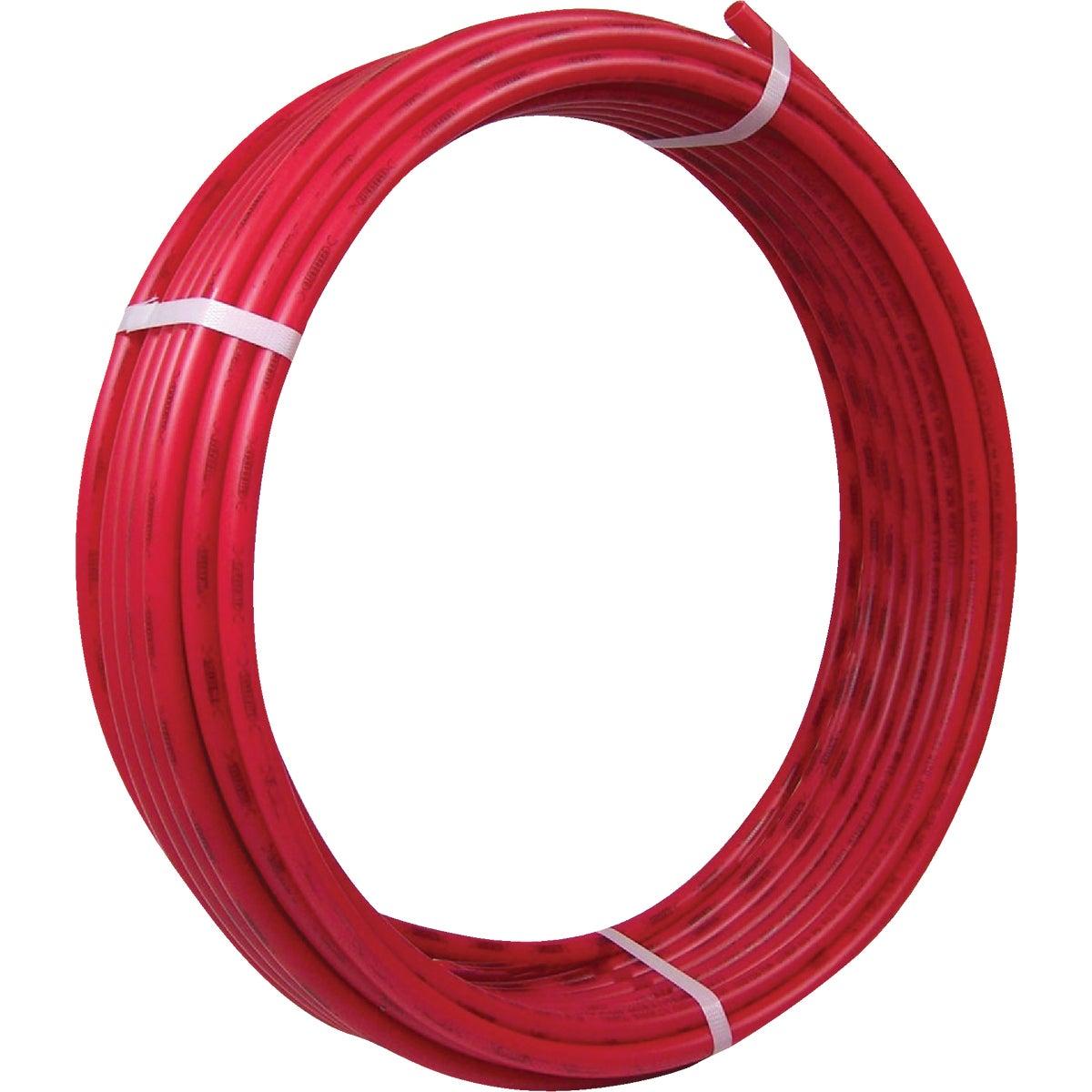

Sharkbite® U860R100 Tubing, 1/2 in Nominal, 0.475 in ID x 5/8 in OD x 100 ft Coil L x 0.07 in THK Wall, Red, PEX, Domestic
SharkBite PEX tubing is cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. PEX Pipe is durable, flexible and corrosion resistant. Manufactured without an oxygen barrier for potable water systems (available in white, blue, and red). A repeating SharkBite imprint patterns provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint patterns. In addition to Potable Water Supply SharkBite PEX meets UL Standard for Plastic Piping in Fire Systems.
-
BrandSharkbite®
-
UPC697285251007
-
Manufacturer Part NumberU860R100
-
CountryUSA
-
Temperature Rating33 to 200 deg F
-
MaterialPEX
-
ColorRed
-
Wall Thickness0.07 in
-
Nominal Size1/2 in
-
Working Pressure160 psi
-
Inside Diameter0.475 in
-
Domestic/ImportDomestic
-
Outside Diameter5/8 in
-
Length100 ft
-
End StyleCTS
- Manufactured without an oxygen barrier for potable water systems
- The tubing is printed with a SharkBite® imprint pattern that provides a visual aid to determine if the tube has been inserted all the way into the SharkBite® push-fit fitting
- This feature only works if the tubing is cut between the SharkBite® imprint pattern
- Strong, flexible, resilient tubing that provides superior temperature performance
- Flexibility: reduces the number of fittings needed to complete jobs, saving on overall cost and reducing leak points
- Chlorine and UV resistance: Highest-rated chlorine resistance, one month UV resistance
- Freeze resistance: PEX pipe is freeze-resistant and can expand slightly if frozen, PEX will contract back to its original form when thawed, PEX is not freeze-proof, PEX should be insulated to prevent freezing
- Insertion depth markings: Pre-printed insertion depth markings for SharkBite® Universal Push-to-Connect fittings
- Lead free
-
UNSPSC40180000
-
Standards/ApprovalsASTM F877-2011A|ASTM F876/877|AWWA C904|CSA B137.5-2009|ANSI/NSF 14/61/65
-
Warranty25 Years
-
