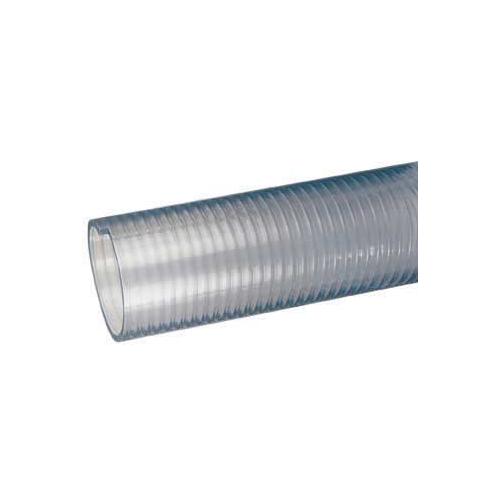

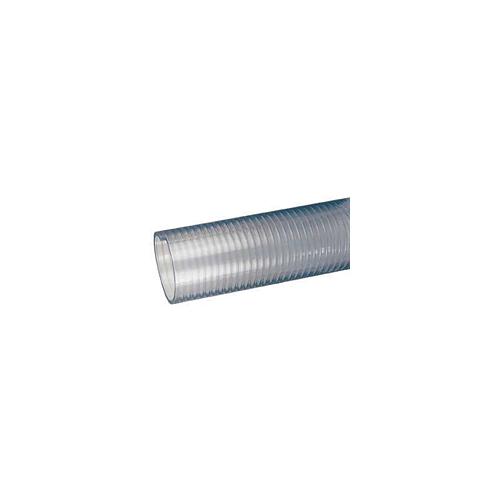

Tigerflex 3" TIGER FLEX FOOD GRADE HOSE SPI FT-300
Tigerflex® FT300X100 FT Heavy Duty Suction Hose, Hose End Style, 100 ft L, 55 psi Working, PVC Tube, Domestic
-
BrandTigerflex™
-
UPC822353016985
-
Manufacturer Part NumberFT300X100
-
CountryUSA
-
Temperature Rating-4 to 65 deg F
-
MaterialPVC Tube
-
ColorClear
-
TypeHeavy Duty
-
SeriesFT
-
Working Pressure55 psi
-
Inside Diameter3 in
-
Domestic/ImportDomestic
-
Outside Diameter3.42 in
-
Length100 ft
-
End StyleHose
- Phthalate free
- Smooth outer cover, provides increased pressure rating and smooth surface for banding
- Transparent construction allows for visual confirmation of material flow
-
Package DescriptionEACH
-
Standards/Approvals3-A Compliant|BSE/TSE|FDA|EU 2002/95/EC|USDA
-
Catalog
-
Specification Sheet
-
Service Manual
