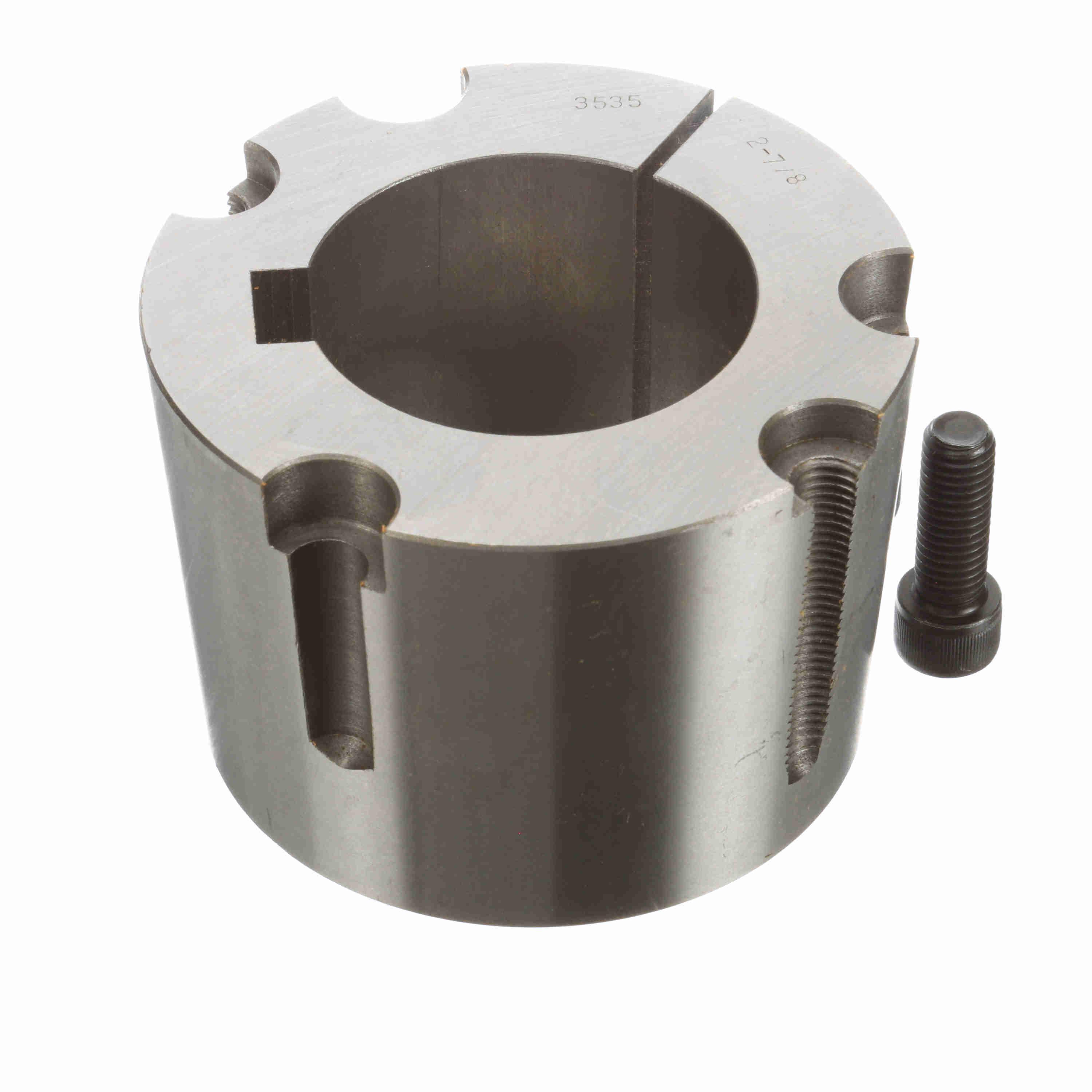

Browning® 3750924 Taper Lock Bushing, 2-7/8 in Dia Bore, 5 in Dia Barrel, 3-1/2 in OAL, Steel
Browning® 3750924 Taper Lock Bushing, 2-7/8 in Dia Bore, 5 in Dia Barrel, 3-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289618736
-
Manufacturer Part Number3750924
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating44800 in-lb
-
Screw Size1/2 x 1-1/2 in
-
Number of Bolt Holes3
-
Barrel Diameter5 in
-
Keyway Size5/8 x 5/16 in
-
Bolt Circle Diameter4.83 in
-
Bore Diameter2-7/8 in
-
Overall Length3-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Mounts flush in products - No protruding flanges to interfere with the drive
-
Alternative Part Number3535X 2 7/8
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
