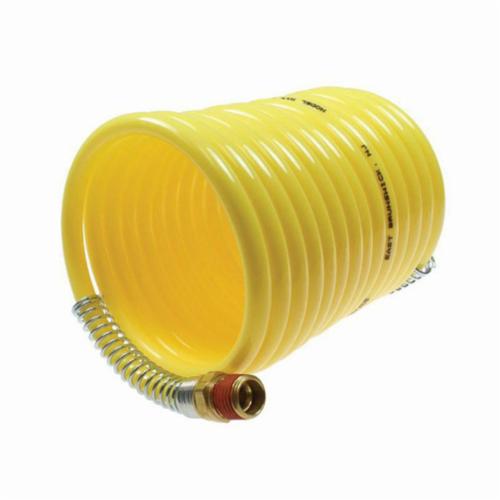

Coilhose® N38-25B Coiled Air Hose, 3/8 in Nominal, 3/8 in MPT Swivel End Style, 25 ft L, 165 psi at 70 deg F Working, Nylon, Domestic
Coilhose® N38-25B Coiled Air Hose, 3/8 in Nominal, 3/8 in MPT Swivel End Style, 25 ft L, 165 psi at 70 deg F Working, Nylon, Domestic
-
BrandCoilhose®
-
UPC029292277761
-
Manufacturer Part NumberN38-25B
-
CountryUSA
-
Temperature Rating-60 to 200 deg F
-
MaterialNylon
-
ColorYellow
-
Wall Thickness0.045 +/-0.003 in
-
Nominal Size3/8 in
-
SeriesN38
-
Working Pressure165 psi at 70 deg F
-
Domestic/ImportDomestic
-
Outside Diameter0.47 in
-
Length25 ft
-
End Style3/8 in MPT Swivel
- 9.5 in retracted length
- 20 ft working length
- 5-5/8 in OD coil
- This lightweight, permanently-coiled hose is manufactured from tough, abrasion resistant nylon 11
- Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules
- Spring guards for additional strain relief are also provided on all assemblies, except 3/4 in
- Heavy duty brass fittings assure longer service life in rugged industrial environments
- High quality nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications
-
UNSPSC40142002
-
Package Description1/PK
-
