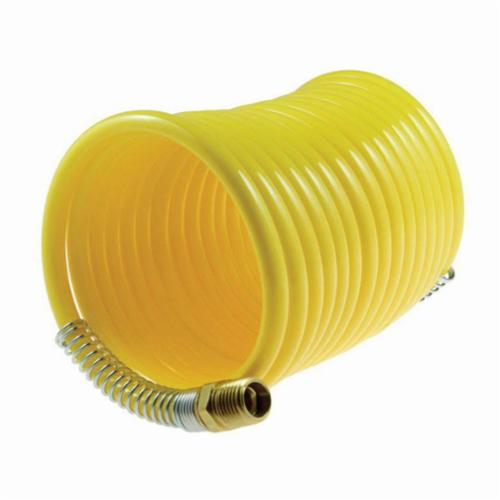

Coilhose® N12-25 Coiled Air Hose, 1/2 in Nominal, 1/2 in MPT Rigid End Style, 25 ft L, 170 psi at 70 deg F Working, Nylon, Domestic
Coilhose® N12-25 Coiled Air Hose, 1/2 in Nominal, 1/2 in MPT Rigid End Style, 25 ft L, 170 psi at 70 deg F Working, Nylon, Domestic
-
BrandCoilhose®
-
UPC029292278881
-
Manufacturer Part NumberN12-25
-
CountryUSA
-
Temperature Rating-60 to 200 deg F
-
MaterialNylon
-
ColorYellow
-
Wall Thickness0.062 +/-0.003 in
-
Nominal Size1/2 in
-
SeriesN12
-
Working Pressure170 psi at 70 deg F
-
Domestic/ImportDomestic
-
Outside Diameter5/8 in
-
Length25 ft
-
End Style1/2 in MPT Rigid
- 7.5 in retracted length
- 20 ft working length
- 9 in OD coil
- This lightweight, permanently-coiled hose is manufactured from tough, abrasion resistant nylon 11
- Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules
- Spring guards for additional strain relief are also provided on all assemblies, except 3/4 in
- Heavy duty brass fittings assure longer service life in rugged industrial environments
- High quality nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications
-
UNSPSC40142002
-
Package Description1/PK
-
