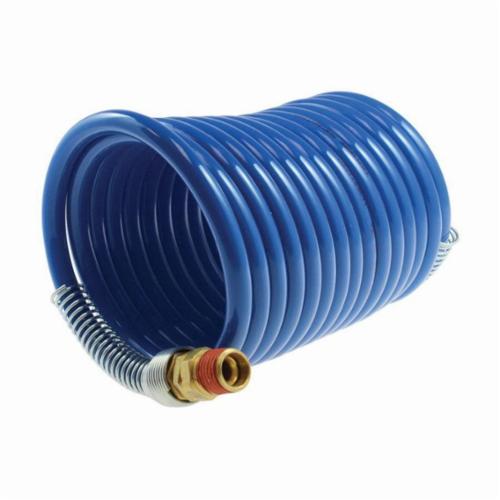

Coilhose® S38-12B Stowaway® S38 Heavy Duty Coiled Air Hose, 3/8 in Nominal, 3/8 in MPT Swivel End Style, 12 ft L, 230 psi at 70 deg F Working, Nylon, Domestic
Coilhose® S38-12B Stowaway® S38 Heavy Duty Coiled Air Hose, 3/8 in Nominal, 3/8 in MPT Swivel End Style, 12 ft L, 230 psi at 70 deg F Working, Nylon, Domestic
-
BrandCoilhose®
-
UPC029292286213
-
Manufacturer Part NumberS38-12B
-
CountryUSA
-
Temperature Rating-60 to 200 deg F
-
MaterialNylon
-
ColorBlue
-
TypeHeavy Duty
-
Wall Thickness0.062 +/-0.003 in
-
Nominal Size3/8 in
-
SeriesStowaway® S38
-
Working Pressure230 psi at 70 deg F
-
Domestic/ImportDomestic
-
Outside Diameter1/2 in
-
Length12 ft
-
End Style3/8 in MPT Swivel
- 5 in retracted length
- 9.6 ft working length
- 5-5/8 in coil OD
- Heavy duty nylon air hose for general industrial applications requiring increased resistance to abrasion and petroleum-based solvents
- Single-layer nylon tube with extra-heavy wall thickness for resistance to chemicals and extreme temperatures and increased resistance to oil, grease, gasoline and abrasion
- Two 3/8 in factory-installed, brass male NPT swivel fittings
- High quality brass fittings provide strong and durable connection
- Nylon provides increased retraction force
-
UNSPSC40142002
-
Package Description1/PK
-
