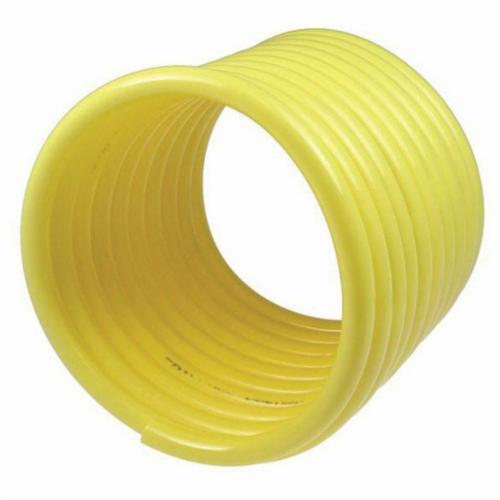

Coilhose® N14-100 Coiled Air Hose, 1/4 in Nominal, 100 ft L, 185 psi at 70 deg F Working, Nylon, Domestic
Coilhose® N14-100 Coiled Air Hose, 1/4 in Nominal, 100 ft L, 185 psi at 70 deg F Working, Nylon, Domestic
-
BrandCoilhose®
-
UPC029292275736
-
Manufacturer Part NumberN14-100
-
CountryUSA
-
Temperature Rating-60 to 200 deg F
-
MaterialNylon
-
ColorYellow
-
Wall Thickness0.033 +/-0.003 in
-
Nominal Size1/4 in
-
SeriesN14
-
Working Pressure185 psi at 70 deg F
-
Domestic/ImportDomestic
-
Outside Diameter0.308 in
-
Length100 ft
- 38.2 in retracted length
- 80 ft working length
- 3-1/2 in OD coil
- This lightweight, permanently-coiled hose is manufactured from tough, abrasion resistant nylon 11
- Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules
- Spring guards for additional strain relief are also provided on all assemblies, except 3/4 in
- Heavy duty brass fittings assure longer service life in rugged industrial environments
- High quality nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications
-
UNSPSC40142002
-
Package Description1/PK
-
Specification Sheet
-
Catalog
