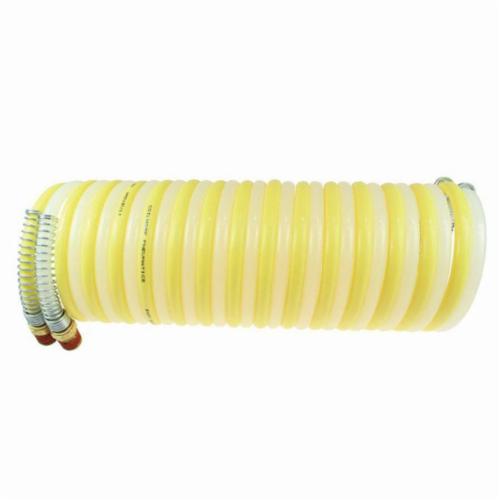

Coilhose® N14Y-N14N-25B Twin Bonded Coiled Air Hose, 1/4 in Nominal, 1/4 in MPT Swivel End Style, 25 ft L, 185 psi at 70 deg F Working, Nylon, Domestic
Twin bonded self-storing nylon air hose provides an efficient way to service applications that require air and fluid transport or air and an exhaust return. The intermittent bond allows fittings to be installed without damaging the individual tubes. One yellow tube and one natural colored tube simplify tube identification. Cut-to length coils are supplied with swivel fittings that have a pre-applied thread sealant.
-
BrandCoilhose®
-
UPC029292501071
-
Manufacturer Part NumberN14Y-N14N-25B
-
CountryUSA
-
Temperature Rating-60 to 200 deg F
-
MaterialNylon
-
ColorYellow/Natural
-
TypeTwin Bonded
-
Wall Thickness0.033 +/-0.003 in
-
Nominal Size1/4 in
-
SeriesN14Y-N14N
-
Working Pressure185 psi at 70 deg F
-
Domestic/ImportDomestic
-
Outside Diameter0.308 in
-
Length25 ft
-
End Style1/4 in MPT Swivel
- 19 in retracted length
- 20 ft working length
- 3-1/2 in OD coil
- Excellent for use on overhead cranes
- Colored tubes simplify identification
- Swivel fittings come with factory applied thread sealant
- Natural colored tube allows visual verification of fluid movement
- High quality brass fittings provide strong and durable connection
- Nylon provides increased retraction force
-
UNSPSC40142002
-
Package Description1/PK
-
Specification Sheet
-
Catalog
