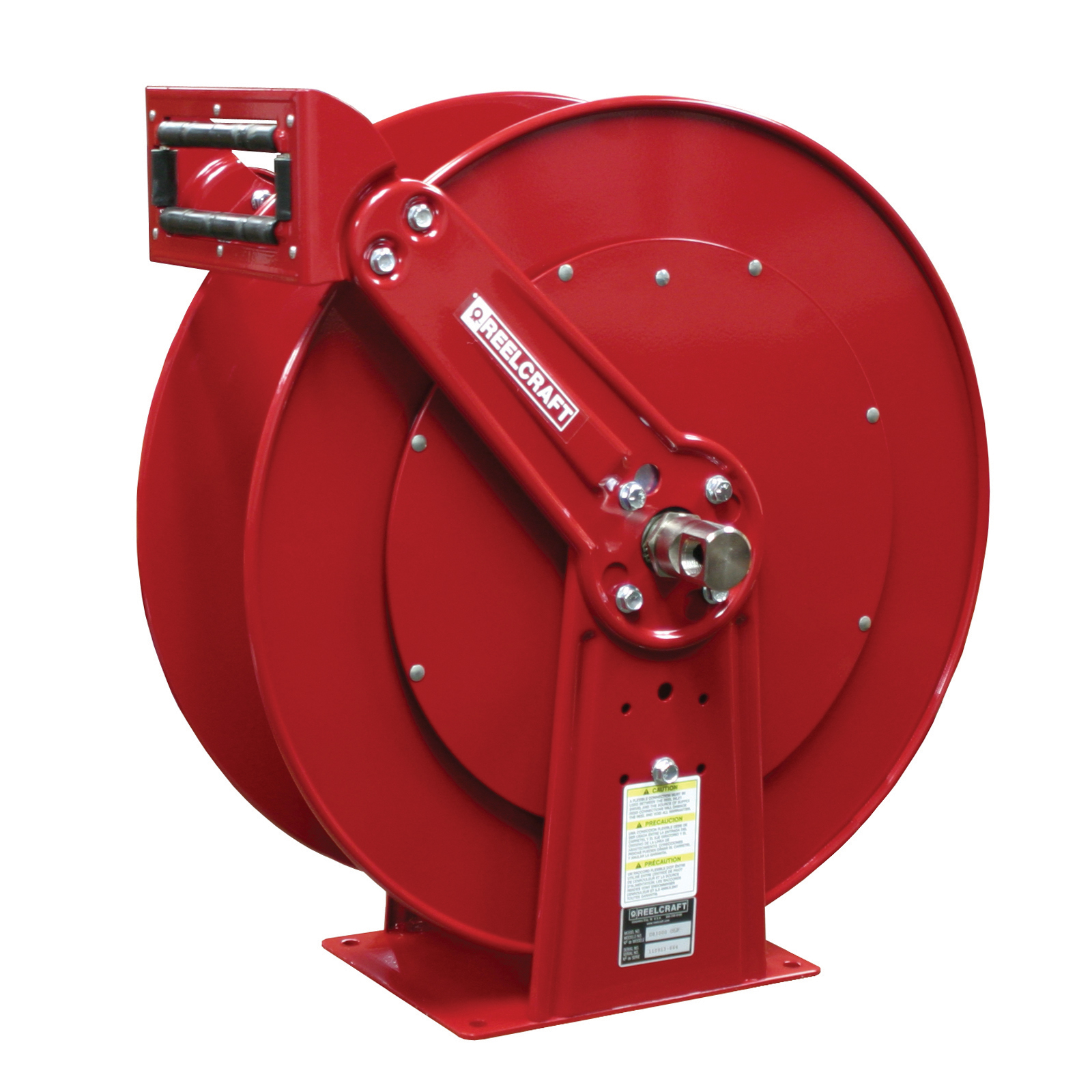

Reelcraft® D83000 OLP 80000 Full Flow Swivel Hose Reel, 3/4 in ID x 1.075 in OD x 75 ft L Hose, 500 psi Pressure, Domestic
The series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All -steel construction and a baked on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications.
-
BrandReelcraft®
-
UPC699567020714
-
Manufacturer Part NumberD83000 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Steel
-
Pressure Rating500 psi
-
ColorRed
-
TypeFull Flow Swivel
-
Wheel Diameter24 in
-
Series80000
-
Hose Capacity3/4 in ID x 1.075 in OD x 75 ft L
-
Dimensions24 in L x 14-1/4 in W x 25-3/8 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
- Reinforced steel - the steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight, the unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Long life drive spring - the unitized cast aluminum fluid path with built-in declutching arbor virtually eliminates possibility of leakage and spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
- 3/4 in female NPTF inlet
- 150 deg F maximum temperature rating
- Without hose
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
