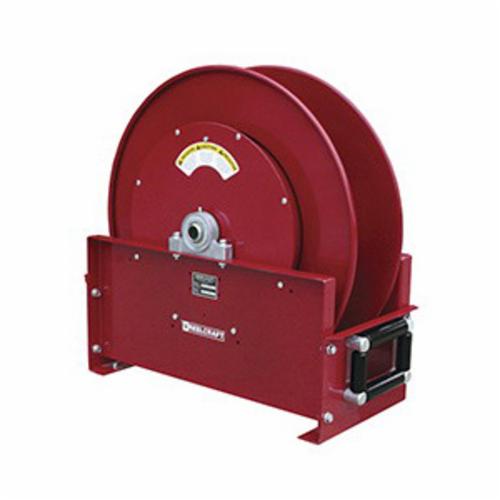

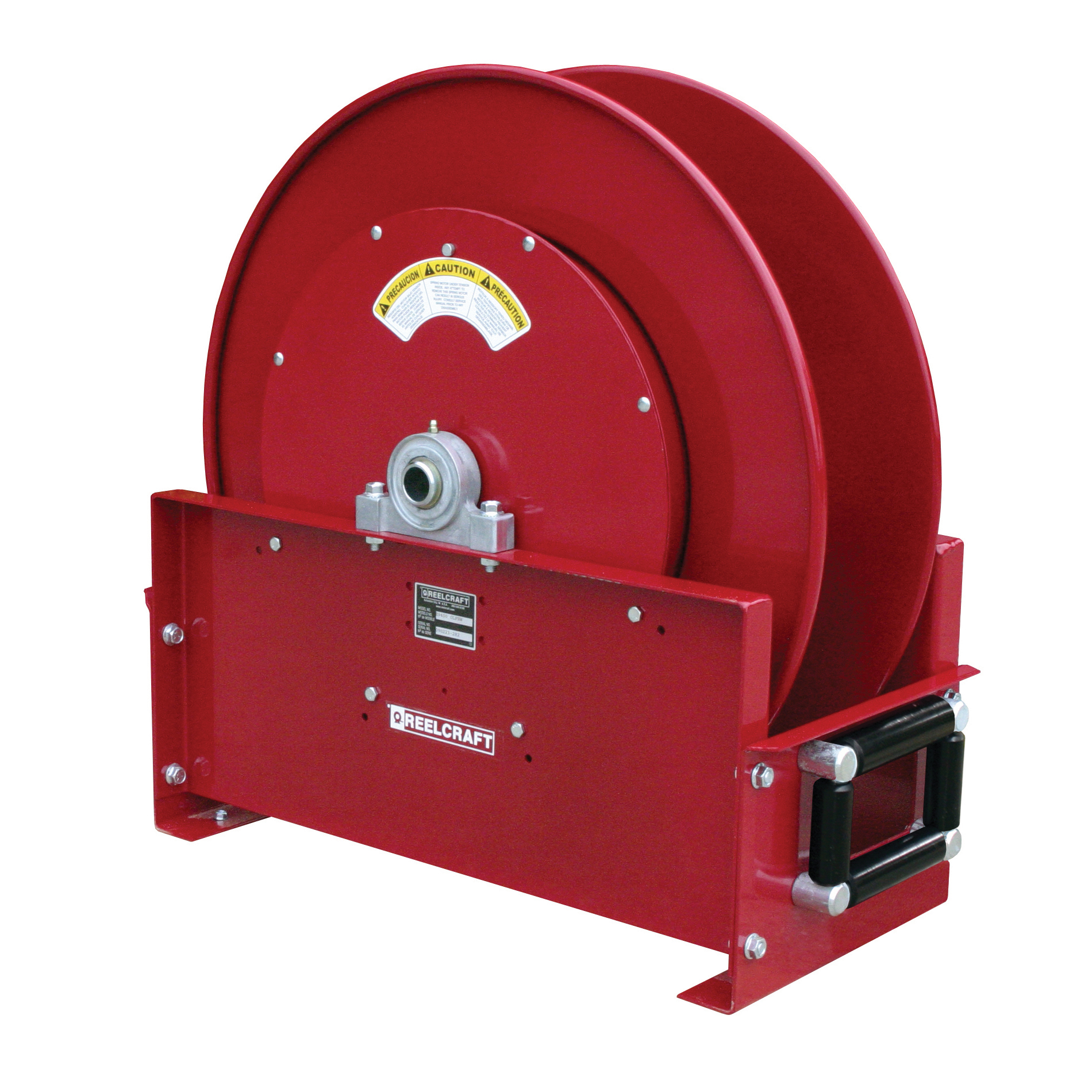

Reelcraft® D9300 OLPBW 9000 Low Pressure Ultimate Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 75 ft L Hose, 500 psi Pressure, Domestic
The series 9000 mobile base reels offer the greatest amount of stability for high volume air, water, fuel and petroleum. Ideal for portable service trucks, permanent service or plant work areas. A durable baked on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy duty applications. Basic reels without hose will handle air, water, or oil, consult Reelcraft® for other applications.
-
BrandReelcraft®
-
UPC699567001829
-
Manufacturer Part NumberD9300 OLPBW
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating500 psi
-
ColorRed
-
TypeLow Pressure Ultimate Duty
-
Mounting TypeTruck
-
Series9000
-
Hose Capacity3/4 in ID x 1-3/40 in OD x 75 ft L
-
Dimensions26-3/8 in H x 26-1/4 in W x 12 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialSteel
- Substantial base frame - full width frame has the greatest amount of mounting area and overall strength of reels within its class
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding, only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Robust latching mechanism - latch and ratchet are made of heavy duty cast aluminum with substantial surface area to light weight the opportunity for premature wear
- 1/2 in female NPTF inlet, 1/2 in male NPTF outlet
- 210 deg F maximum temperature rating
-
Alternative Part NumberD9300 OLP
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
Owners/User Manual
-
Catalog
