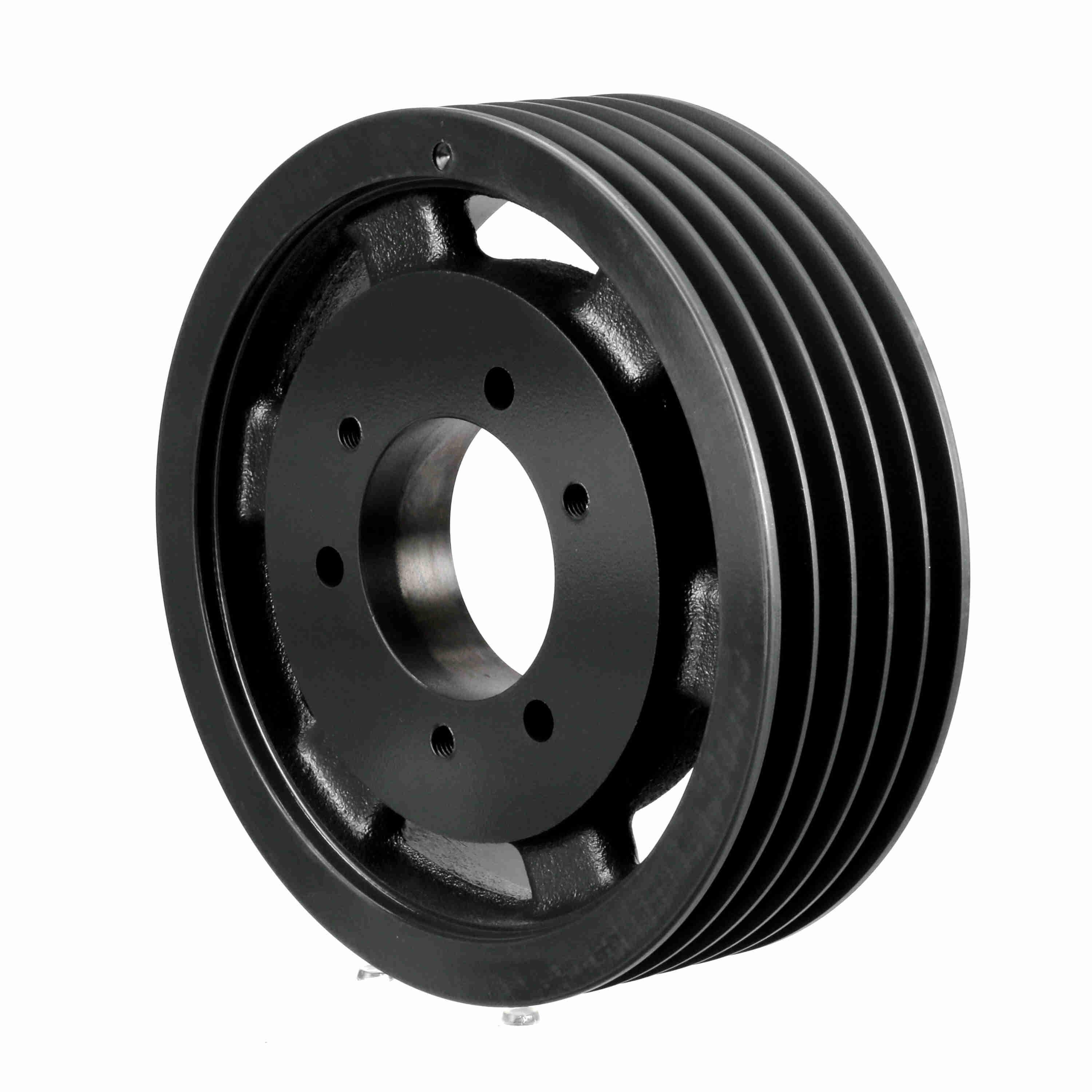

Browning® 1066182 Type A Arm Multiple Sheave, 0.88 to 3.5 in QD® Bore, 11.8 in OD, 5 Grooves, 11.7 in Dia Pitch, 3-3/4 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289383757
-
Manufacturer Part Number1066182
-
CountryUSA
-
Face Width3-3/4 in
-
Bushing TypeE
-
Pitch Diameter11.7 in
-
MaterialCast Iron
-
TypeType A Arm
-
Number of Grooves5
-
Outside Diameter11.8 in
-
Bore Diameter0.88 to 3.5 in
-
Bore TypeQD®
-
Suitable For Use WithGripBelt® 5V Cross Section V-Belt
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number55V1180E
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
