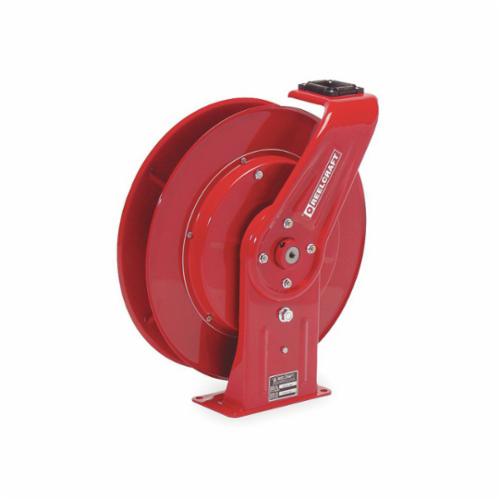

Reelcraft 3/8" X 50' PRESSURE WASH HOSE REEL REC PW-7600-OHP
Compact design and quality steel construction are incorporated into Reelcraft's line of pressure wash reels, rated up to 4500 psi. The reels can handle from 50 to 400 ft of hose and are complete with a high pressure water swivel for maximum product delivery.
-
BrandReelcraft®
-
UPC699567005681
-
Manufacturer Part NumberPW7600 OHP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating5000 psi
-
Reel Diameter19-3/4 in
-
Reel Width3-7/8 in
-
ColorRed
-
TypeHigh Pressure Spring Drive
-
Mounting TypeBench/Ceiling/Floor/Truck/Wall
-
Seal TypeAflas®
-
Series7000
-
Hose Capacity3/8 in ID x 0.73 in OD x 50 ft L
-
Dimensions20-1/4 in H x 19-3/4 in W x 7 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialNickel Plated Steel
- Designed to handle a broad range of pressures, temperatures and chemicals
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Individually powder coated components offer the maximum protection from premature corrosion
- Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight1/2 in female NPTF inlet
- 1/2 in female NPTF outlet
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
