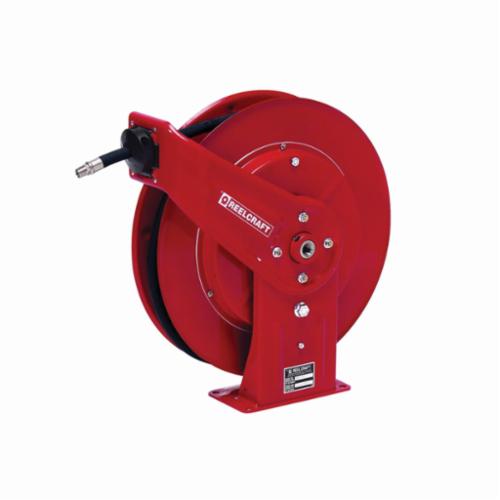

Reelcraft 3/8" X 50' OIL HOSE REELS REC 7650-OMP
Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high grade steel engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to three positions.
-
BrandReelcraft®
-
UPC699567001317
-
Manufacturer Part Number7650 OMP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Steel
-
Pressure Rating2600 psi
-
TypeFull Flow Swivel Heavy Duty
-
Seal TypeAflas®
-
Series7000
-
Hose Capacity3/8 in ID x 0.69 in OD x 50 ft L
-
Dimensions19 in L x 7 in W x 20-1/4 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
- Reinforced steel - the steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
- 1/2 in female NPTF inlet
- 1/2 in male NPTF outlet
- 210 deg F maximum temperature rating
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
