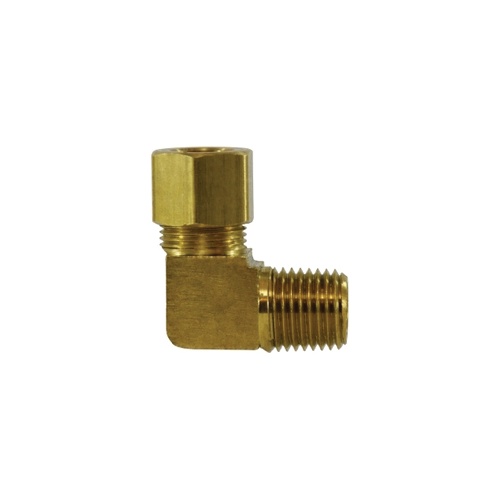

HCI Preferred Supplier 18235B 90 deg Tube-to-Pipe Elbow, 3/8 x 1/2 in Nominal, Compression x MNPTF End Style, CA360 Brass
HCI Preferred Supplier 18235B 90 deg Tube-to-Pipe Elbow, 3/8 x 1/2 in Nominal, Compression x MNPTF End Style, CA360 Brass
-
BrandGeneric
-
Manufacturer Part Number18235B
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialCA360 Brass
-
Fitting/Connector Type90 deg Elbow
-
Pressure Rating200 psi
-
Nominal Size3/8 x 1/2 in
-
End StyleCompression x MNPTF
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Barstock
- 0.94 in body size
-
UNSPSC40183101
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME and SAE 060202
-
