1/2" X 4" WEDGE BOLT ANCHORS PWR7246

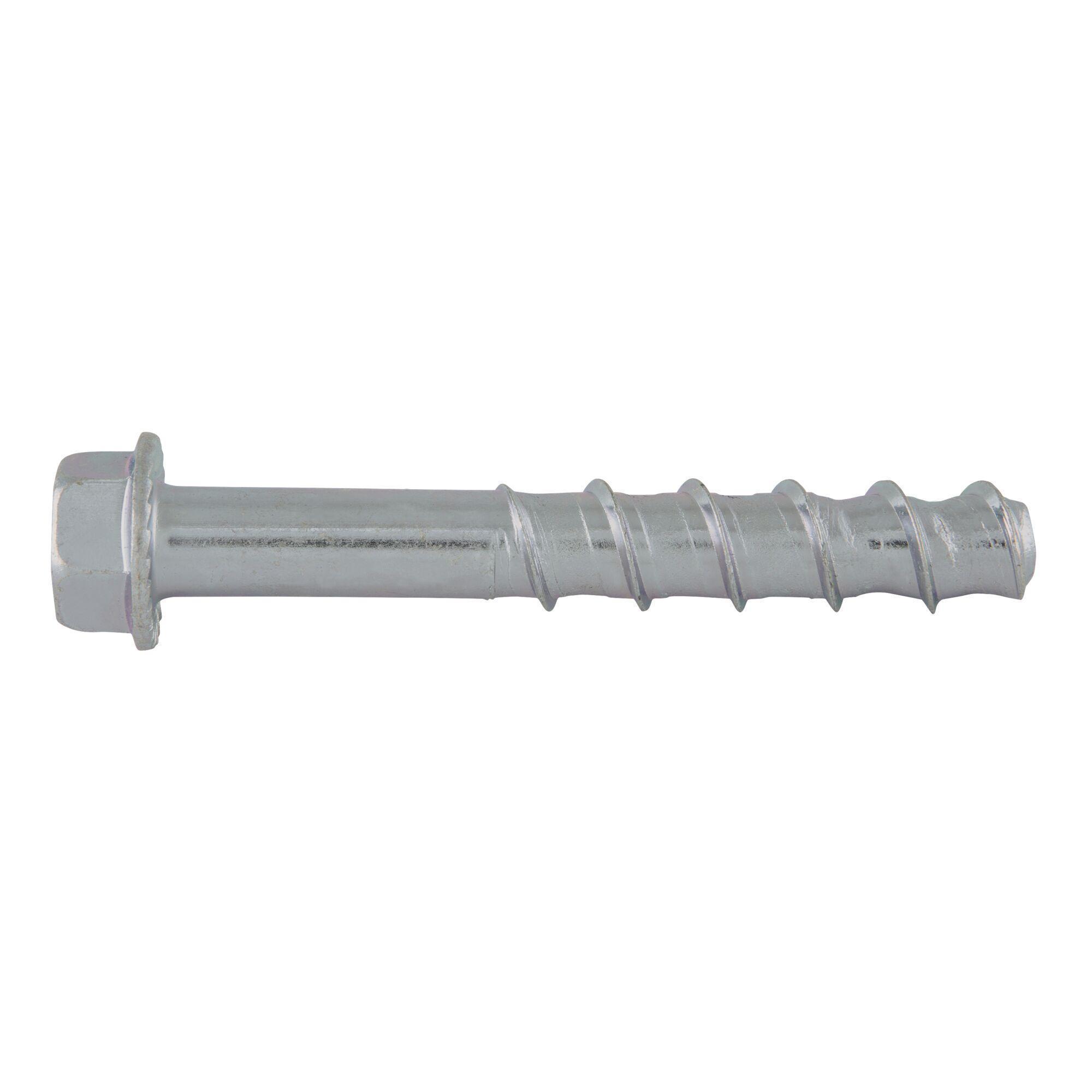

The Screw-Bolt+™ anchor is a one-piece, heavy duty Screw Anchor with a finished hex head or flat head (countersunk). It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ is available as bright zinc-plated or mechanically galvanized plating. Suitable base materials include normal-weight concrete.
-
BrandDeWALT®
-
UPC075352305042
-
Manufacturer Part NumberPFM1411420
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength4400 lb
-
MaterialCarbon Steel
-
Maximum Work Thickness2-1/4 in
-
Minimum Embedment Depth1-3/4 in
-
TypeHeavy Duty
-
Head Drive TypeHex Washer
-
Head Size31/64 in H
-
Applicable MaterialsNormal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry
-
Shear Strength10705 lb
-
Diameter1/2 in
-
Overall Length4 in
- Patented thread design offers low installation torque
- Low installation torque in concrete and masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and reinstallable in same hole

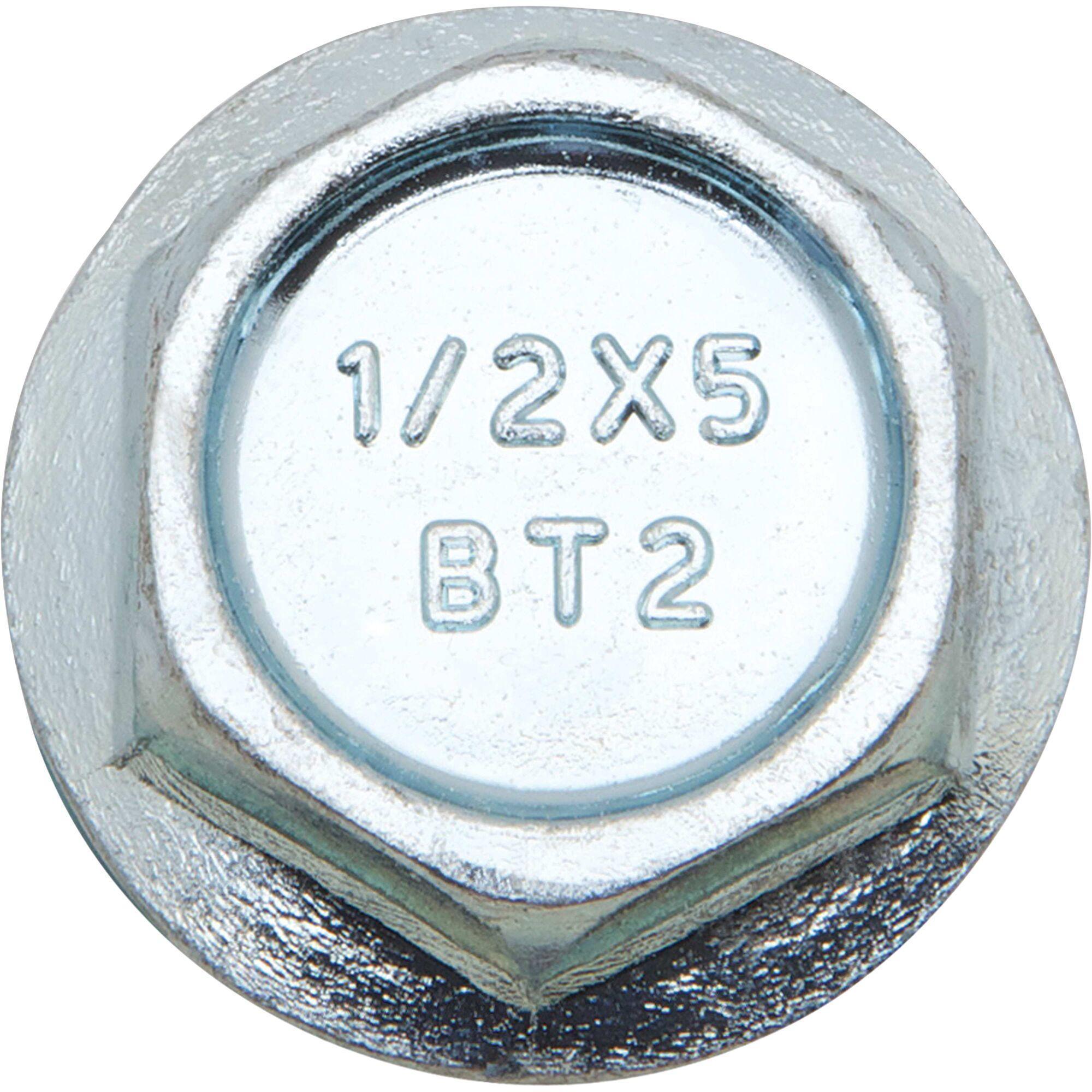

- Diameter, length and identifying marking stamped on head of each anchor
- Patented thread design offers toughened threads for tapping high strength concrete
- Universal product for concrete and grouted/solid masonry
- Can be installed closer to a free-edge than traditional expansion anchors
- Fast installation with powered impact wrench, but can also be installed manually
- One-piece, finished head design
- Quickly changes between 6 drivers to increase speed
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 11572555 |
-
Alternative Part Number15600487
-
UNSPSC31162104
-
IDEA Index ID15600487
-
Package Description50/BX
-
Standards/Approvals2018 IBC/IRC|2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 355.2|ASTM E488|ACI 318|ANSI Specified|Evaluated and Qualified by an Accredited Independent Testing Laboratory|ICC-ES ESR-3889|ICC-ES ESR-4042|ICC-ES AC193
-
