1/2" X 5" WEDGE BOLT ANCHORS PWR7248

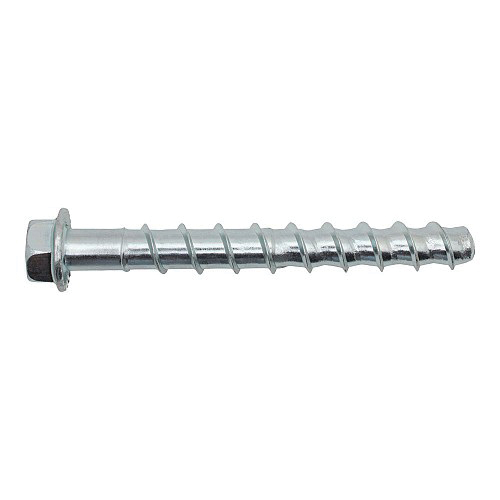

The Screw-Bolt+™ anchor is a one-piece, heavy duty Screw Anchor with a finished hex head or flat head (countersunk). It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ is available as bright zinc-plated or mechanically galvanized plating. Suitable base materials include normal-weight concrete.
-
BrandDeWALT®
-
UPC075352305059
-
Manufacturer Part NumberPFM1411460
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength4400 lb
-
MaterialCarbon Steel
-
Maximum Work Thickness3-1/4 in
-
Minimum Embedment Depth1-3/4 in
-
TypeHeavy Duty
-
Head Drive TypeHex Washer
-
Head Size31/64 in H
-
Applicable MaterialsNormal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry
-
Shear Strength10705 lb
-
Diameter1/2 in
-
Overall Length5 in
- Designed for standard ANSI tolerance drill bits
- Low installation torque in concrete and masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and reinstallable in same hole

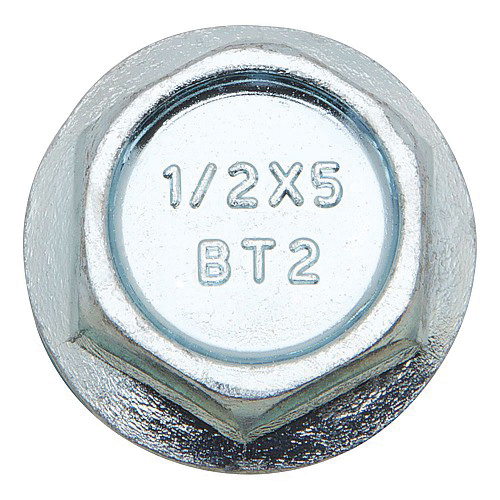

- Diameter, length and identifying marking stamped on head of each anchor
- Patented thread design offers toughened threads for tapping high strength concrete
- Universal product for concrete and grouted/solid masonry
- Can be installed closer to a free-edge than traditional expansion anchors

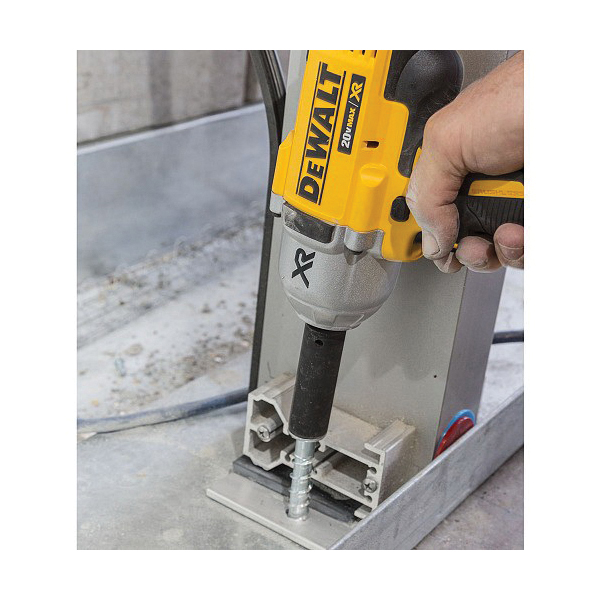

- Fast installation with powered impact wrench, but can also be installed manually
- One-piece, finished head design
- Ultimate load capacity: 2840 lb tensile strength when embedded in 2500 psi, 3115 lb tensile strength when embedded in 3000 psi, 3595 lb tensile strength when embedded in 4000 psi, 4400 lb tensile strength when embedded in 6000/8000 psi compressive strength concrete
- Ultimate load capacity - 5985 lb shear strength when embedded in 2500 psi, 6555 lb shear strength when embedded in 3000 psi, 7570 lb shear strength when embedded in 4000 psi, 9270 lb shear strength when embedded in 6000 psi and 10705 lb shear strength when embedded in 8000 psi compressive strength concrete
- Allowable load capacity - 710 lb tensile strength when embedded in 2500 psi, 780 lb tensile strength when embedded in 3000 psi, 900 lb tensile strength when embedded in 4000 psi and 1100 lb tensile strength when embedded in 6000/8000 psi compressive strength concrete
- Allowable load capacity - 1495 lb shear strength when embedded in 2500 psi, 1640 lb shear strength when embedded in 3000 psi, 1895 lb shear strength when embedded in 4000 psi, 2320 lb shear strength when embedded in 6000 psi and 2675 lb shear strength when embedded in 8000 psi compressive strength concrete
- Ultimate load capacity - 2840 lb tensile strength when embedded in 2500 psi, 3115 lb tensile strength when embedded in 3000 psi and 3595 lb tensile strength when embedded in 4000 psi compressive strength concrete at minimum edge
- Ultimate load capacity - 2040 lb shear strength when embedded in 2500 psi, 2220 lb shear strength when embedded in 3000 psi and 2580 lb shear strength when embedded in 4000 psi compressive strength concrete at minimum edge
- Allowable load capacity - 710 lb tensile strength when embedded in 2500 psi, 780 lb tensile strength when embedded in 3000 psi and 900 lb tensile strength when embedded in 4000 psi compressive strength concrete at minimum edge
- Allowable load capacity - 510 lb shear strength when embedded in 2500 psi, 555 lb shear strength when embedded in 3000 psi and 645 lb shear strength when embedded in 4000 psi compressive strength concrete at minimum edge
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 11572556 |
-
UNSPSC31162104
-
Package DescriptionEACH
-
Standards/Approvals2018 IBC/IRC|2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 355.2|ASTM E488|ACI 318|ANSI Specified|Evaluated and Qualified by an Accredited Independent Testing Laboratory|ICC-ES ESR-3889|ICC-ES ESR-4042|ICC-ES AC193
-
