NIBCO 2-1/2"X1-1/2" S-80 PVC SXT BUSHING NIB 838-291

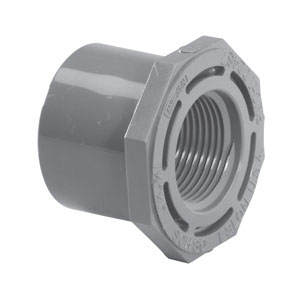

NIBCOĀ® 838-291 Flush Style Reducing Bushing, 2-1/2 x 1-1/2 in Nominal, Spigot x FNPT End Style, SCH 80/XH, PVC, Fluorocarbon Elastomer Seal, Domestic
-
BrandLascoĀ®
-
UPC025528796891
-
Manufacturer Part Number838-291
-
CountryUSA
-
MaterialPVC
-
Fitting/Connector TypeBushing
-
Method of ManufactureInjection-Molded
-
TypeFlush Style
-
Schedule RatingSCH 80/XH
-
Nominal Size2-1/2 x 1-1/2 in
-
Seal MaterialFluorocarbon Elastomer
-
Domestic/ImportDomestic
-
End StyleSpigot x FNPT
- ASTM D1784 - Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds, class 23447
- ASTM D2464 - Threaded poly vinyl chloride (PVC) plastic pipe fittings, SCH 80/XH
- NSF/ANSI standard 61, Annex G - Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953) NSF/ANSI standard 14 - plastics piping system components and related materials
- Do not use LascoĀ® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by LascoĀ®
- Fitting modification voids the warranty
- Sized with bushing
-
UNSPSC40174908
-
Package Description10/CTN
-
Standards/ApprovalsANSI Annex-G|ASTM D1784/D2464|NSF/ANSI 14/61
-
WarrantyLimited
-
Specification Sheet
